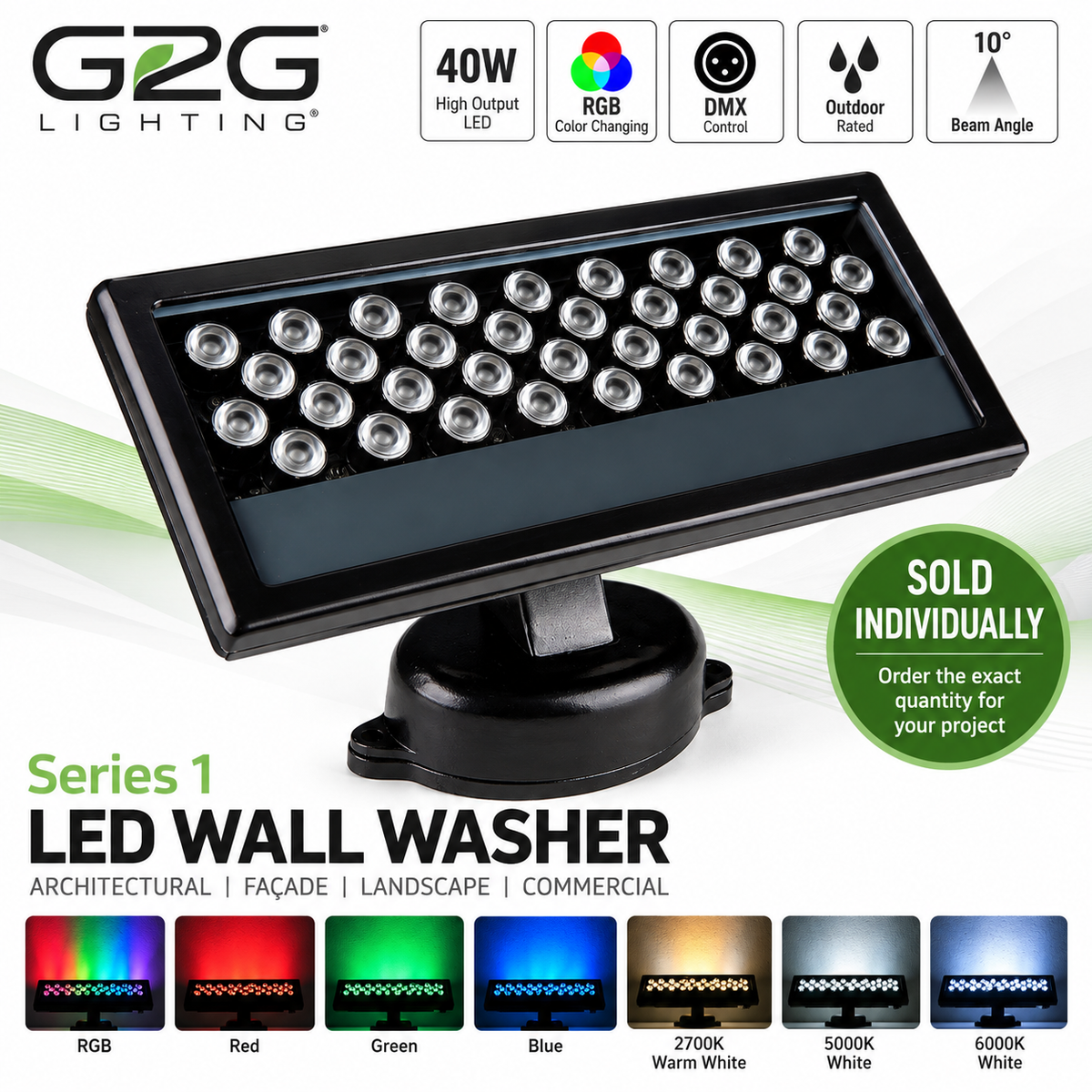

G2G Series 1 40W LED Wall Washer

The G2G Lighting Series 1 LED Wall Washer is a professional 40W architectural LED lighting fixture designed for building façades, exterior walls, architectural features, landscapes, gardens, commercial properties, signage environments, hospitality spaces, and other accent-lighting applications.

Series 1 Wall Washers are available in RGB, Red, Green, Blue, 2700K Warm White, 5000K White, and 6000K White. Fixtures are sold individually, allowing installers to order the exact number required for each project.

Available G2G Series 1 models include:

Architectural Wall-Washing Applications

The G2G Series 1 is designed to illuminate walls and architectural surfaces while highlighting building shapes, textures, façades, landscaping, and other visual features.

Ideal applications include building façade lighting, commercial exterior lighting, architectural wall washing, landscape and garden lighting, retail properties, hotels, restaurants, entertainment venues, signage environments, and architectural accent lighting.

RGB & DMX Lighting Control

The LWW00101 RGB Series 1 Wall Washer is designed for installations where color-changing and programmable architectural lighting effects are desired.

G2G Series 1 supports independent and DMX operation, allowing compatible installations to produce effects including color changes, fades, flashing, steady illumination, and synchronized lighting effects.

Multiple compatible fixtures can be incorporated into larger architectural lighting systems.

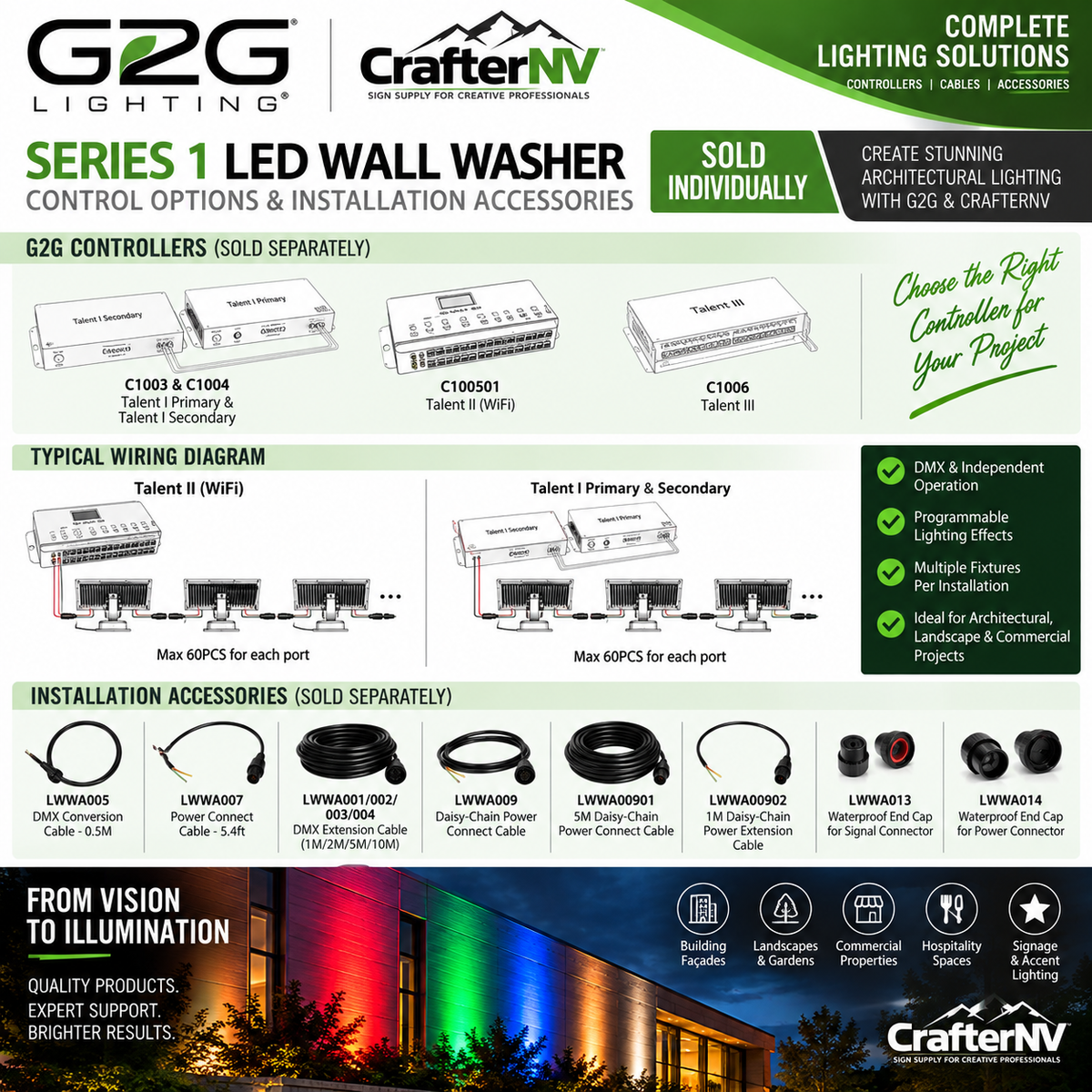

G2G Controllers – Sold Separately

G2G offers several control solutions for compatible programmable and color-changing lighting installations:

C1003 – Talent I Primary Controller
Primary controller for applicable G2G Talent I lighting systems.

C1004 – Talent I Secondary Controller
Secondary controller for applicable expanded Talent I installations.

C100501 – Talent II WiFi Controller
WiFi-enabled Talent II control option for compatible G2G lighting systems.

C1006 – Talent III Controller
Talent III controller for compatible G2G programmable lighting installations.

Controller requirements depend on the installation, number of fixtures, desired lighting effects, and method of control. Contact CrafterNV for assistance selecting the appropriate G2G controller for your project.

Compatible DMX & Connection Accessories

G2G offers compatible connection accessories for Series 1 installations, including:

LWWA001 – 1M DMX Extension Cable
LWWA002 – 2M DMX Extension Cable
LWWA003 – 5M DMX Extension Cable
LWWA004 – 10M DMX Extension Cable
LWWA005 – 0.5M DMX Conversion Cable
LWWA009 – Daisy-Chain Power Connect Cable
LWWA00901 – 5M Daisy-Chain Power Connect Cable
LWWA00902 – 1M Daisy-Chain Power Extension Cable
LWWA013 – Waterproof End Cap for Signal Connector
LWWA014 – Waterproof End Cap for Power Connector

Controllers, cables, and installation accessories are sold separately and are not included with the wall washer unless specifically stated.

Key Features

• Professional 40W architectural LED wall washer
• Sold individually
• RGB color-changing option
• Dedicated Red, Green, and Blue options
• 2700K Warm White, 5000K White, and 6000K White options
• Independent operation
• DMX-controlled lighting capability
• Programmable and synchronized lighting effects
• Multiple fixtures can be incorporated into larger installations
• Designed for architectural and building façade illumination
• Suitable for landscape and garden accent lighting
• G2G controllers available separately
• DMX extension and conversion cables available separately
• Daisy-chain power accessories available
• Waterproof connector accessories available

Need Help Building a G2G Lighting System?

Color-changing architectural lighting projects may require additional controllers, cables, and connection accessories depending on the installation.

Contact CrafterNV for assistance matching your Series 1 Wall Washers with the appropriate G2G controller and connection components.

Frequently Asked Questions

What is the G2G Series 1 LED Wall Washer?

The G2G Series 1 is a 40W architectural LED wall-washing system designed for illuminating building façades, walls, landscapes, gardens, architectural features, and commercial properties.

How are G2G Series 1 Wall Washers sold?

CrafterNV sells G2G Series 1 Wall Washers in cases of 4 fixtures.

Which G2G Series 1 Wall Washer is RGB?

G2G part number LWW00101 is the RGB Series 1 40W LED Wall Washer.

What white color temperatures are available?

Series 1 is available in:

• 2700K Warm White – LWW001W
• 5000K White – LWW001N
• 6000K White – LWW001C

What solid colors are available?

Dedicated color options include:

• Red – LWW001R
• Green – LWW001G
• Blue – LWW001B

An RGB color-changing version is available as LWW00101.

Can G2G Series 1 Wall Washers be DMX controlled?

Yes. G2G specifies independent and DMX operating modes for the Series 1 system. DMX operation can provide programmable and synchronized color-changing effects in compatible installations. G2G Lighting

Does the wall washer include a controller?

Controllers should be treated as separate components unless specifically included in a configured system. G2G controller options include C1003, C1004, C100501, and C1006.

Which controller do I need?

Controller selection depends on the number of fixtures, installation configuration, and desired method of control. Contact CrafterNV before ordering if assistance is needed selecting a G2G controller.

Are extension cables available?

Yes. G2G offers Series 1 DMX extension cables in multiple lengths along with DMX conversion, power connection, daisy-chain, and waterproof connector accessories.
