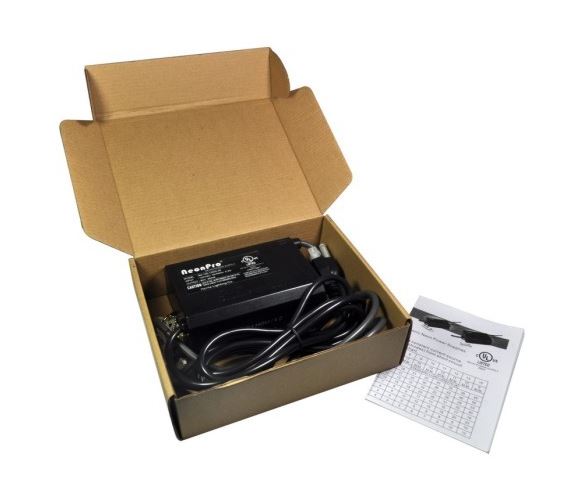

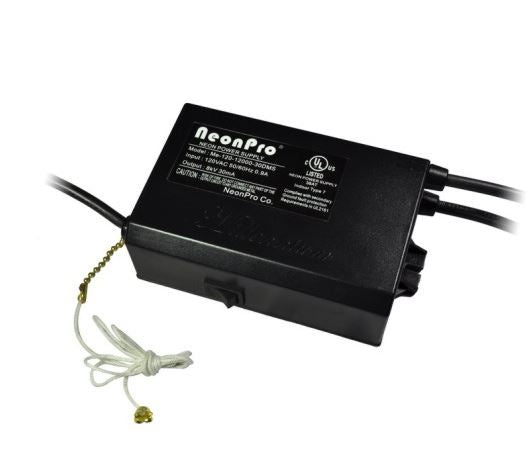

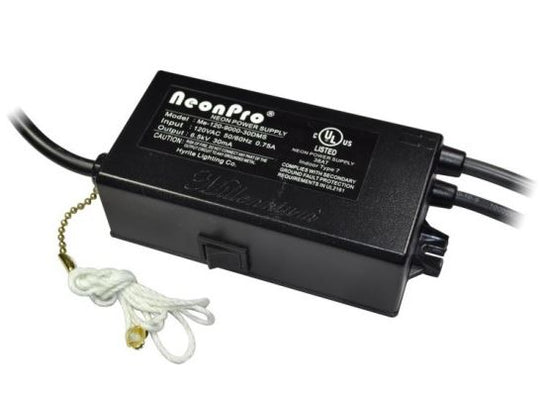

12/30 120v PoweRLink ME-120-12000-30 NeonPro Window Transformer

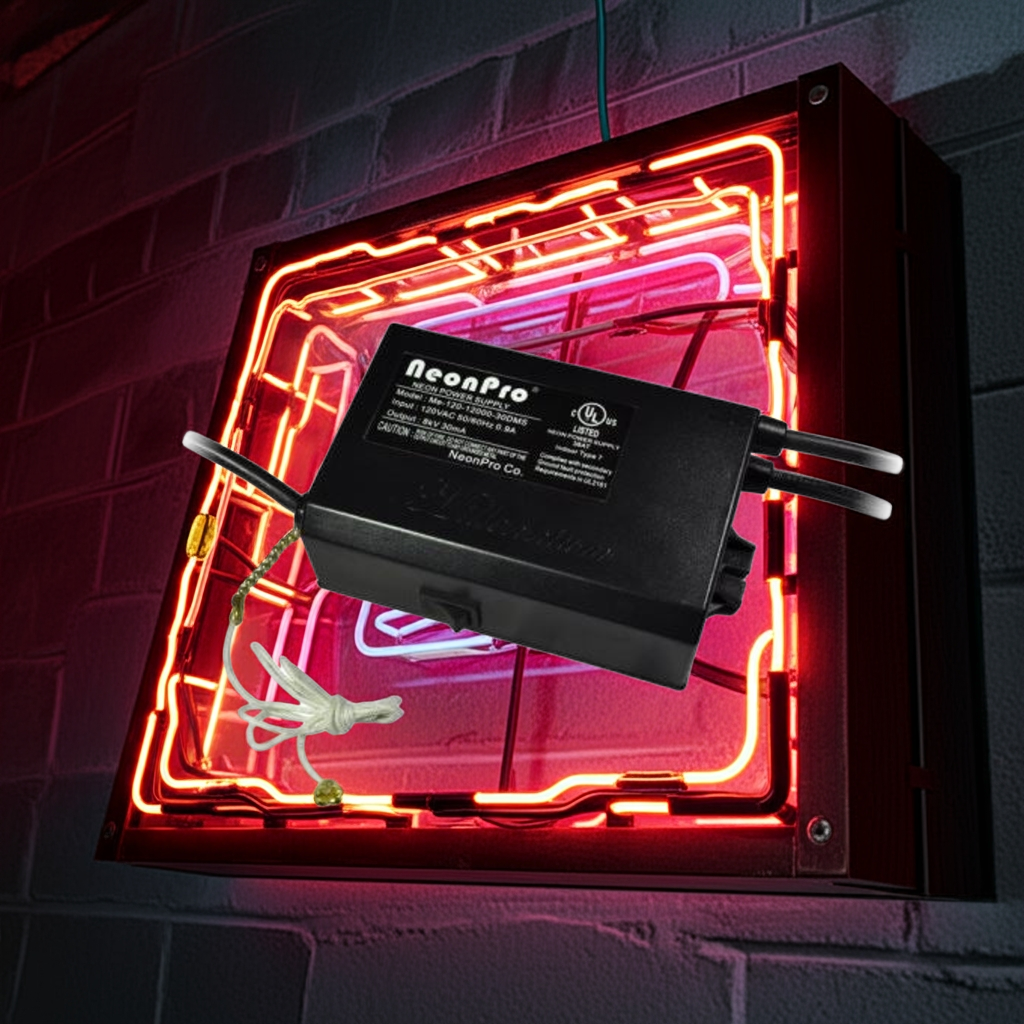

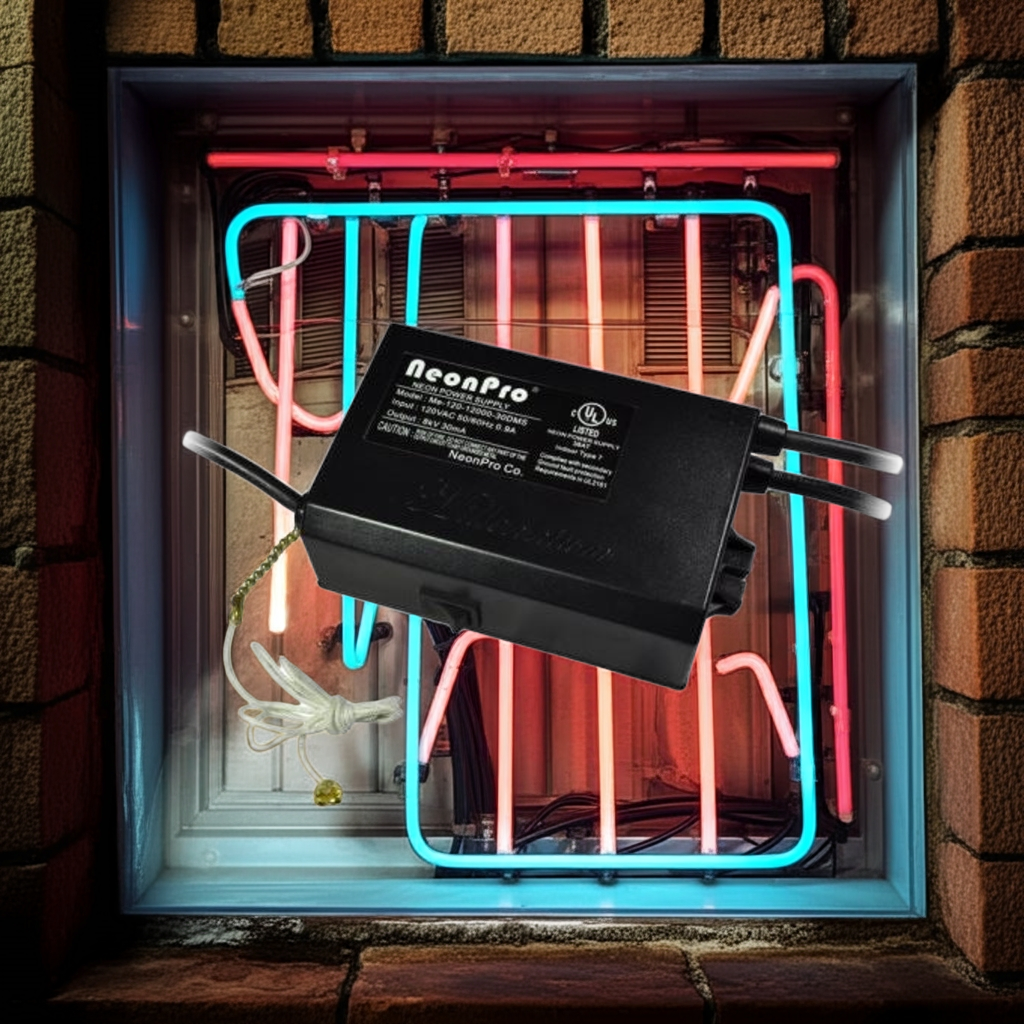

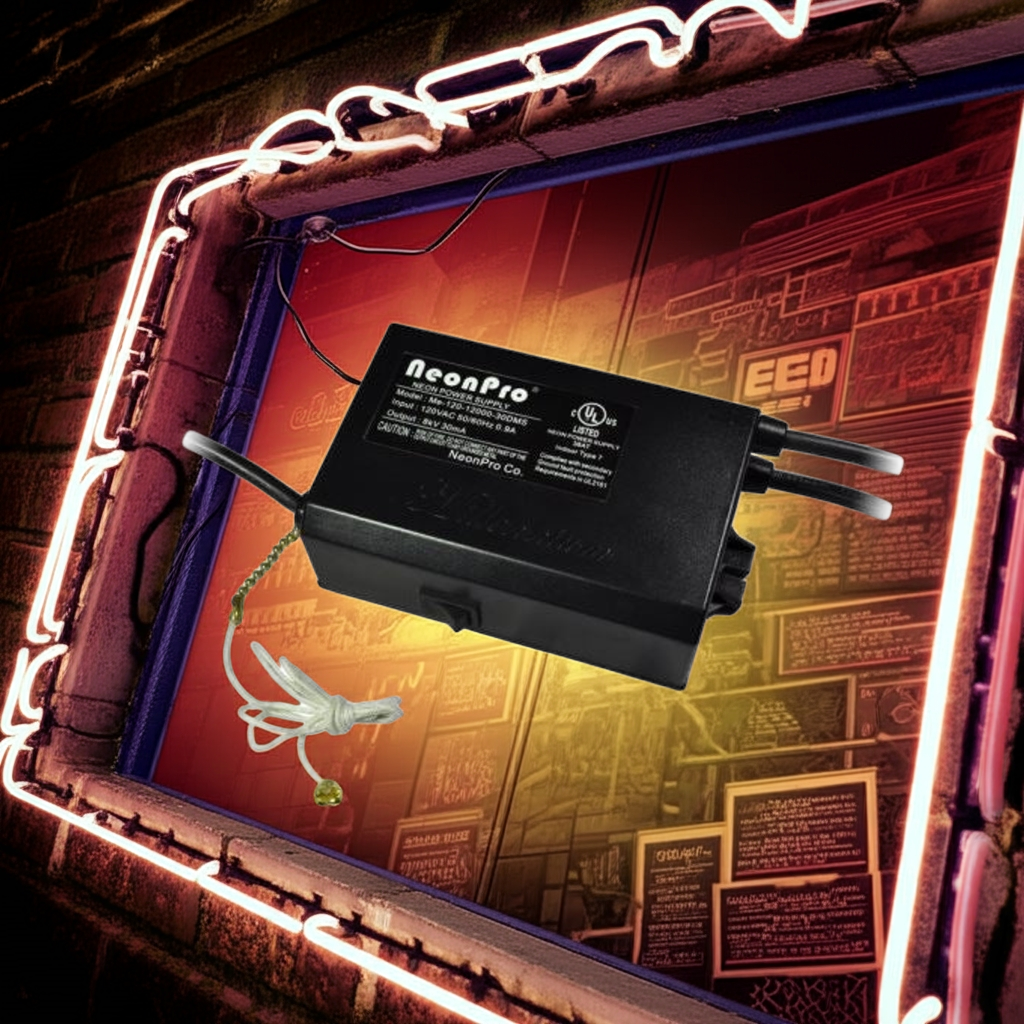

The 12/30 120v PoweRLink ME-120-12000-30 NeonPro Window Transformer is the ideal solution for powering neon window signs with reliability and ease. Designed for dry or damp indoor locations, this UL 2161-listed neon power supply ensures safe and efficient operation.
Features:
- 12000v 30mA Output: Perfect for vibrant and consistent illumination of neon window signs.
- Pull Chain Switch: Convenient control for easy operation, specifically designed for window signage.
- Ground-Fault Protection: Includes built-in safety features to prevent hazards and ensure safe operation.
- Open Circuit Protection: Safeguards against damage to the transformer and connected neon signs.
- Indoor Type 7 Design: Suitable for dry and damp locations, meeting indoor application standards.
- AC Plug-In Ready: Easy to install with a standard AC plug for quick setup.
This NeonPro Window Transformer delivers the performance and safety you need for neon window signs, making it an excellent choice for storefront displays, promotional signage, and more. Invest in quality and reliability with the PoweRLink ME-120-12000-30.
| Model no. | Me-120-12000-30(DMS/FL) |
|---|---|
| Weight(kg) | 1.0000 |
| Installation | Outdoor rainproof |
| Input voltage | 120VAC 50/60Hz |
| Max. output power | 108W |
| Output voltage | 12000V |
| Max. output current | 30mA |
| Max loading for Ф12mm clear neon tube | 8.1m (or 27ft) with electrode |
| Max loading for Ф12mm mercury filled tube | 9.8m (or 32ft) with electrode |
| Power factor | >0.9 |
| Efficiency | >0.95 |
| Operating temperature | -25~40℃ |
| Over voltage protection | triggered @120% rated output voltage |
| Cooling | Free air convection |
| Certificates/standards | UL 2161 listed |
| Life Time(hrs,ta=25℃) | 50,000 hrs |
| Dimensions(L*W*H) | 158.5*97*48.2mm |
| Connection input/output | Input 1.8m(6ft) power cord with plug, output 0.6m(2ft) GTO-15 |
| Packing information | 10pcs / carton G.W.13kg |
