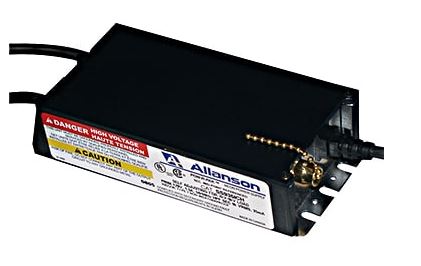

Allanson SS1235ICH POW-R-PAK Indoor Neon Power Supply – 2–12 kV / 35 mA

This Allanson indoor neon power supply is designed for professional neon and skeleton-tubing sign applications requiring a 2–12 kV / 35 mA output range from a 120V primary supply.

Key Features & Benefits

• 2–12 kV / 35 mA neon power-supply range
• 120V primary input
• Designed for indoor neon / skeleton-tubing applications
• Solid-state design for compact sign installations
• Allanson POW-R-PAK family
• SGFI ground-fault and open-circuit protection
• UL Listed and CSA Approved
• Compact approximately 3 in W x 6 in L x 1.5 in H housing
• 24 in leads with sleeveless GTO-15

Common Applications

Indoor neon signs, skeleton tubing, point-of-purchase neon and compatible sign-service replacement applications.

Selection & Installation Guidance

Neon transformers and electronic power supplies must be matched to the connected tube footage, tube diameter, gas, wiring method and required secondary voltage/current. Verify the existing sign load and Allanson loading requirements before replacement. Installation should be performed by qualified sign/electrical personnel.

Frequently Asked Questions

Is this for LED signs?
No. This product is intended for compatible neon tubing systems.

What primary voltage does it use?
This listing is for a 120V primary-input model.
