9/30 120v PoweRLink ME-120-9000-30

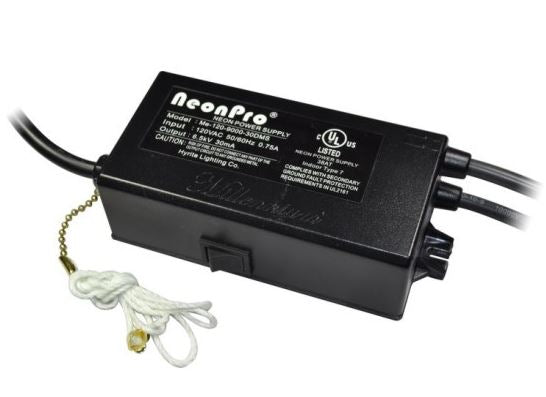

9/30 120v PoweRLink ME-120-9000-30 NeonPro Window Transformer
The 9/30 120v PoweRLink ME-120-9000-30 NeonPro Window Transformer is a reliable and efficient power source for neon window signs, designed for both dry and damp indoor environments. This UL 2161-listed neon power supply ensures safety and consistent performance.
Features:
- 9000v 30mA Output: Provides bright and uniform illumination, perfect for neon window signage.
- Pull Chain Switch: Convenient and user-friendly, tailored for window sign applications.
- Ground-Fault Protection: Ensures safety by protecting against electrical hazards.
- Open Circuit Protection: Prevents damage to the transformer and connected neon signs for long-term reliability.
- Indoor Type 7 Design: Engineered for use in dry and damp locations, meeting all indoor application standards.
- AC Plug-In Ready: Simplifies installation with a standard AC plug for hassle-free setup.
This NeonPro Window Transformer offers dependable performance and safety features, making it the perfect choice for neon window signs in retail stores, restaurants, or any indoor setting. Illuminate your signage with the quality and reliability of the PoweRLink ME-120-9000-30.
| Model no. | Me-120-9000-30(DMS/FL) |
|---|---|
| Weight(kg) | 0.8000 |
| Installation | Outdoor rainproof |
| Input voltage | 120VAC 50/60Hz |
| Max. output power | 90W |
| Output voltage | 9000V |
| Max. output current | 30mA |
| Max loading for Ф12mm clear neon tube | 6m (or 18ft) with electrode |
| Max loading for Ф12mm mercury filled tube | 7.2m (or 24ft) with electrode |
| Power factor | >0.9 |
| Efficiency | >0.95 |
| Operating temperature | -25~40℃ |
| Over voltage protection | triggered @120% rated output voltage |
| Cooling | Free air convection |
| Certificates/standards | UL 2161 listed |
| Life Time(hrs,ta=25℃) | 50,000 hrs |
| Dimensions(L*W*H) | 147*67*43mm |
| Connection input/output | Input 1.8m(6ft) power cord with plug, output 0.6m(2ft) GTO-15 |
| Packing information | 10pcs / carton G.W.8.5kg |
