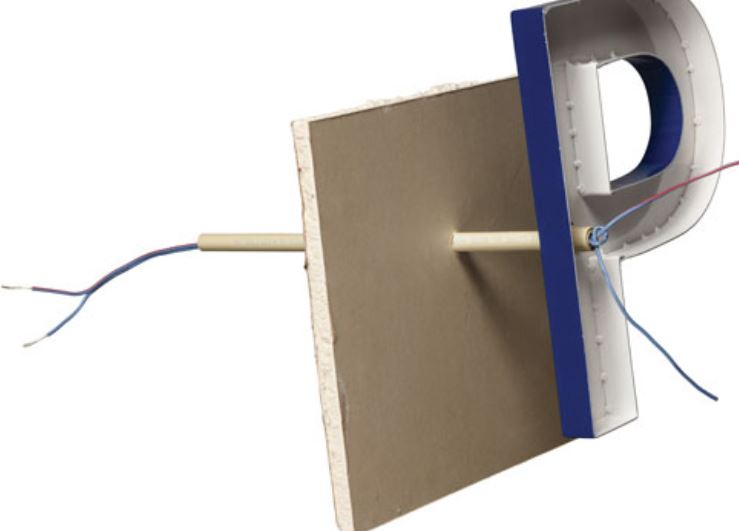

Paige Wall Buster® Through-Wall Wiring Protection Device – 14" & 30" – UL Listed for Plenum & Wet Locations

The Paige Wall Buster® is the ultimate through-wall wiring protection device, designed to simplify installations, reduce labor costs, and eliminate wiring failures for LED channel letters, signage, and low-voltage cable applications. Now available in a Plenum-rated version, it can be used in all existing applications plus areas requiring Low Smoke and Plenum air handling compliance.

With a snap-fit design, the Wall Buster® installs in seconds instead of minutes or hours, eliminating the need for large wall holes. Its smooth, injection-molded construction prevents sharp metal edges from damaging insulated conductors, ensuring long-term wire protection and compliance with electrical codes.

Key Features:

• Fast & Easy Installation: Snap-fit design reduces labor time significantly compared to traditional methods.
• Cost-Effective: Less expensive than current alternatives, lowering both material and labor costs.
• Minimizes Wall Damage: Requires only 9/16-inch holes, eliminating the need for large wall openings.
• Superior Wire Protection: No sharp metal edges in contact with insulated conductors, reducing the risk of failures.
• Code Compliance Made Easy: UL Listed and designed specifically for LED channel letters and signage.
• Plenum-Rated & Wet Location Approved: Safe for use in Plenum air handling spaces and outdoor environments.

Specifications:

• Lengths Available: 14" & 30"
• UL Listed: Plenum - Wet Listed
• Construction: Injection-molded locking bushing & extruded locking tube
• Application: Designed for CL2-driven low-voltage cables

Applications:

• LED channel letters & signage installations
• Commercial and architectural lighting projects
• Low-voltage cable protection for indoor and outdoor environments
• Plenum space installations requiring Low Smoke compliance

The Paige Wall Buster® revolutionizes through-wall wiring by making installations faster, safer, and more cost-effective. Whether for LED signage or low-voltage cabling, this UL-listed device ensures compliance, durability, and ease of use in any environment.

SPEC SHEET
