Please allow approximately 10–14 days for arrival, with a 5–7-day processing time. All striping rolls are custom cut and NON-REFUNDABLE.
3M 5100R Scotchlite Reflective Striping in Blue gives vehicle accents, sign borders and cut graphics a glossy retroreflective finish. The enclosed-lens engineer-grade film returns light toward its source and combines flexibility with removable adhesive for professional graphic applications.
Features & Benefits
- 7 mil retroreflective film for visible accent lines and graphics
- Gloss finish with clear, pressure-sensitive removable adhesive
- Designed for flat surfaces, simple curves and compatible applications over rivets
- Supports computer cutting for lettering, decals and striping
- Indoor and outdoor graphic applications; supplier lists seven-year outdoor durability under applicable conditions
Applications & Compatibility
Use for compatible vehicle markings, emblems, decals, commercial graphics and non-regulated signs. Select the material for the actual substrate and graphic construction. This product listing does not establish compliance with a regulated traffic-sign or vehicle-conspicuity specification. It is adhesive graphic film for hard surfaces, not heat-transfer material for garments.
Specifications
| Brand / series | 3M 5100R Scotchlite |
|---|---|
| Color | Blue |
| Construction | Enclosed-lens, engineer-grade retroreflective film |
| Film thickness | 7 mil |
| Finish | Gloss |
| Adhesive | Clear, removable; removal up to three years under specified conditions |
| Conformability | Flat surfaces, simple curves and rivets |
| Application temperature | At least 50°F without rivets; 55°F with rivets |
| Application method | Dry application; wet application is not recommended |
| Roll configuration | Unpunched |
| Print processing | Screen and thermal transfer; not a general solvent, latex or UV inkjet film |

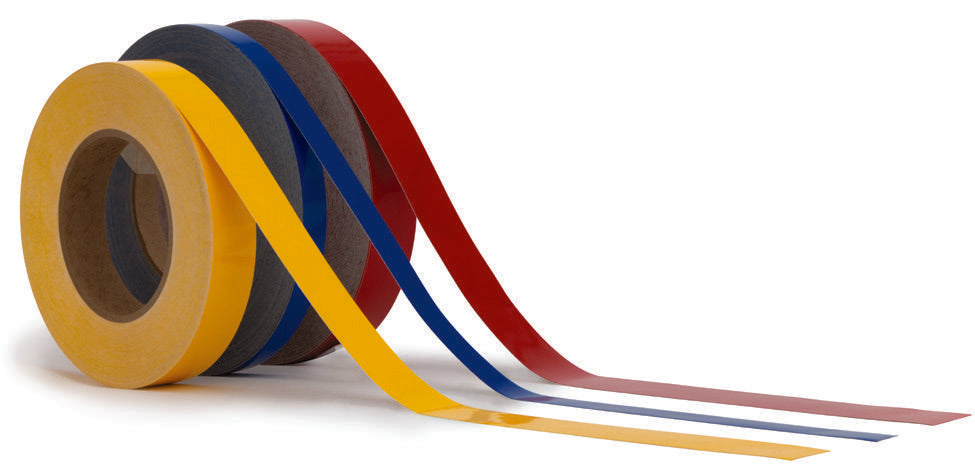

Choose Your Roll
Select the stripe width and roll length shown in the size menu. A 10-yard roll contains 30 feet; a 50-yard roll contains 150 feet. Narrow widths suit pinstripes and fine borders, while wider widths suit bolder accents and cut details. Measure the full design and allow material for positioning and trimming. Only available options can be ordered.
Unpunched rolls: These options have solid edges and are intended for compatible friction-feed equipment or direct stripe application. They do not have sprocket-feed holes. Confirm your cutter can handle the selected roll width; narrow rolls may require a suitable carrier or direct application. This listing does not offer punched material.
Application & Care
- Check that the substrate and existing finish are suitable. Clean and dry the surface thoroughly, removing wax, grease and other contamination.
- Measure and align the stripe before exposing the adhesive. Apply using firm, even squeegee pressure and the specified dry application method.
- Test cutting and transfer settings on a small piece when using a cutter; settings vary by equipment, blade and design.
- After installation, clean gently with a mild cleaner compatible with the film and substrate. Avoid abrasives, aggressive solvents and lifting the edges. Follow the manufacturer’s guidance for the finished graphic.
Frequently Asked Questions
Does reflective film glow in the dark?
No. Retroreflective film returns incoming light toward its source; it does not store light like photoluminescent film.
Is the adhesive permanent?
No. This series has removable adhesive, with removal performance subject to the manufacturer’s specified time, substrate and service conditions.
Can I apply it with water?
No. Use the specified dry application method and meet the minimum application temperature.
Can I return a custom-cut roll?
These striping rolls are custom cut and non-refundable. Confirm color, width, length and compatibility before ordering.
Please allow approximately 10–14 days for arrival, with a 5–7-day processing time. All striping rolls are custom cut and NON-REFUNDABLE.
3M 5100R Scotchlite Reflective Striping in Blue gives vehicle accents, sign borders and cut graphics a glossy retroreflective finish. The enclosed-lens engineer-grade film returns light toward its source and combines flexibility with removable adhesive for professional graphic applications.
Features & Benefits
- 7 mil retroreflective film for visible accent lines and graphics
- Gloss finish with clear, pressure-sensitive removable adhesive
- Designed for flat surfaces, simple curves and compatible applications over rivets
- Supports computer cutting for lettering, decals and striping
- Indoor and outdoor graphic applications; supplier lists seven-year outdoor durability under applicable conditions
Applications & Compatibility
Use for compatible vehicle markings, emblems, decals, commercial graphics and non-regulated signs. Select the material for the actual substrate and graphic construction. This product listing does not establish compliance with a regulated traffic-sign or vehicle-conspicuity specification. It is adhesive graphic film for hard surfaces, not heat-transfer material for garments.
Specifications
| Brand / series | 3M 5100R Scotchlite |
|---|---|
| Color | Blue |
| Construction | Enclosed-lens, engineer-grade retroreflective film |
| Film thickness | 7 mil |
| Finish | Gloss |
| Adhesive | Clear, removable; removal up to three years under specified conditions |
| Conformability | Flat surfaces, simple curves and rivets |
| Application temperature | At least 50°F without rivets; 55°F with rivets |
| Application method | Dry application; wet application is not recommended |
| Roll configuration | Unpunched |
| Print processing | Screen and thermal transfer; not a general solvent, latex or UV inkjet film |
Choose Your Roll
Select the stripe width and roll length shown in the size menu. A 10-yard roll contains 30 feet; a 50-yard roll contains 150 feet. Narrow widths suit pinstripes and fine borders, while wider widths suit bolder accents and cut details. Measure the full design and allow material for positioning and trimming. Only available options can be ordered.
Unpunched rolls: These options have solid edges and are intended for compatible friction-feed equipment or direct stripe application. They do not have sprocket-feed holes. Confirm your cutter can handle the selected roll width; narrow rolls may require a suitable carrier or direct application. This listing does not offer punched material.
Application & Care
- Check that the substrate and existing finish are suitable. Clean and dry the surface thoroughly, removing wax, grease and other contamination.
- Measure and align the stripe before exposing the adhesive. Apply using firm, even squeegee pressure and the specified dry application method.
- Test cutting and transfer settings on a small piece when using a cutter; settings vary by equipment, blade and design.
- After installation, clean gently with a mild cleaner compatible with the film and substrate. Avoid abrasives, aggressive solvents and lifting the edges. Follow the manufacturer’s guidance for the finished graphic.
Frequently Asked Questions
Does reflective film glow in the dark?
No. Retroreflective film returns incoming light toward its source; it does not store light like photoluminescent film.
Is the adhesive permanent?
No. This series has removable adhesive, with removal performance subject to the manufacturer’s specified time, substrate and service conditions.
Can I apply it with water?
No. Use the specified dry application method and meet the minimum application temperature.
Can I return a custom-cut roll?
These striping rolls are custom cut and non-refundable. Confirm color, width, length and compatibility before ordering.
