G2G Lighting Series 7 LED Wall Washer provides architectural accent lighting for building facades, exterior walls, columns, garden features and landscape structures. Select either the 40W or 95W fixture configuration and choose the light output that fits your project. Manufacturer part numbers and prices update by selection.

Designed for architectural facade and landscape lighting

The Series 7 family is intended to illuminate architectural details and outdoor features. G2G documents stand-alone and DMX lighting control with programmable color-changing effects, including fixed colors, fading, flashing and synchronized multi-fixture effects. For a coordinated installation, choose the fixture and compatible controller, cabling and connectors based on the actual project layout.

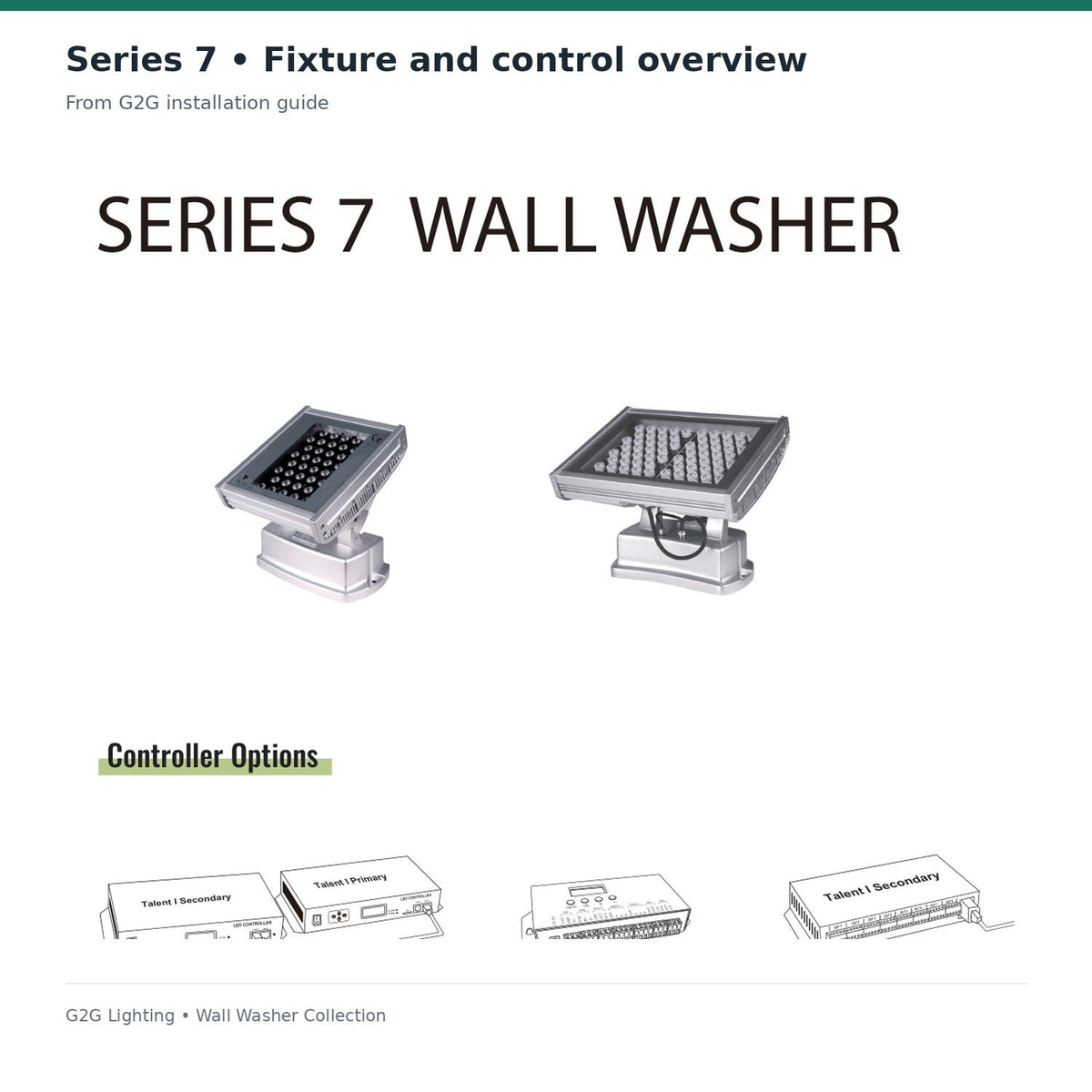

Series 7 wall washer options

• 40W fixture: LWW009 series; available in RGB, Blue, Green, Red, 2700K warm white, 5000K white and 6000K white.
• 95W fixture: LWW010 series; available in RGB, Blue, Green, Red, 2700K warm white, 5000K white and 6000K white.
• Outdoor construction: G2G's Series 7 documentation identifies an aluminum-alloy housing and IP65 protection.
• Control options: Stand-alone or DMX operation, with compatible controllers and wiring purchased separately.
• Power: G2G's Series 7 documentation lists 110–240V AC input and 48V DC operating voltage. Follow the installation manual for the exact model.

Dimensions and installation planning

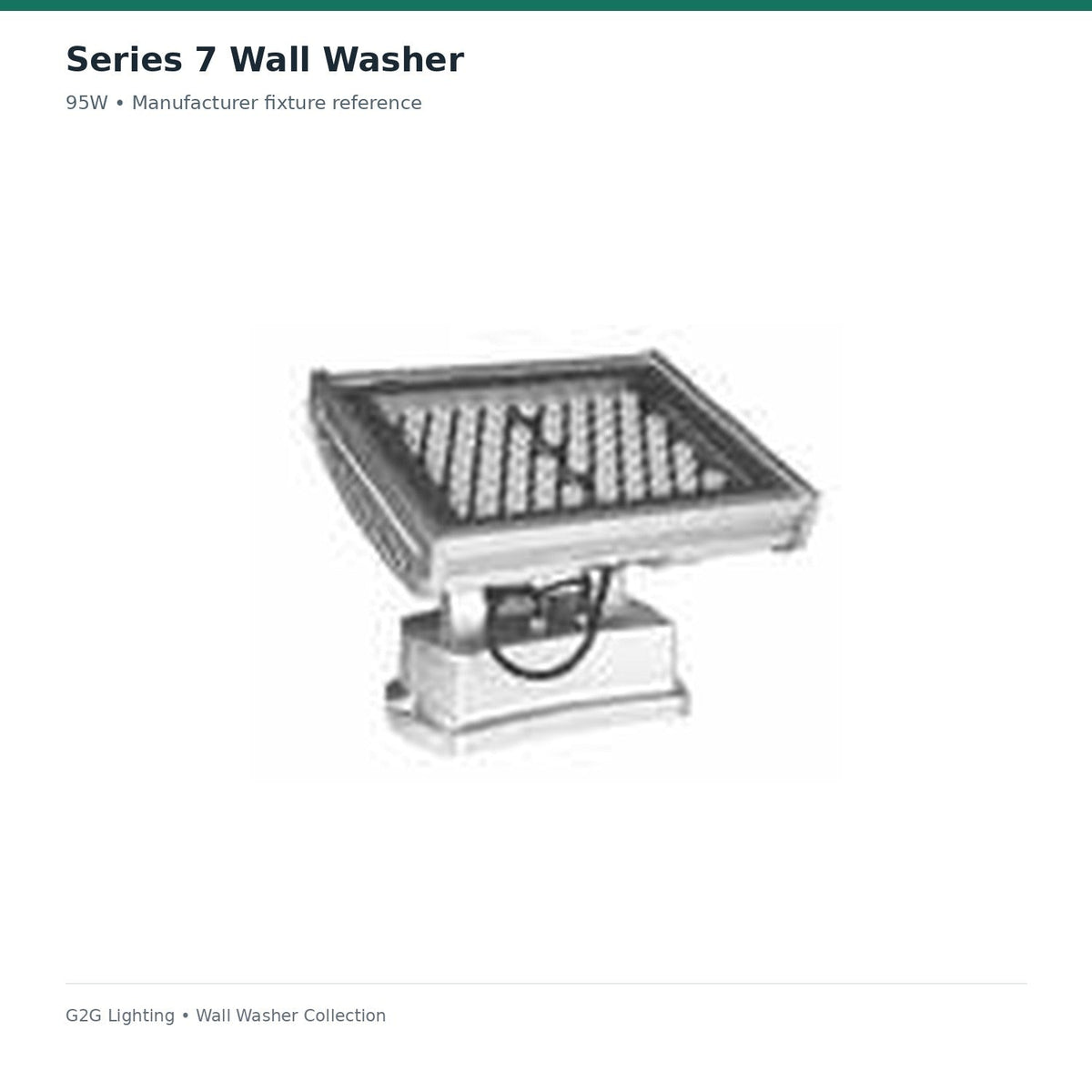

95W manufacturer specification: G2G's Series 7 sheet lists the 95W G2GLWW-7-36P housing at 270 mm long × 320 mm wide × 300 mm high (approximately 10.63 × 12.60 × 11.81 inches), with a nominal fixture weight of 10 kg ±5%. Confirm the exact LWW010 ordering code matches this configuration before relying on the dimensions for installation.

40W configuration: Fixture-specific physical dimensions are not confirmed by the Series 7 specification sheet. Do not use wholesale case dimensions as installation clearances. Refer to the final fixture drawing for mounting and available space.

Controllers, cables and waterproof connectors

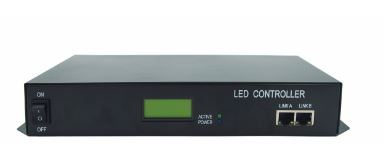

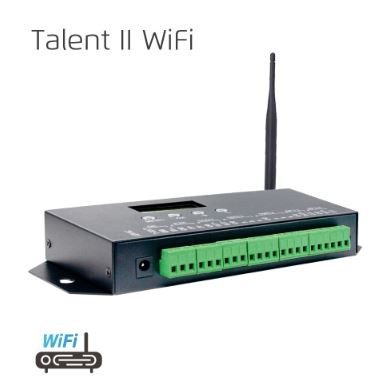

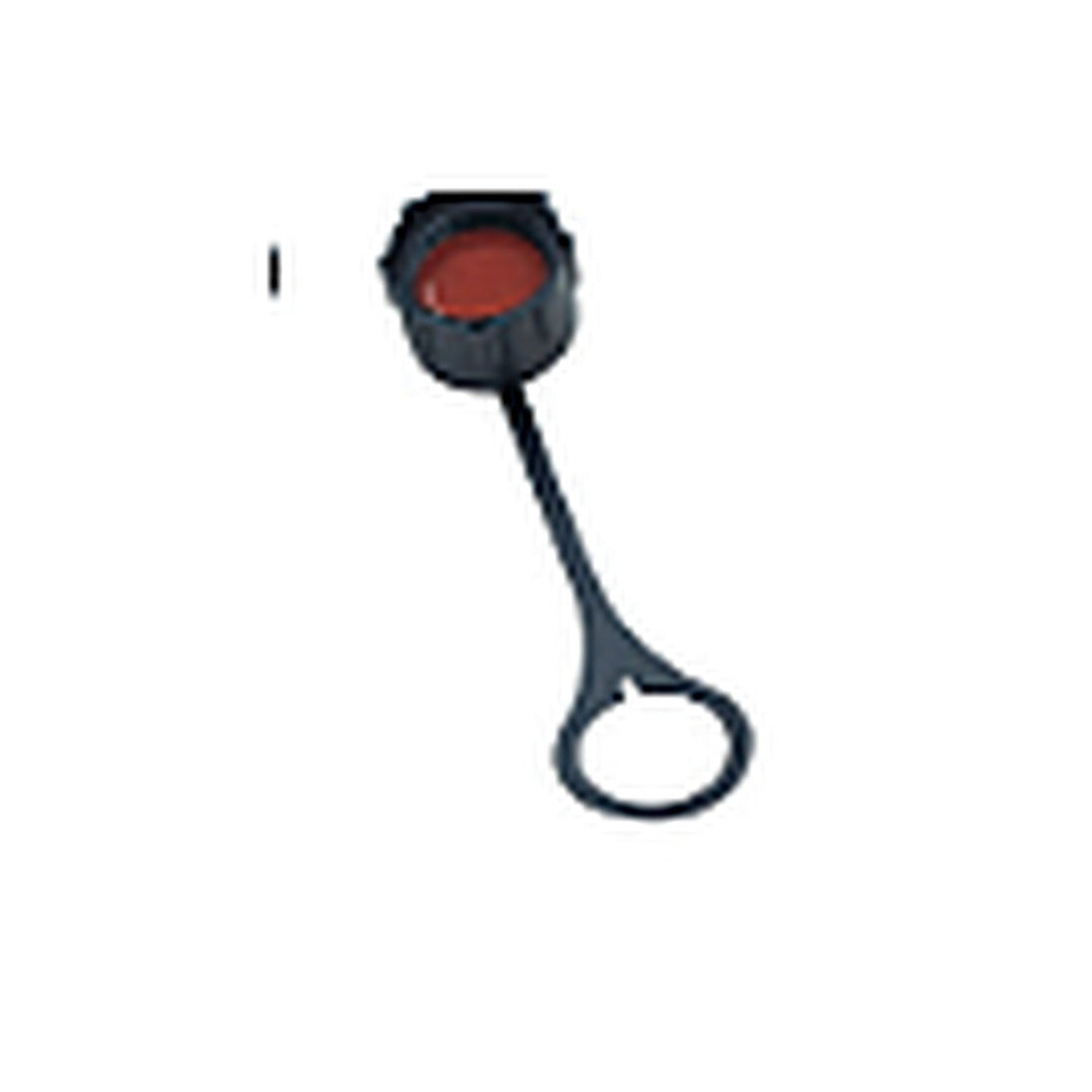

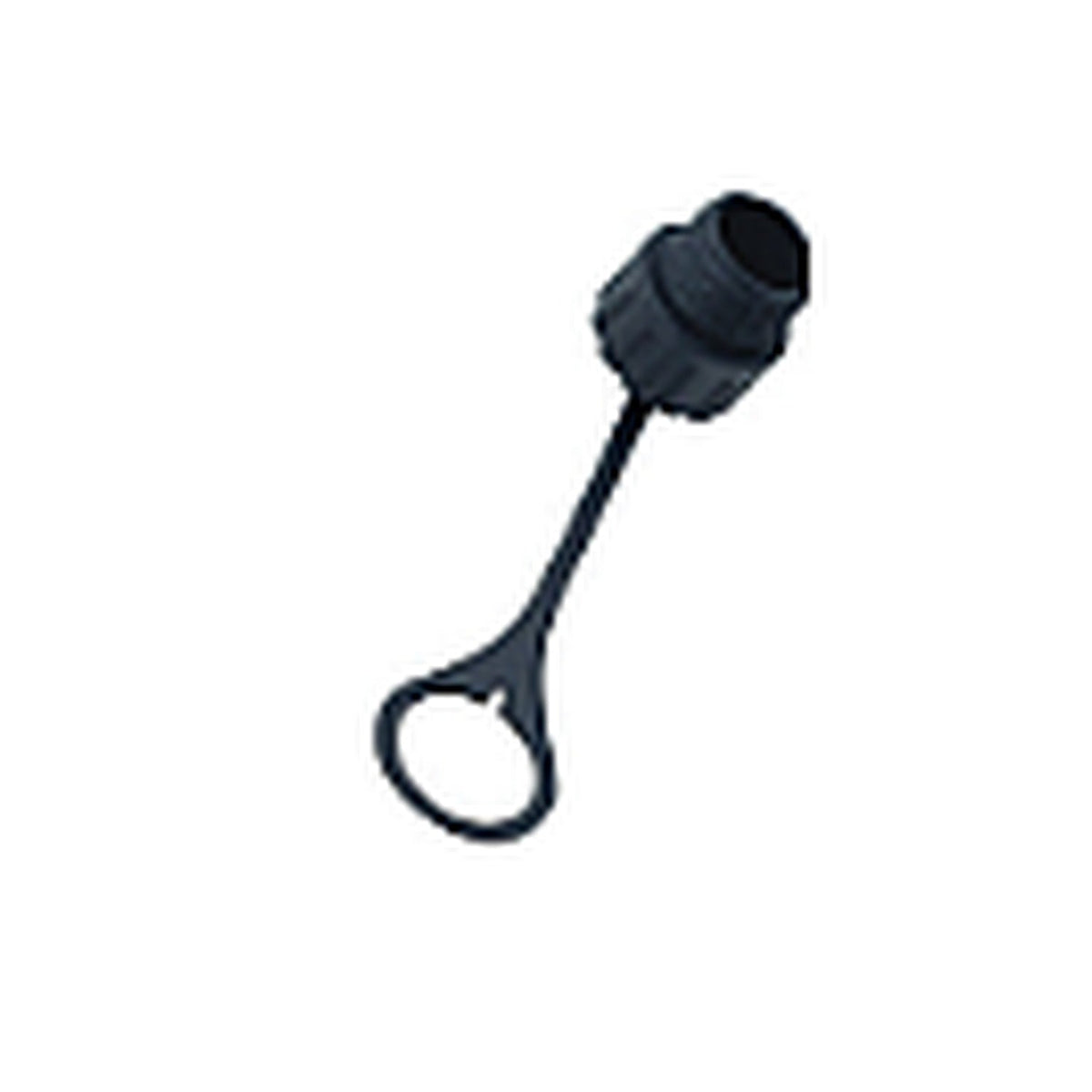

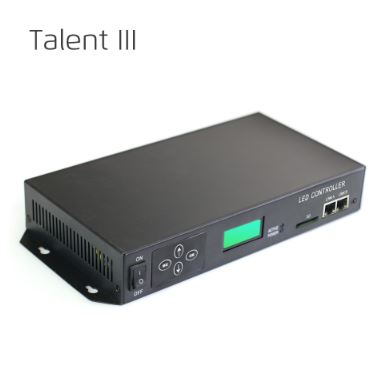

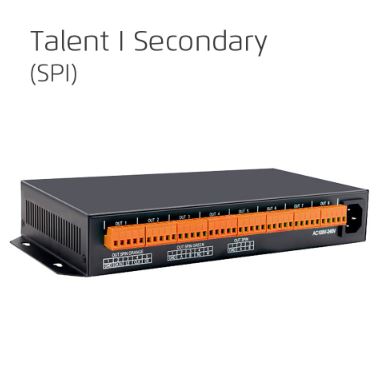

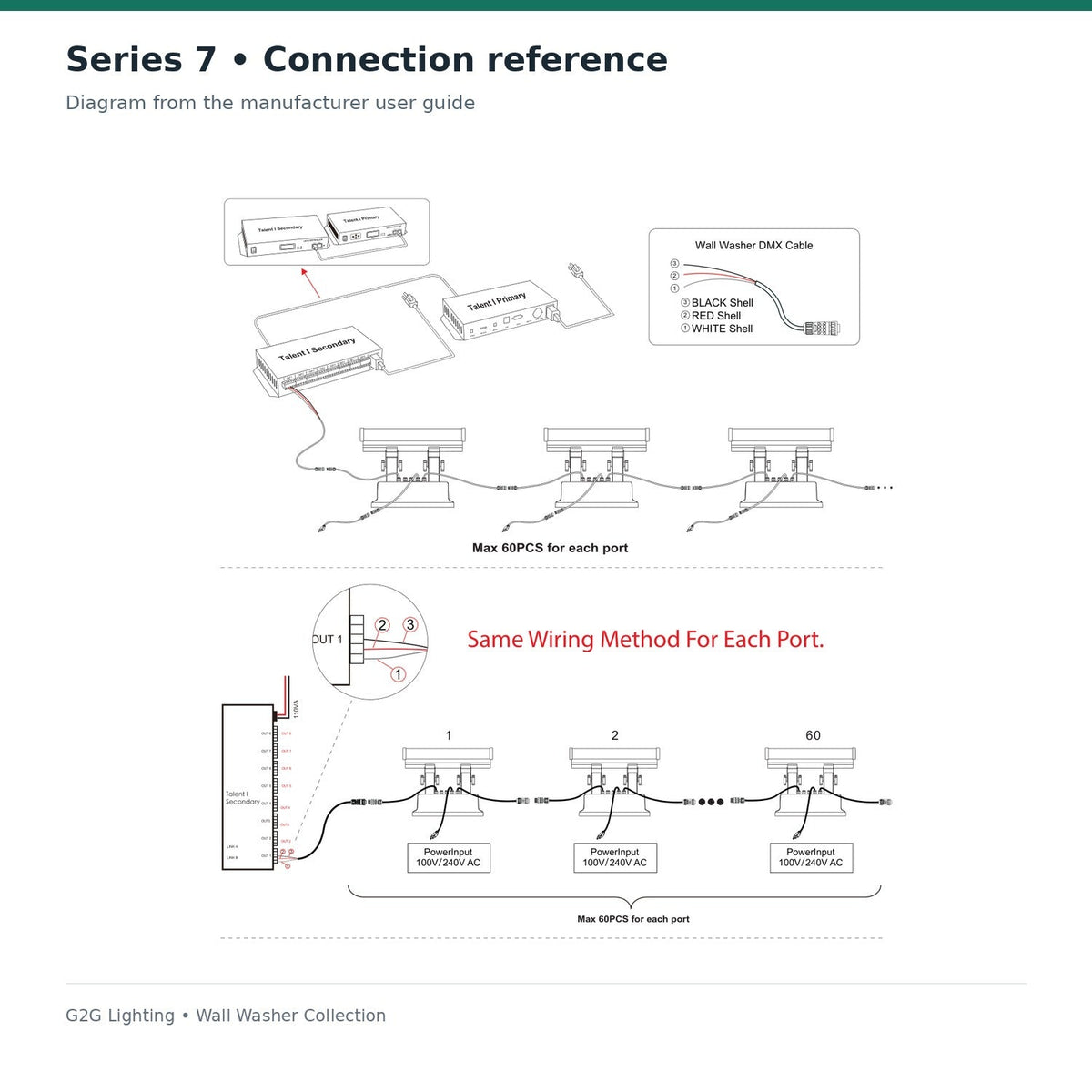

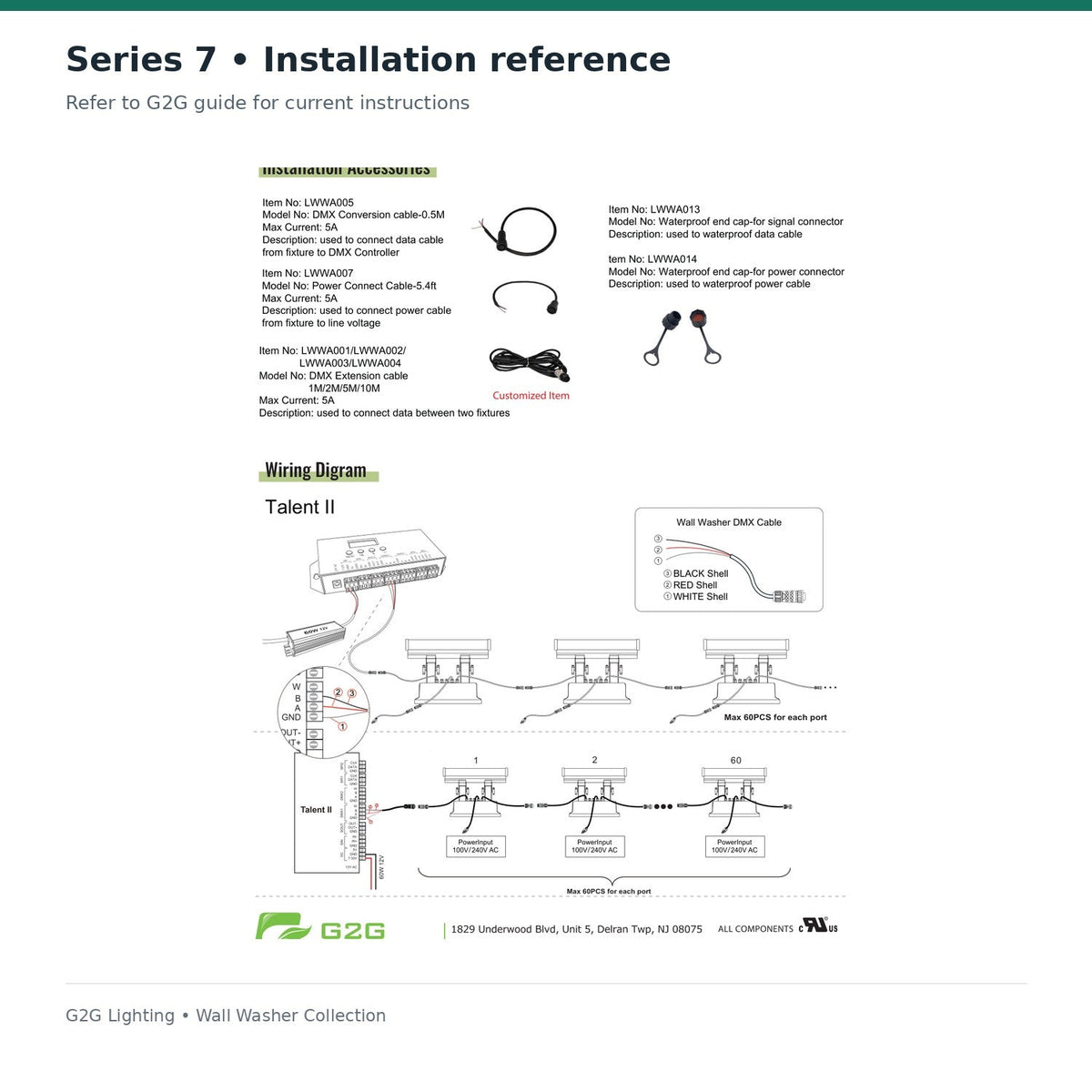

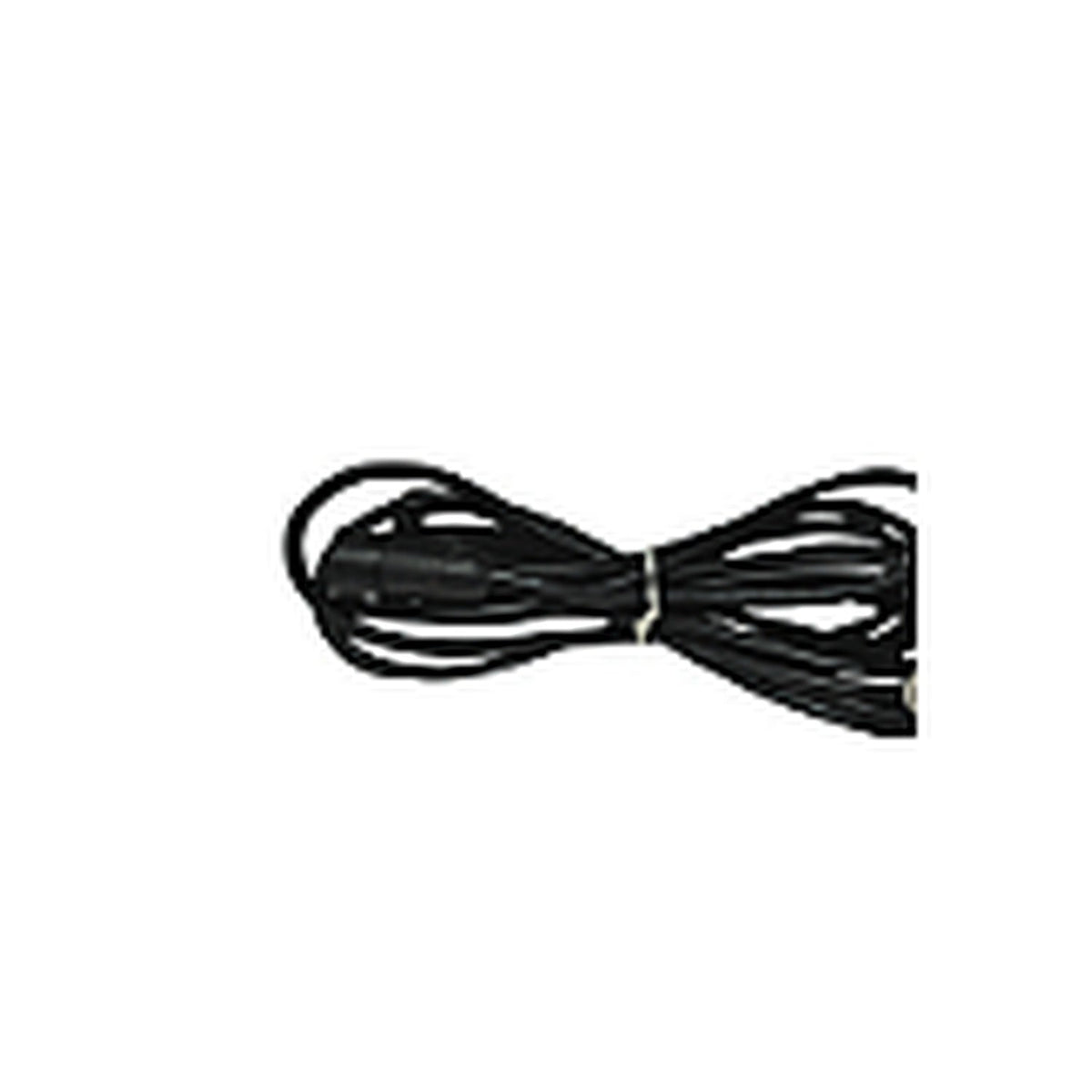

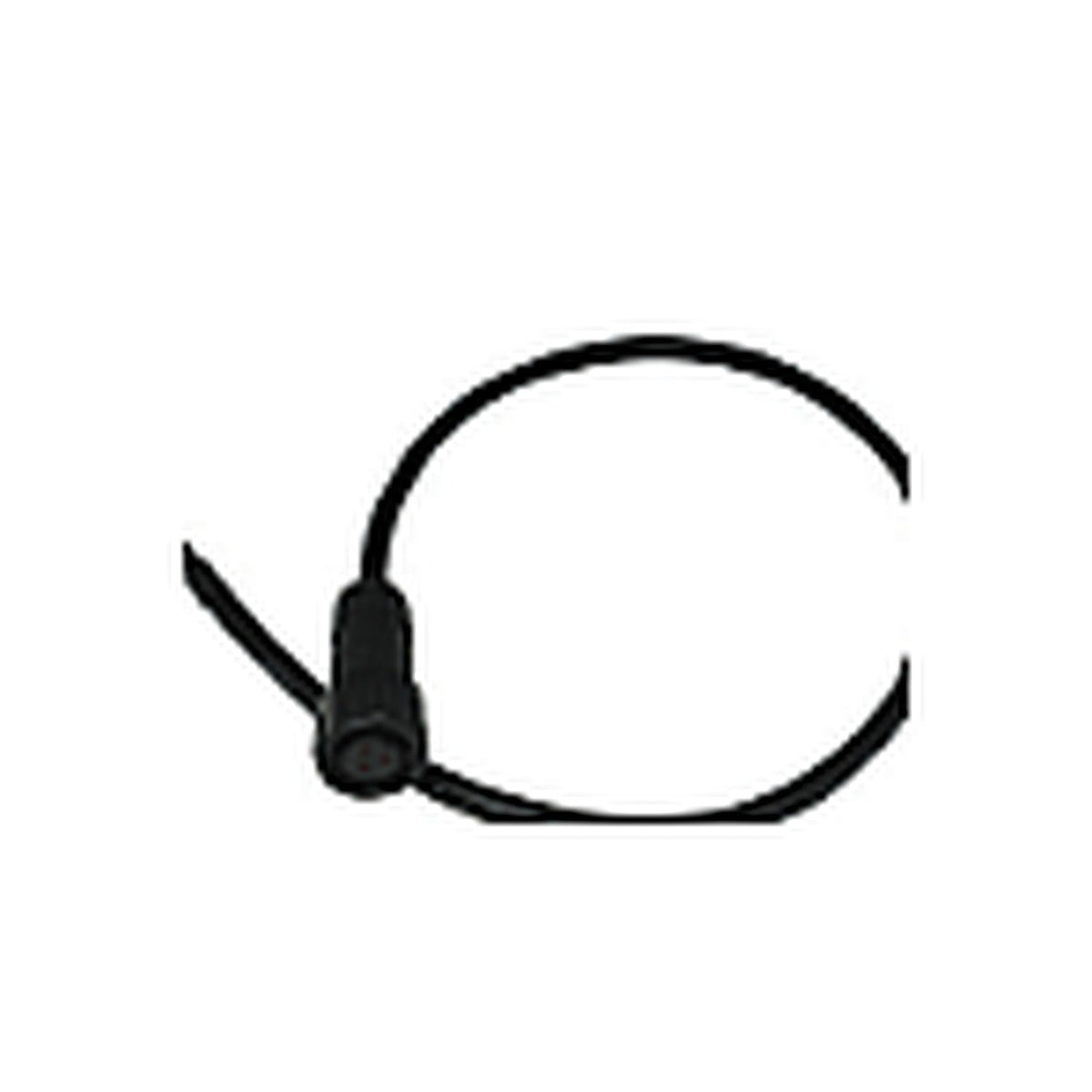

Accessories sold separately. Select Accessory under Wattage to order a controller, DMX extension or conversion cable, or waterproof connector end cap. The Series 7 installation guide lists the G2G Talent I, II and III controllers, LWWA001–LWWA005 signal cables, and LWWA013/LWWA014 end caps. Controller setup and connections vary by fixture configuration; verify the chosen control arrangement with G2G or CrafterNV before purchase. Accessory selections do not include a light fixture.

Common applications

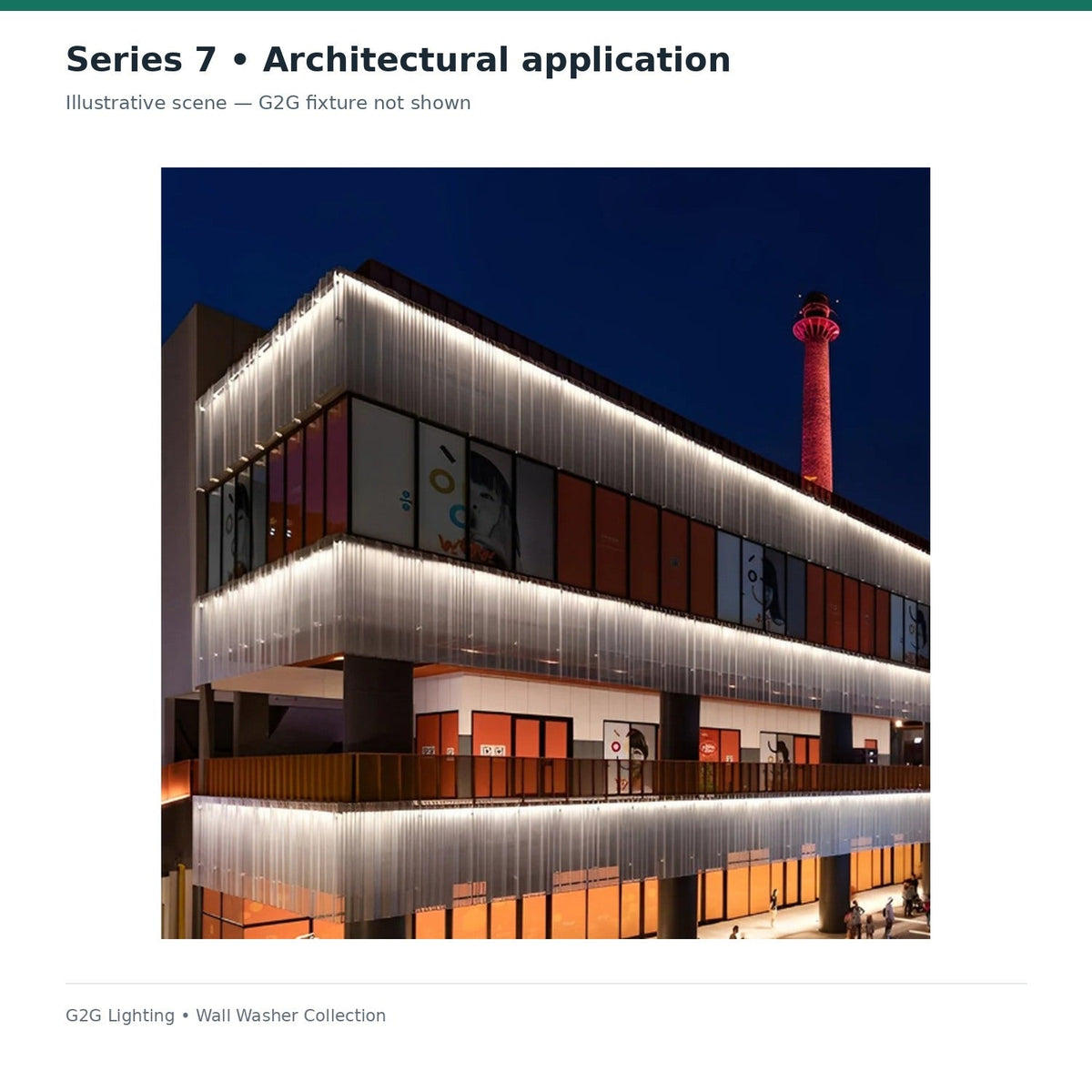

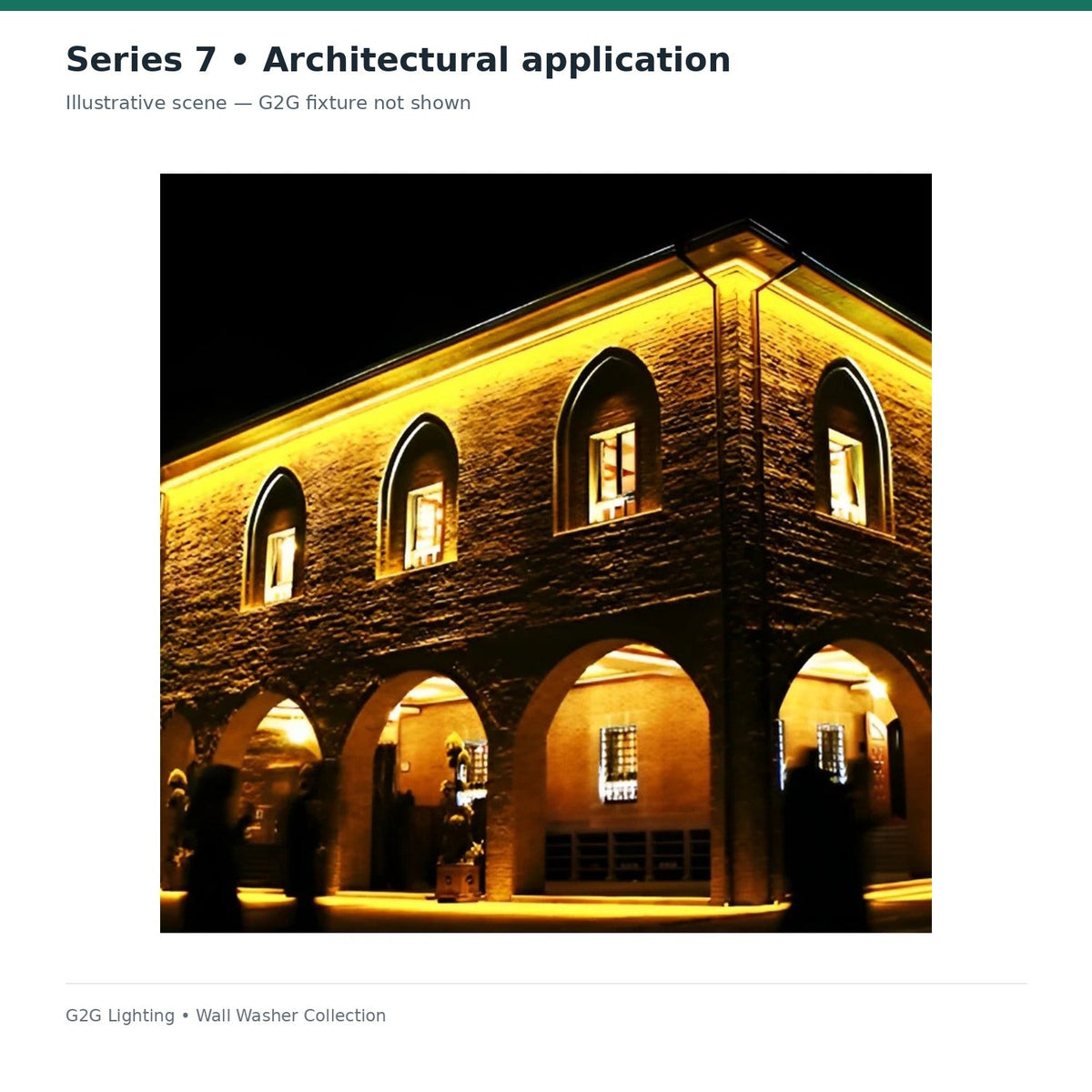

Building facade uplighting, wall grazing and washing, landscape and garden feature illumination, architectural column accents, decorative exterior lighting and coordinated DMX architectural scenes.

Each selection is sold individually. Confirm availability and project compatibility before ordering specialty control equipment.
