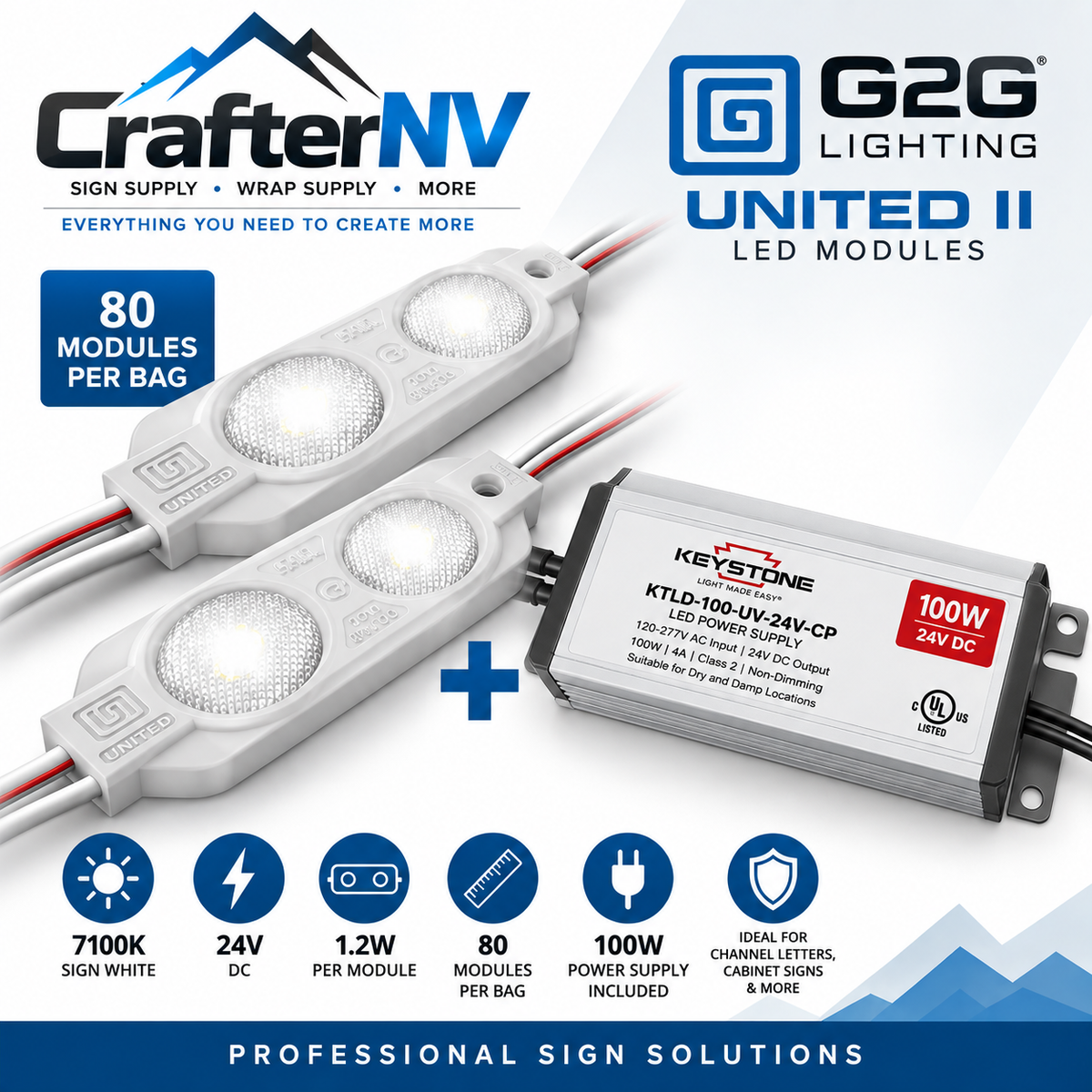

• CrafterNV and Keystone United II LED modules bundle for sign lighting, featuring three white LED light strips and a Keystone KTLD-100-UV-24V-CP 100W power supply on a white background with product features and branding.

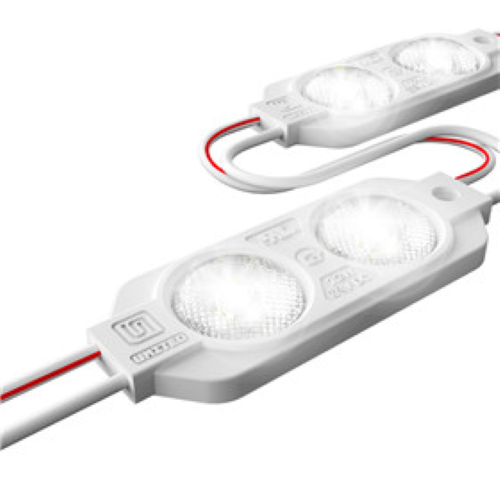

  • Two white LED light strips with two circular lenses each, connected by a curved cable with red and white wires, shown on a plain white background.
CrafterNV and Keystone United II LED modules bundle for sign lighting, featuring three white LED light strips and a Keystone KTLD-100-UV-24V-CP 100W power supply on a white background with product features and branding.
Two white LED light strips with two circular lenses each, connected by a curved cable with red and white wires, shown on a plain white background.

G2G United II 24V LED Module Kit combines a full bag of high-output G2G United II LED modules with a Keystone 24V constant-voltage LED power supply, providing a professional lighting package for channel letters, cabinet signs, and other internally illuminated signage.

The kit includes 80 G2G United II UN3001 LED modules producing bright 7100K Sign White illumination. Each module operates at 24VDC and consumes 1.2 watts while producing approximately 188 lumens. A wide 178° viewing angle helps distribute light evenly across sign faces while minimizing visible hot spots.

The included Keystone KTLD-100-UV-24V-CP constant-voltage LED driver provides 24VDC output from a universal 120–277VAC input. The driver is rated at up to 96W actual output and 4A, making it an excellent match for professional 24V LED sign installations.

Kit Includes

1 Bag – G2G United II UN3001 LED Modules

  • 80 modules per bag
  • 7100K Sign White
  • 24VDC
  • 1.2W per module
  • Approximately 188 lumens per module
  • 178° wide viewing angle
  • 2 LEDs per module
  • Approximately 1.5 modules per foot
  • IP67 rated
  • Designed for professional illuminated signage

1 – Keystone KTLD-100-UV-24V-CP LED Power Supply

  • 100W class constant-voltage LED driver
  • 96W maximum output
  • 24VDC output
  • 4A maximum output current
  • 120–277VAC input
  • 50/60Hz
  • Constant-voltage operation
  • Class 2 output
  • Non-dimming
  • Suitable for dry and damp locations
  • Over-current and short-circuit protection

Key Features & Benefits

  • Complete 24V LED sign lighting kit
  • G2G United II modules and Keystone power supply included
  • 80 LED modules supplied per bag
  • Bright 7100K Sign White illumination
  • High-output 1.2W modules
  • Approximately 188 lumens per module
  • Wide 178° light distribution
  • 24VDC system
  • IP67-rated LED modules
  • Designed for smooth, uniform sign-face illumination
  • Excellent for professional sign shops and installers
  • Suitable for new sign construction and LED retrofit projects

Common Applications

  • Channel letters
  • Illuminated cabinet signs
  • Box signs
  • Pylon signs
  • Monument signs
  • Retail signage
  • Commercial illuminated signs
  • LED sign retrofits
  • New sign construction

Power Supply & Loading

The included Keystone driver provides a maximum output of 96 watts at 24VDC.

Each UN3001 module consumes 1.2 watts. G2G specifies a maximum of 75 UN3001 modules per 96W power supply.

The package contains 80 modules, so installations using all 80 modules will require additional power capacity. Always follow manufacturer loading and installation requirements when designing the LED system.
