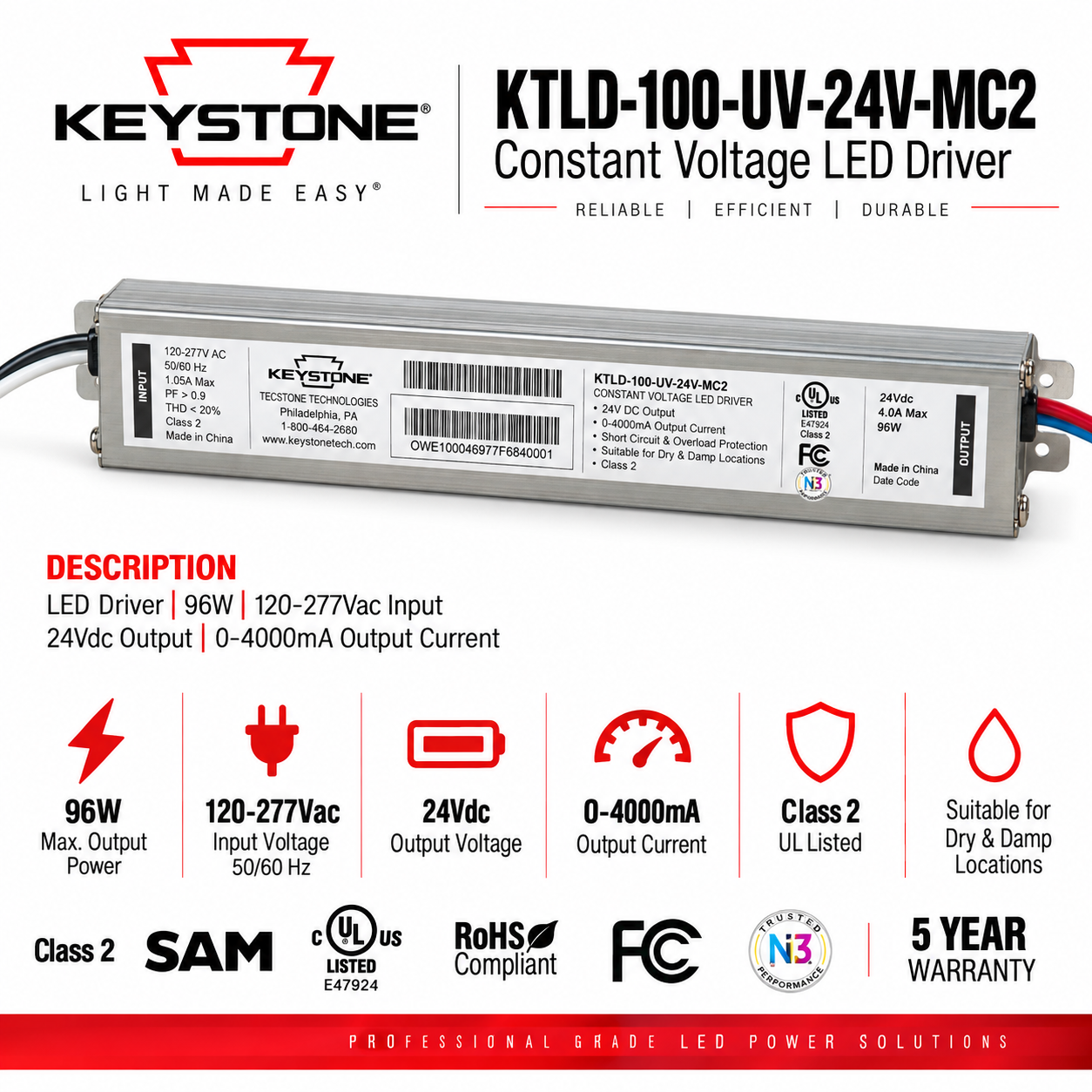

  • Keystone KTLD-100-UV-24V-MC2 constant voltage LED driver power supply on a white background with product specifications, icons, and warranty information.

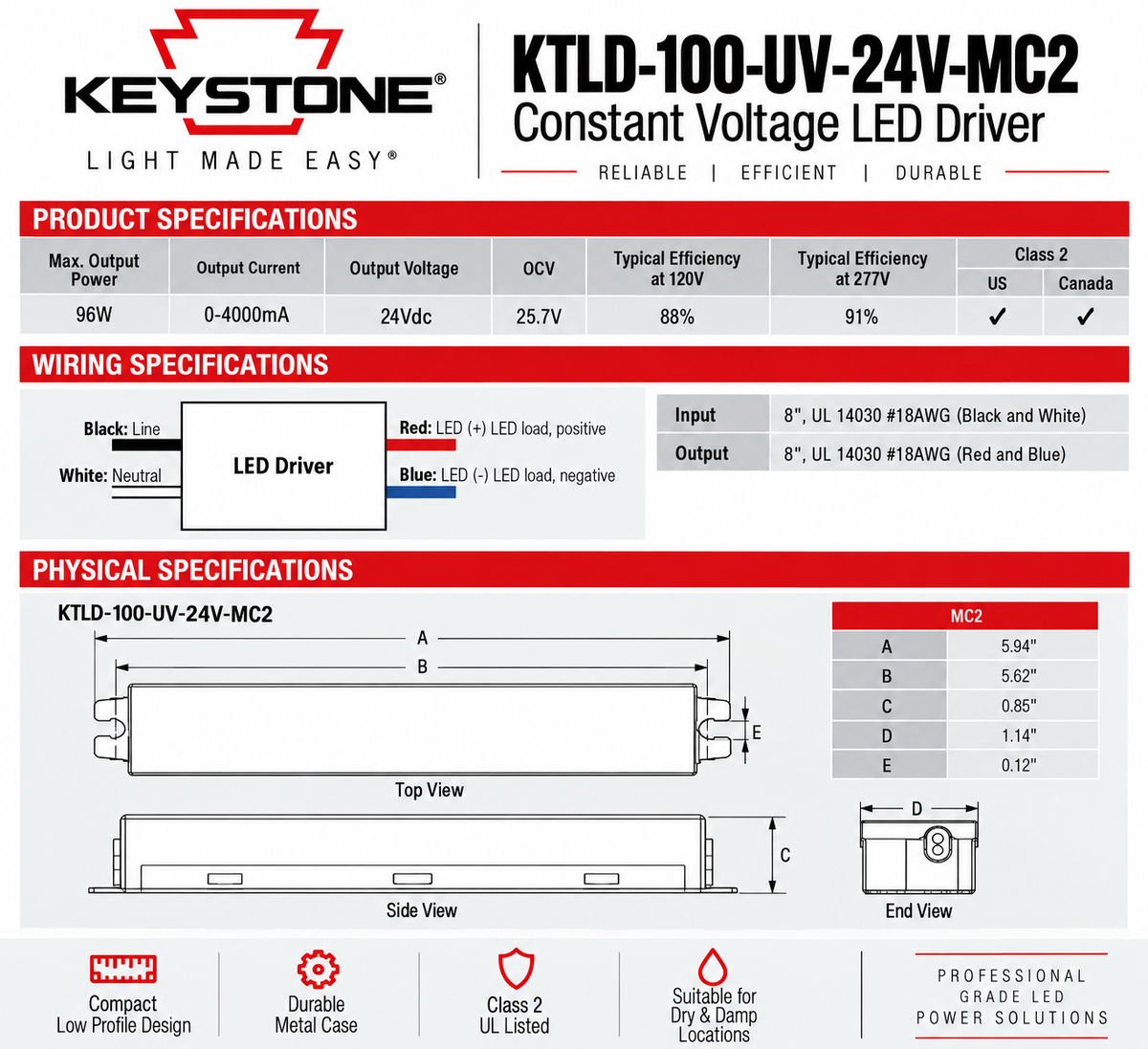

  • Technical datasheet for the Keystone KTLD-100-UV-24V-MC2 Constant Voltage LED Driver, featuring product specifications, wiring specifications, physical dimensions, and an MCFB table on a white background.

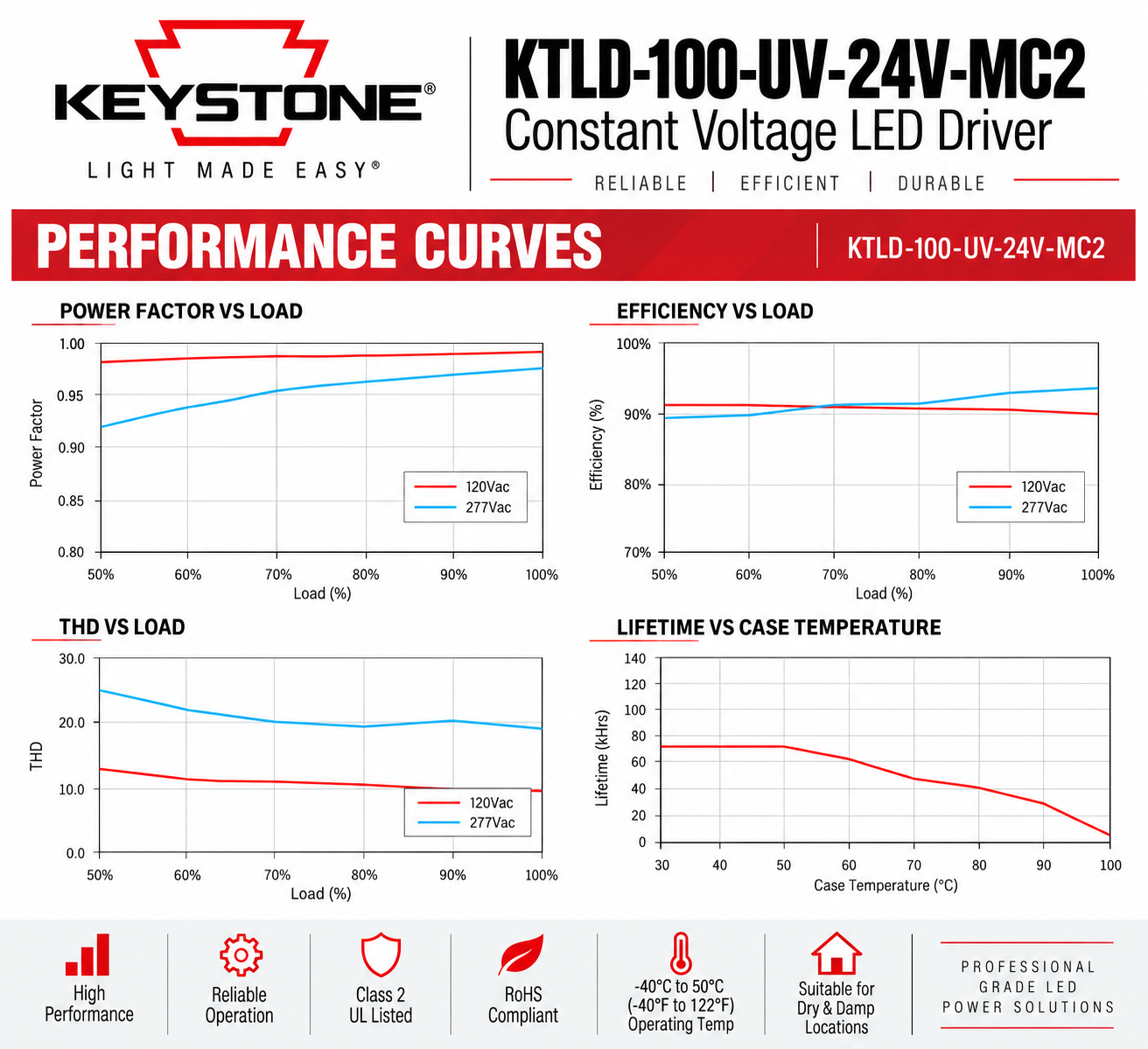

  • Technical datasheet and performance curves for the Keystone KTLD-100-UV-24V-MC2 Constant Voltage LED Driver. The image features the Keystone brand logo at the top left, product specifications at the top right, and four line graphs showing Power Factor, Efficiency, THD, and Lifetime vs Load and Case Temperature.
A Keystone brand linear power supply unit, model KTL-D-105-400-MC2, shown at an angle on a white background. The unit is silver metal with black and red wire connectors on the ends, featuring printed specifications, barcodes, and certification logos on its side.
Keystone KTLD-100-UV-24V-MC2 constant voltage LED driver power supply on a white background with product specifications, icons, and warranty information.
Technical datasheet for the Keystone KTLD-100-UV-24V-MC2 Constant Voltage LED Driver, featuring product specifications, wiring specifications, physical dimensions, and an MCFB table on a white background.
Technical datasheet and performance curves for the Keystone KTLD-100-UV-24V-MC2 Constant Voltage LED Driver. The image features the Keystone brand logo at the top left, product specifications at the top right, and four line graphs showing Power Factor, Efficiency, THD, and Lifetime vs Load and Case Temperature.

Keystone KTLD-100-UV-24V-MC2 100W 24V Pocket Constant Voltage LED Driver – 120-277V

Keystone Technologies

The KTLD-100-UV-24V-MC2 is a professional 100W 24V DC constant voltage LED driver designed to provide dependable power for commercial LED signage and lighting systems. With a universal 120-277V AC input, it is well suited for sign cabinets, channel letters, LED modules, architectural lighting and other constant-voltage LED applications.

Keystone identifies this model as a 100W-class Pocket Driver with fixed 24VDC output and 4A maximum output. Current Keystone product data lists 96W usable output for the 24V/4A configuration.

Key Features & Benefits

• Constant voltage LED driver / power supply
• Universal 120-277V AC input
• 24V DC fixed DC output
• 100W power class
• Output current: 4A max
• Pocket Driver / Micro Case design
• Designed for commercial LED signage and lighting applications
• Professional Keystone Technologies construction

Technical Specifications

• Product Type: Constant Voltage LED Driver / Power Supply
• Brand: Keystone Technologies
• Manufacturer Part Number: KTLD-100-UV-24V-MC2
• CrafterNV SKU: KTPS24100PDU
• Input Voltage: 120-277V AC
• Output Voltage: 24V DC
• Wattage: 100W
• Maximum Output Current: 4A max
• Power Factor: >0.9
• Case Style: Pocket Driver / Micro Case
• Approximate Dimensions: Approx. 5.94 in L × 1.03 in W × 0.78 in H
• UPC / GTIN: 890949020364

Common Applications

• LED sign cabinets
• Channel letter signage
• LED modules and light systems
• Architectural and accent lighting
• Commercial signage
• Constant-voltage LED installations

Compatibility Note: Always confirm the LED load voltage, total wattage, output current requirements and installation requirements before selecting a replacement LED driver.
