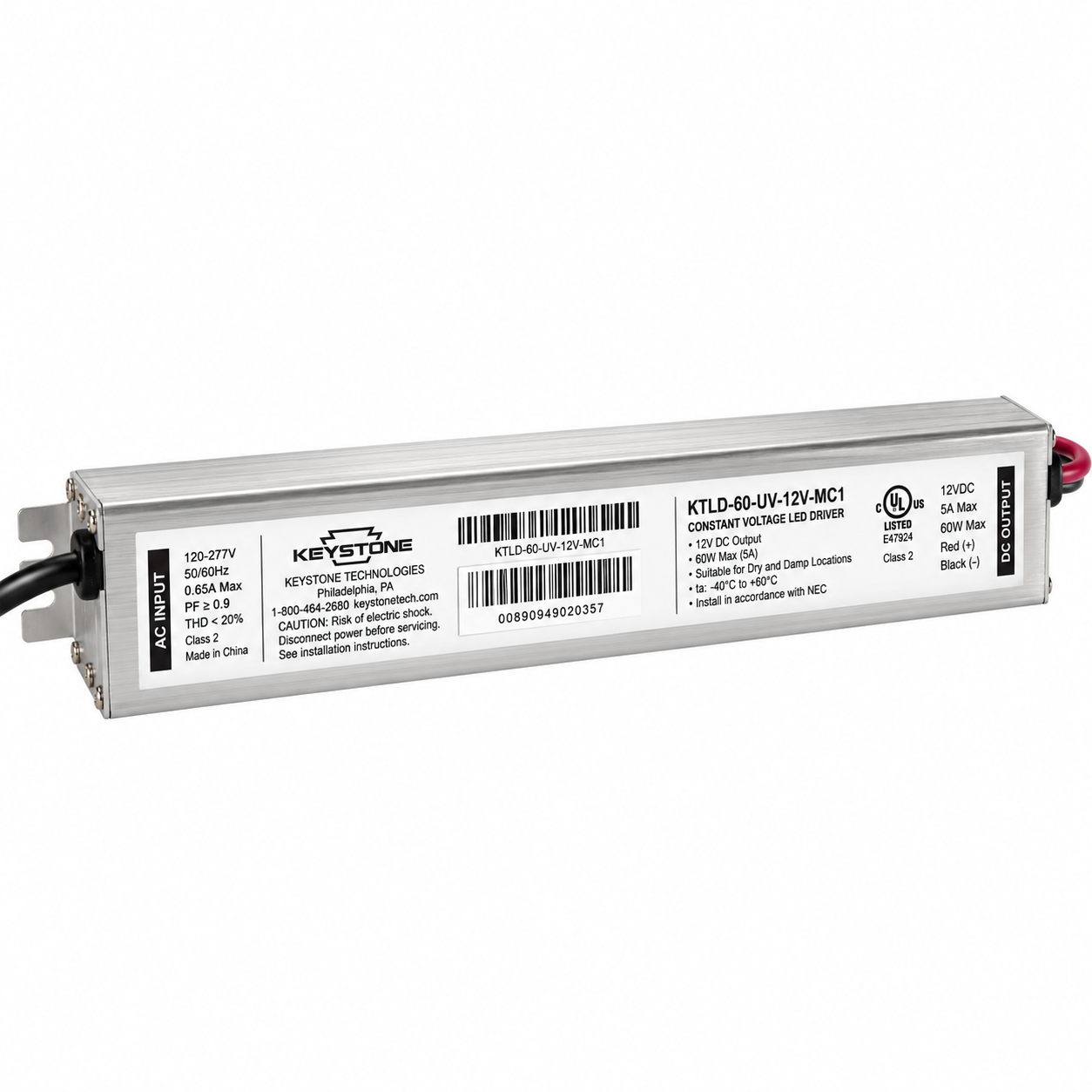

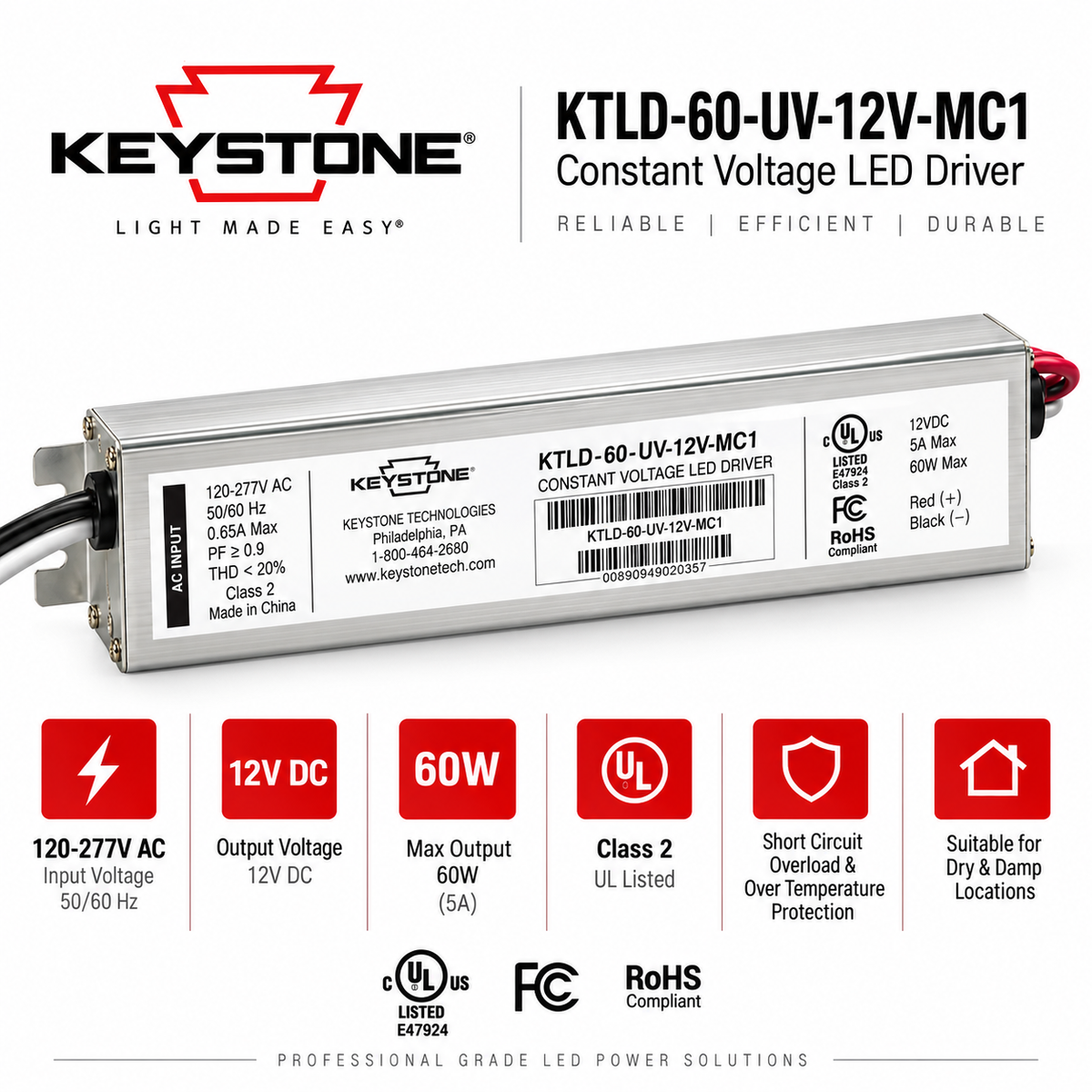

Keystone KTLD-60-UV-12V-MC1 Pocket LED Driver – 60W, 12V, 120–277V
The Keystone KTLD-60-UV-12V-MC1 is a professional constant-voltage LED driver for commercial sign and lighting systems. It accepts universal 120–277V AC input and provides regulated 12V DC output for compatible LED loads, giving sign shops a dependable power option for new fabrication, retrofit and service work.
Key Features & Benefits
- Compact pocket-driver form factor
- Class 2 constant-voltage output
- 120–277V universal input
- Designed for 12V LED loads

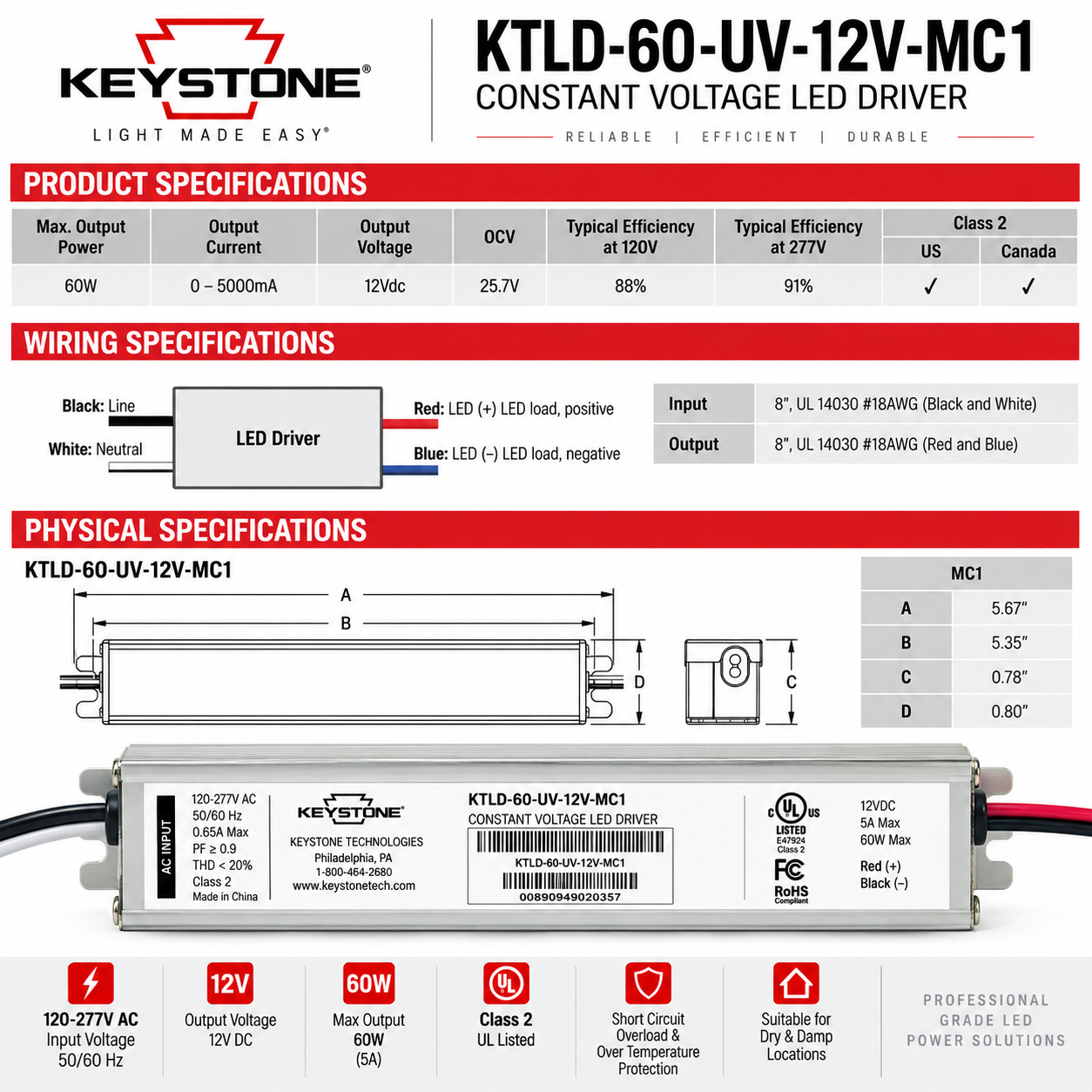

Verified Technical Specifications
| Manufacturer model | KTLD-60-UV-12V-MC1 |
|---|---|
| Maximum output power | 60W |
| Input voltage | 120–277V AC |
| Output voltage | 12V DC |
| Maximum output current | 5A |
| Output type | Constant voltage |
| Case style | Micro / pocket case |
Common Applications
- 12V LED sign modules, channel letters, cabinet signs and compact sign-power installations
- New sign fabrication
- LED retrofit projects
- Replacement power supply service work
Selection & Installation Guidance
Match the driver output voltage to the LED system before connecting a load. A 12V driver must be used with a compatible 12V system, and a 24V driver with a compatible 24V system. Size the connected load with appropriate headroom and follow Keystone wiring, enclosure and location requirements. The protected CrafterNV SKU is intentionally preserved and may differ from Keystone's manufacturer model number.
Frequently Asked Questions
Is this a constant-current or constant-voltage driver?
It is a constant-voltage LED driver.
Can it run on 120V commercial power?
Yes. This model accepts 120–277V AC input.
Can I use a 24V driver on 12V LED modules?
No. Always match the driver's output voltage to the LED system.
Is the listed wattage the same as usable LED load?
Design the system according to the LED manufacturer's loading guidance and required headroom rather than assuming every watt of nameplate output should be continuously loaded.
