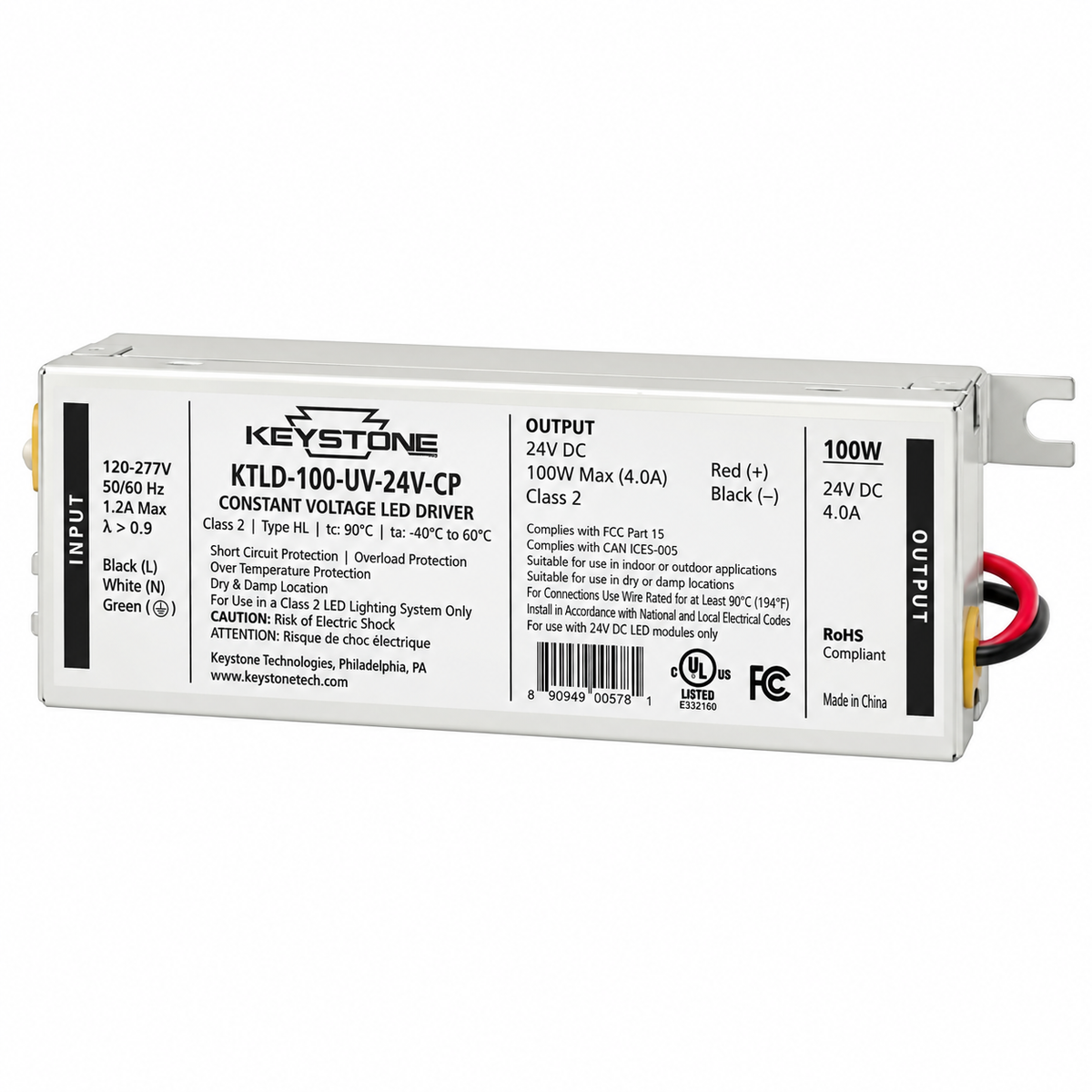

• Keystone KTLTD-100-UJV-24V-CP constant voltage LED driver power supply, 100W, 24V DC, with a white metal housing, black side labels, and red/black wire leads, shown on a white background.

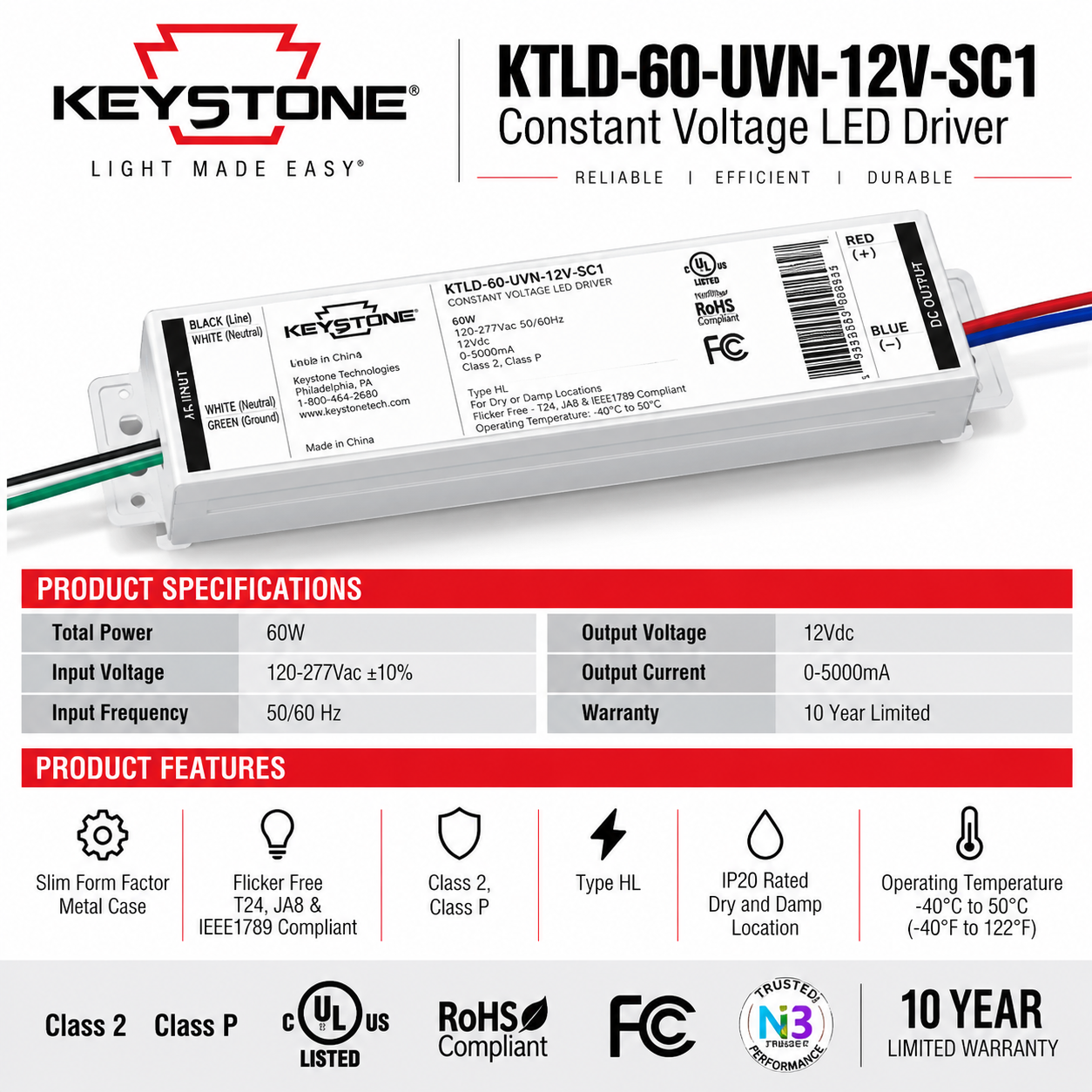

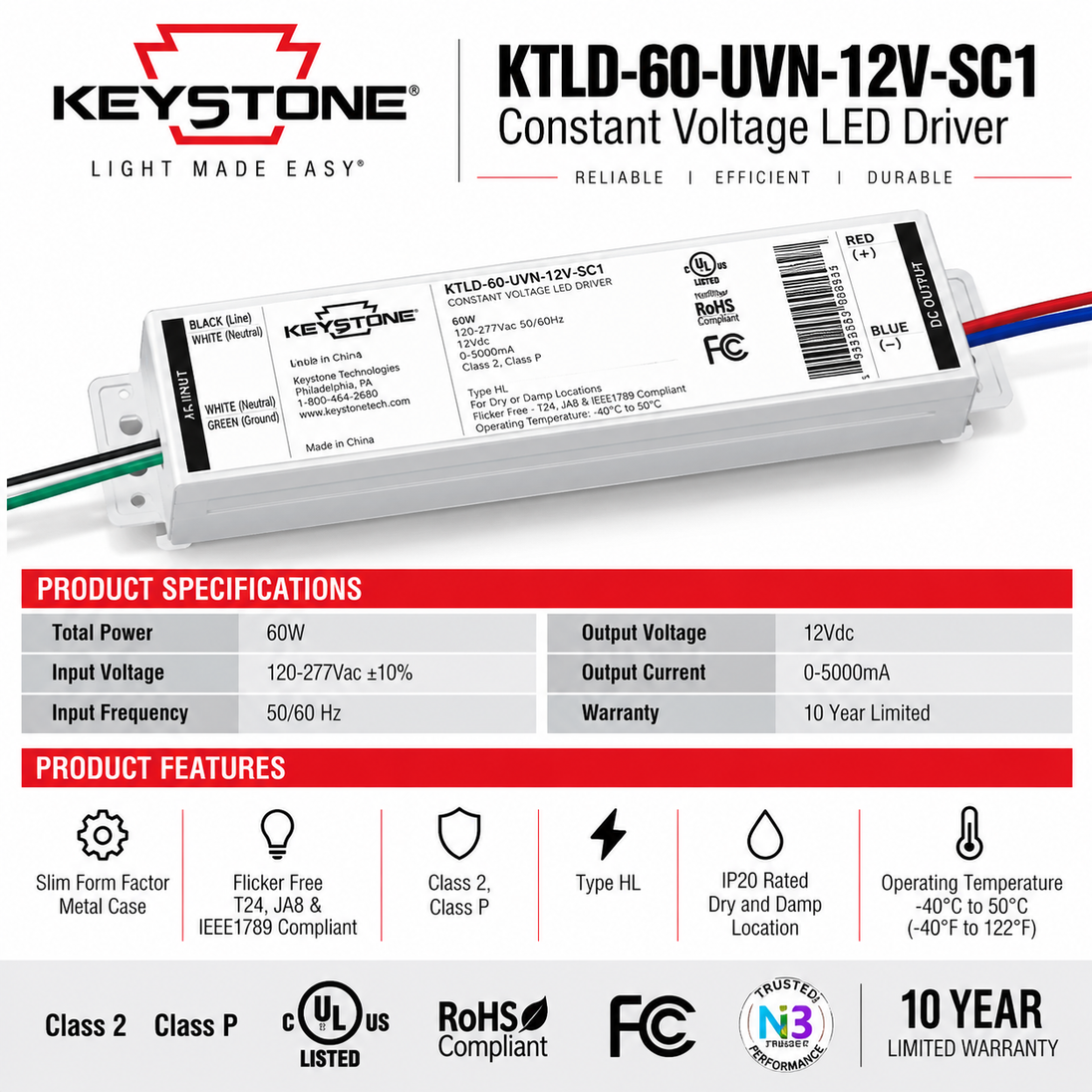

  • A Keystone KTLD-60-UUVN-12V-SC1 constant voltage LED driver power supply, shown on a white background with product specifications and features highlighted in red and blue text banners.

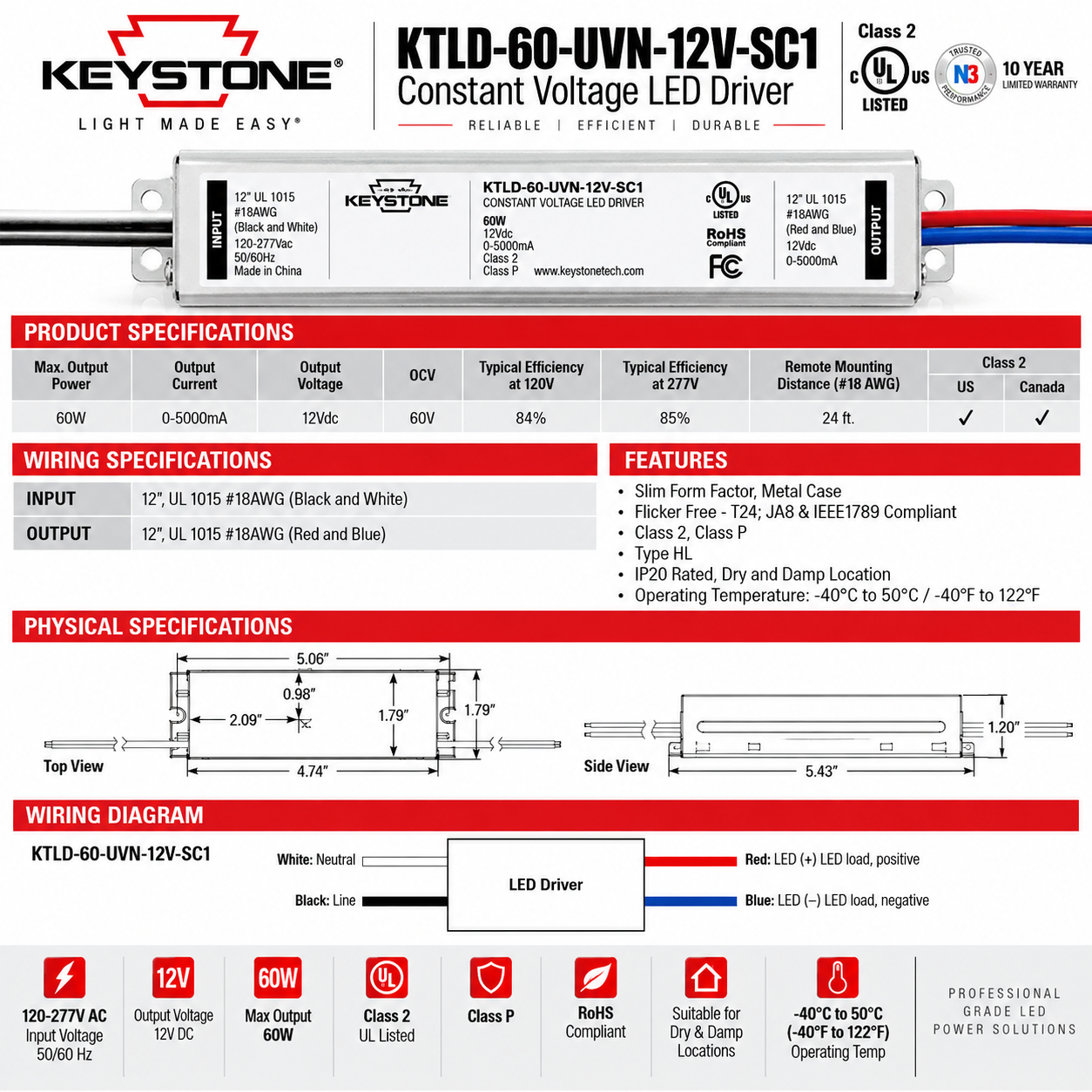

  • A technical product datasheet for the Keystone KTLD-60-UVN-12V-SC1 Constant Voltage LED Driver, featuring product specifications, wiring specifications, physical dimensions, and a wiring diagram on a white background with red and blue accent banners.

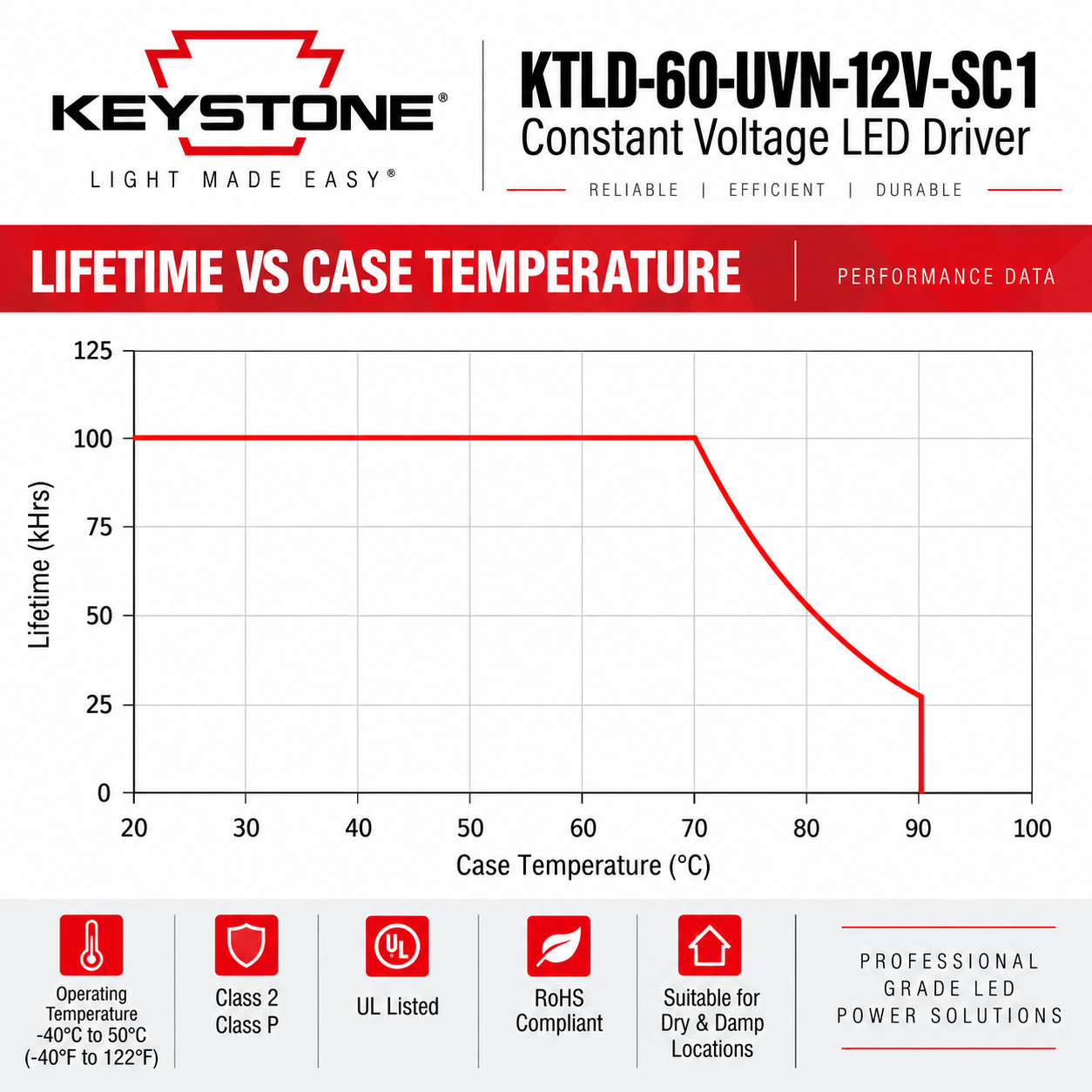

  • A technical performance chart for the Keystone KTLD-60-UVN-12V-SC1 Constant Voltage LED Driver, showing lifetime in hours versus case temperature in degrees Celsius. The chart features a red line dropping in performance as the case temperature rises above 70 degrees Celsius, with product specifications and feature icons displayed on a white background.
Keystone KTLTD-100-UJV-24V-CP constant voltage LED driver power supply, 100W, 24V DC, with a white metal housing, black side labels, and red/black wire leads, shown on a white background.
A Keystone KTLD-60-UUVN-12V-SC1 constant voltage LED driver power supply, shown on a white background with product specifications and features highlighted in red and blue text banners.
A technical product datasheet for the Keystone KTLD-60-UVN-12V-SC1 Constant Voltage LED Driver, featuring product specifications, wiring specifications, physical dimensions, and a wiring diagram on a white background with red and blue accent banners.
A technical performance chart for the Keystone KTLD-60-UVN-12V-SC1 Constant Voltage LED Driver, showing lifetime in hours versus case temperature in degrees Celsius. The chart features a red line dropping in performance as the case temperature rises above 70 degrees Celsius, with product specifications and feature icons displayed on a white background.

Keystone KTLD-60-UVN-12V-SC1 60W 12V Constant Voltage LED Driver – 120-277V

Keystone Technologies

The KTLD-60-UVN-12V-SC1 is a professional 60W 12V DC constant voltage LED driver designed to provide dependable power for commercial LED signage and lighting systems. With a universal 120-277V AC input, it is well suited for sign cabinets, channel letters, LED modules, architectural lighting and other constant-voltage LED applications.

Keystone lists this driver with 0-5000mA output, 12VDC constant-voltage output, Class 2 output, standard wire leads, and a 50,000+ hour rated life.

Key Features & Benefits

• Constant voltage LED driver / power supply
• Universal 120-277V AC input
• 12V DC fixed DC output
• 60W power class
• Output current: 0-5000mA (5A max)
• Slim / Standard Case design
• Designed for commercial LED signage and lighting applications
• Professional Keystone Technologies construction

Technical Specifications

• Product Type: Constant Voltage LED Driver / Power Supply
• Brand: Keystone Technologies
• Manufacturer Part Number: KTLD-60-UVN-12V-SC1
• CrafterNV SKU: KTPS1260U
• Input Voltage: 120-277V AC
• Output Voltage: 12V DC
• Wattage: 60W
• Maximum Output Current: 0-5000mA (5A max)
• Power Factor: Normal Power Factor
• Case Style: Slim / Standard Case
• Approximate Dimensions: Approx. 5.43 in L × 2.09 in W × 1.20 in H
• UPC / GTIN: 843654127149

Common Applications

• LED sign cabinets
• Channel letter signage
• LED modules and light systems
• Architectural and accent lighting
• Commercial signage
• Constant-voltage LED installations

Compatibility Note: Always confirm the LED load voltage, total wattage, output current requirements and installation requirements before selecting a replacement LED driver.
🚚 $9.95 Flat Rate • FREE Ground Shipping $300+ Excludes freight

Keystone Technologies

Keystone KTLD-60-UVN-12V-SC1 60W 12V Constant Voltage LED Driver – 120-277V

SKU KTPS1260U
$19.38

Keystone KTLD-60-UVN-12V-SC1 60W 12V Constant Voltage LED Driver – 120-277V

Keystone Technologies

The KTLD-60-UVN-12V-SC1 is a professional 60W 12V DC constant voltage LED driver designed to provide dependable power for commercial LED signage and lighting systems. With a universal 120-277V AC input, it is well suited for sign cabinets, channel letters, LED modules, architectural lighting and other constant-voltage LED applications.

Keystone lists this driver with 0-5000mA output, 12VDC constant-voltage output, Class 2 output, standard wire leads, and a 50,000+ hour rated life.

Key Features & Benefits

• Constant voltage LED driver / power supply
• Universal 120-277V AC input
• 12V DC fixed DC output
• 60W power class
• Output current: 0-5000mA (5A max)
• Slim / Standard Case design
• Designed for commercial LED signage and lighting applications
• Professional Keystone Technologies construction

Technical Specifications

• Product Type: Constant Voltage LED Driver / Power Supply
• Brand: Keystone Technologies
• Manufacturer Part Number: KTLD-60-UVN-12V-SC1
• CrafterNV SKU: KTPS1260U
• Input Voltage: 120-277V AC
• Output Voltage: 12V DC
• Wattage: 60W
• Maximum Output Current: 0-5000mA (5A max)
• Power Factor: Normal Power Factor
• Case Style: Slim / Standard Case
• Approximate Dimensions: Approx. 5.43 in L × 2.09 in W × 1.20 in H
• UPC / GTIN: 843654127149

Common Applications

• LED sign cabinets
• Channel letter signage
• LED modules and light systems
• Architectural and accent lighting
• Commercial signage
• Constant-voltage LED installations

Compatibility Note: Always confirm the LED load voltage, total wattage, output current requirements and installation requirements before selecting a replacement LED driver.
$19.38
Keystone KTLTD-100-UJV-24V-CP constant voltage LED driver power supply, 100W, 24V DC, with a white metal housing, black side labels, and red/black wire leads, shown on a white background. A Keystone KTLD-60-UUVN-12V-SC1 constant voltage LED driver power supply, shown on a white background with product specifications and features highlighted in red and blue text banners. A technical product datasheet for the Keystone KTLD-60-UVN-12V-SC1 Constant Voltage LED Driver, featuring product specifications, wiring specifications, physical dimensions, and a wiring diagram on a white background with red and blue accent banners. A technical performance chart for the Keystone KTLD-60-UVN-12V-SC1 Constant Voltage LED Driver, showing lifetime in hours versus case temperature in degrees Celsius. The chart features a red line dropping in performance as the case temperature rises above 70 degrees Celsius, with product specifications and feature icons displayed on a white background.
Keystone KTLTD-100-UJV-24V-CP constant voltage LED driver power supply, 100W, 24V DC, with a white metal housing, black side labels, and red/black wire leads, shown on a white background. A Keystone KTLD-60-UUVN-12V-SC1 constant voltage LED driver power supply, shown on a white background with product specifications and features highlighted in red and blue text banners. A technical product datasheet for the Keystone KTLD-60-UVN-12V-SC1 Constant Voltage LED Driver, featuring product specifications, wiring specifications, physical dimensions, and a wiring diagram on a white background with red and blue accent banners. A technical performance chart for the Keystone KTLD-60-UVN-12V-SC1 Constant Voltage LED Driver, showing lifetime in hours versus case temperature in degrees Celsius. The chart features a red line dropping in performance as the case temperature rises above 70 degrees Celsius, with product specifications and feature icons displayed on a white background.

  • 🏆 Serving Since 1930

    Over 90 years of industry experience

  • 🚚 Free Shipping

    Free shipping on orders over $300

  • 📞 Expert Support

    Call Scott: 775-382-2290

  • 🔒 Secure Checkout

    Protected Shopify checkout

Frequently Bought Together

Total price$130.10

Product Description

Keystone KTLD-60-UVN-12V-SC1 60W 12V Constant Voltage LED Driver – 120-277V

Keystone Technologies

The KTLD-60-UVN-12V-SC1 is a professional 60W 12V DC constant voltage LED driver designed to provide dependable power for commercial LED signage and lighting systems. With a universal 120-277V AC input, it is well suited for sign cabinets, channel letters, LED modules, architectural lighting and other constant-voltage LED applications.

Keystone lists this driver with 0-5000mA output, 12VDC constant-voltage output, Class 2 output, standard wire leads, and a 50,000+ hour rated life.

Key Features & Benefits

• Constant voltage LED driver / power supply
• Universal 120-277V AC input
• 12V DC fixed DC output
• 60W power class
• Output current: 0-5000mA (5A max)
• Slim / Standard Case design
• Designed for commercial LED signage and lighting applications
• Professional Keystone Technologies construction

Technical Specifications

• Product Type: Constant Voltage LED Driver / Power Supply
• Brand: Keystone Technologies
• Manufacturer Part Number: KTLD-60-UVN-12V-SC1
• CrafterNV SKU: KTPS1260U
• Input Voltage: 120-277V AC
• Output Voltage: 12V DC
• Wattage: 60W
• Maximum Output Current: 0-5000mA (5A max)
• Power Factor: Normal Power Factor
• Case Style: Slim / Standard Case
• Approximate Dimensions: Approx. 5.43 in L × 2.09 in W × 1.20 in H
• UPC / GTIN: 843654127149

Common Applications

• LED sign cabinets
• Channel letter signage
• LED modules and light systems
• Architectural and accent lighting
• Commercial signage
• Constant-voltage LED installations

Compatibility Note: Always confirm the LED load voltage, total wattage, output current requirements and installation requirements before selecting a replacement LED driver.
