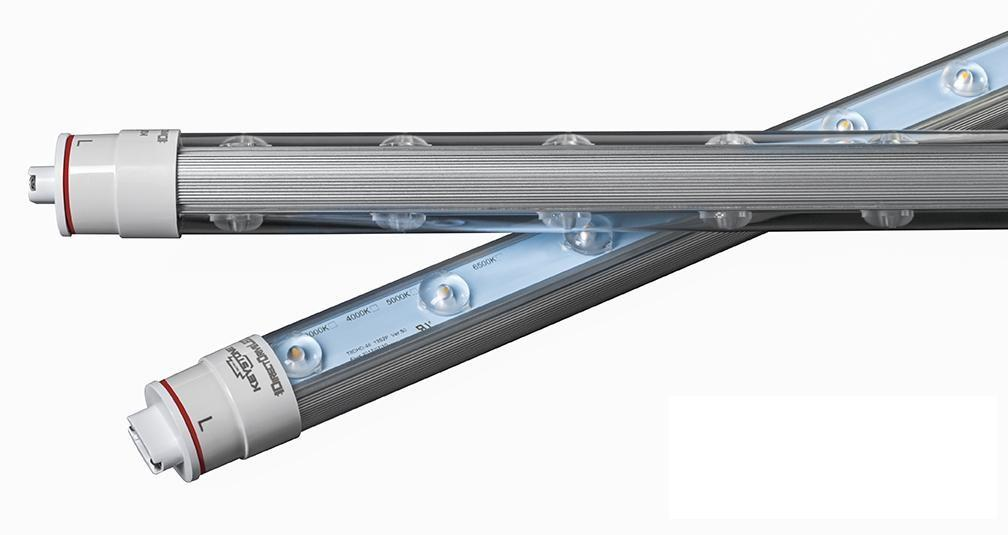

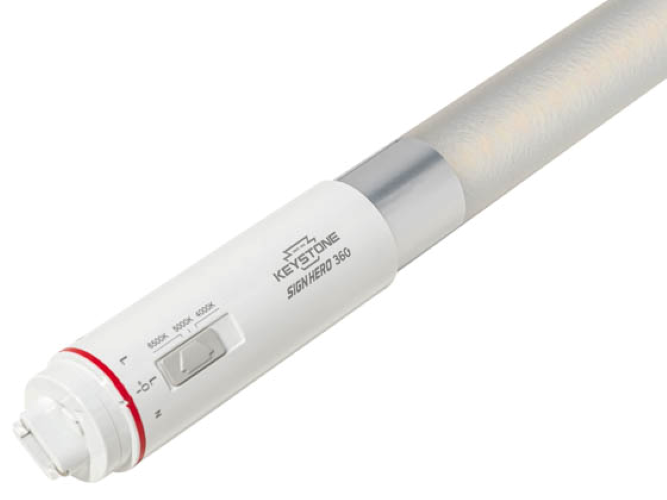

Keystone Sign Hero Contractor Prime LED Sign Tubes
Keystone Sign Hero Contractor Prime is an economical LED sign-tube family for internally illuminated sign cabinets. These ballast-bypass line-voltage tubes combine a built-in Keystone driver, selectable 4000K/5000K/6500K color temperature, frosted construction and rotatable R17d end caps to simplify fluorescent sign-cabinet retrofits while maintaining broad, even illumination.
Key Features & Benefits
- Three selectable color temperatures: 4000K, 5000K and 6500K
- Ballast-bypass design eliminates the fluorescent ballast
- Built-in LED driver; no separate external LED power supply is required

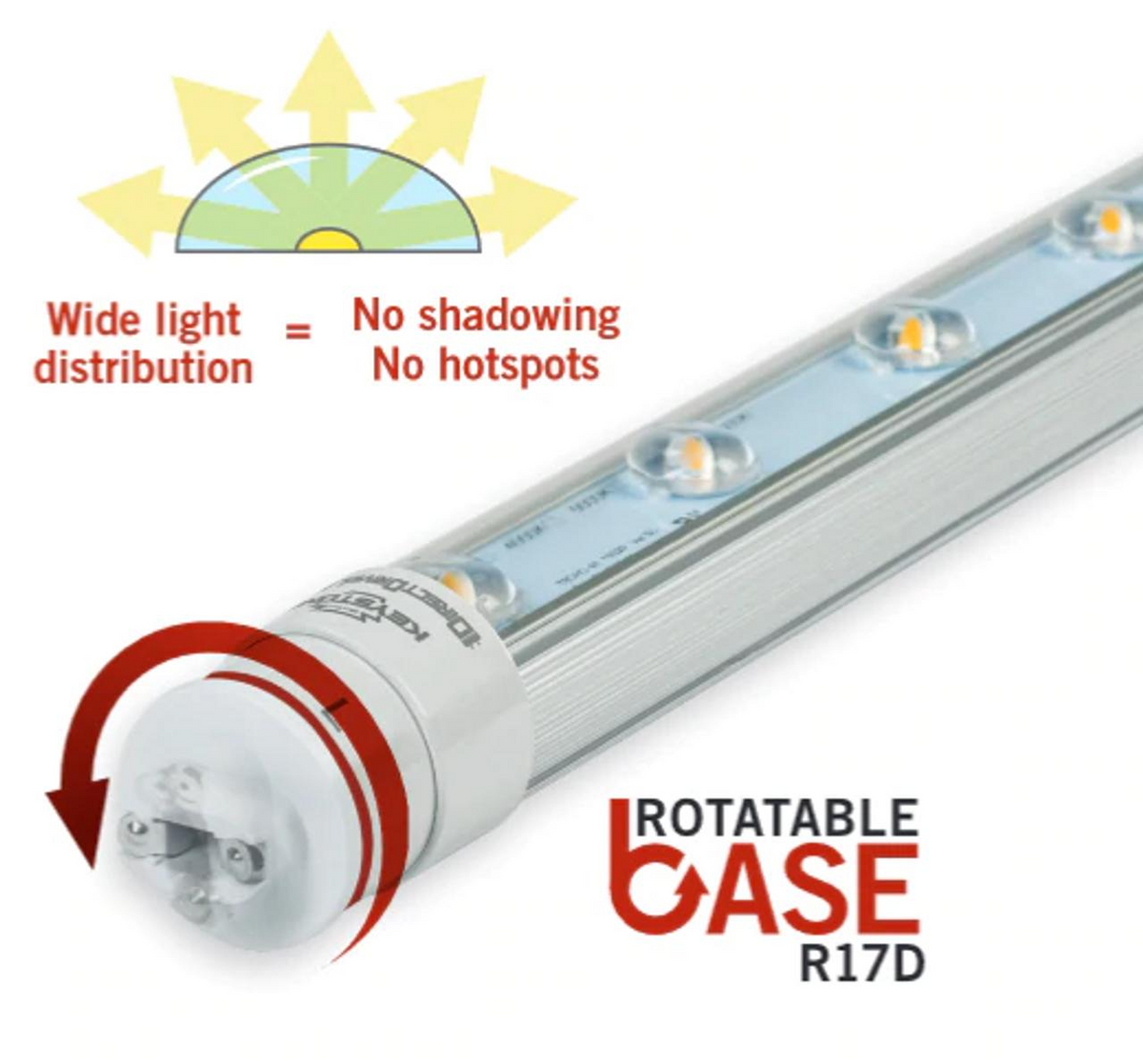

- Rotatable R17d end caps help accommodate existing socket orientation
- Double- and single-ended wiring capability on the verified Contractor Prime family
- Frosted tube construction for broad sign-face illumination
- Sold by the case of 10 in the CrafterNV variants
Verified Technical Specifications
| Product family | Keystone Sign Hero Contractor Prime |
|---|---|
| Input voltage | 120–277V AC |
| Color temperature | Selectable 4000K / 5000K / 6500K |
| Wiring | Ballast bypass; line-voltage operation |
| End caps | Rotatable R17d |
| Optical style | Double-sided / 360° sign-tube illumination |

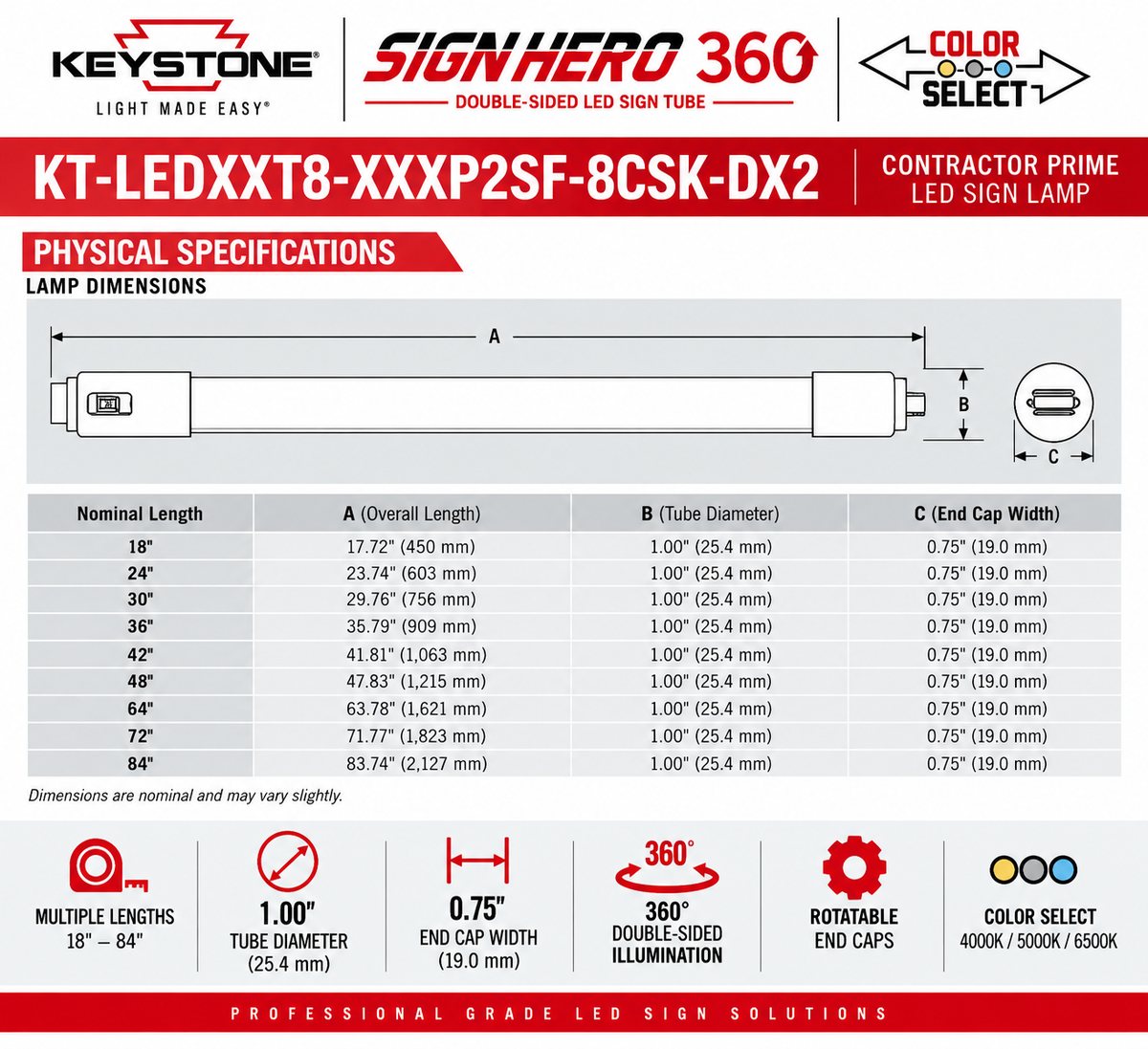

| Available CrafterNV lengths | 18, 24, 30, 36, 42, 48, 64, 72 and 84 inches |
| Packaging | Case of 10 |
Common Applications
- Fluorescent sign-cabinet LED retrofits
- New internally illuminated cabinet signs
- Color-faced and dark-faced sign cabinets
- Single- and double-face commercial signs
Selection & Installation Guidance
Select the tube length that matches the cabinet and existing lamp spacing, then choose the desired CCT at installation. These tubes are designed to bypass the fluorescent ballast; they are not ballast-compatible Type A lamps. The existing R17d sockets can be retained when suitable, but wiring must follow Keystone's installation instructions and applicable electrical codes. For socket-free new construction or retrofits with damaged sockets, Keystone's separate Sign Hero Direct Wire system may be a better fit.
Frequently Asked Questions
Do Sign Hero Contractor Prime tubes require a ballast?
No. They are ballast-bypass LED sign tubes with an integrated driver.
Can I select the color temperature?
Yes. The verified Contractor Prime models in this listing provide 4000K, 5000K and 6500K selection.
Do I need an external LED power supply?
No. The driver is integrated into the lamp.
Are these sold individually?
The CrafterNV variants in this listing are packaged as cases of 10.
