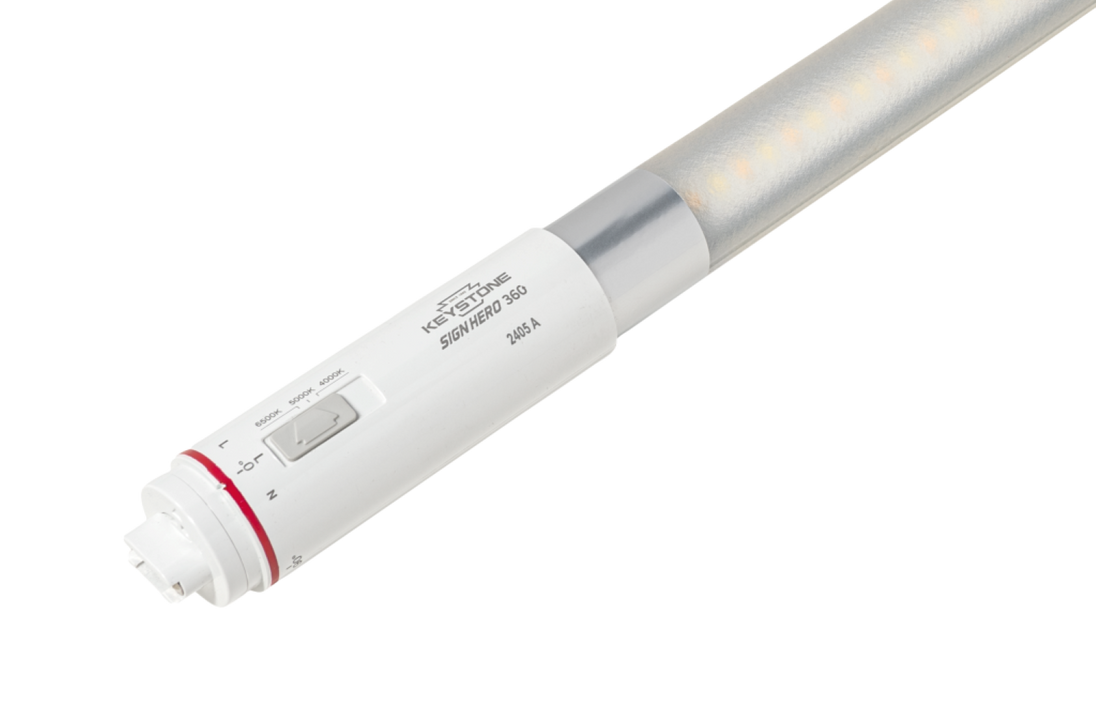

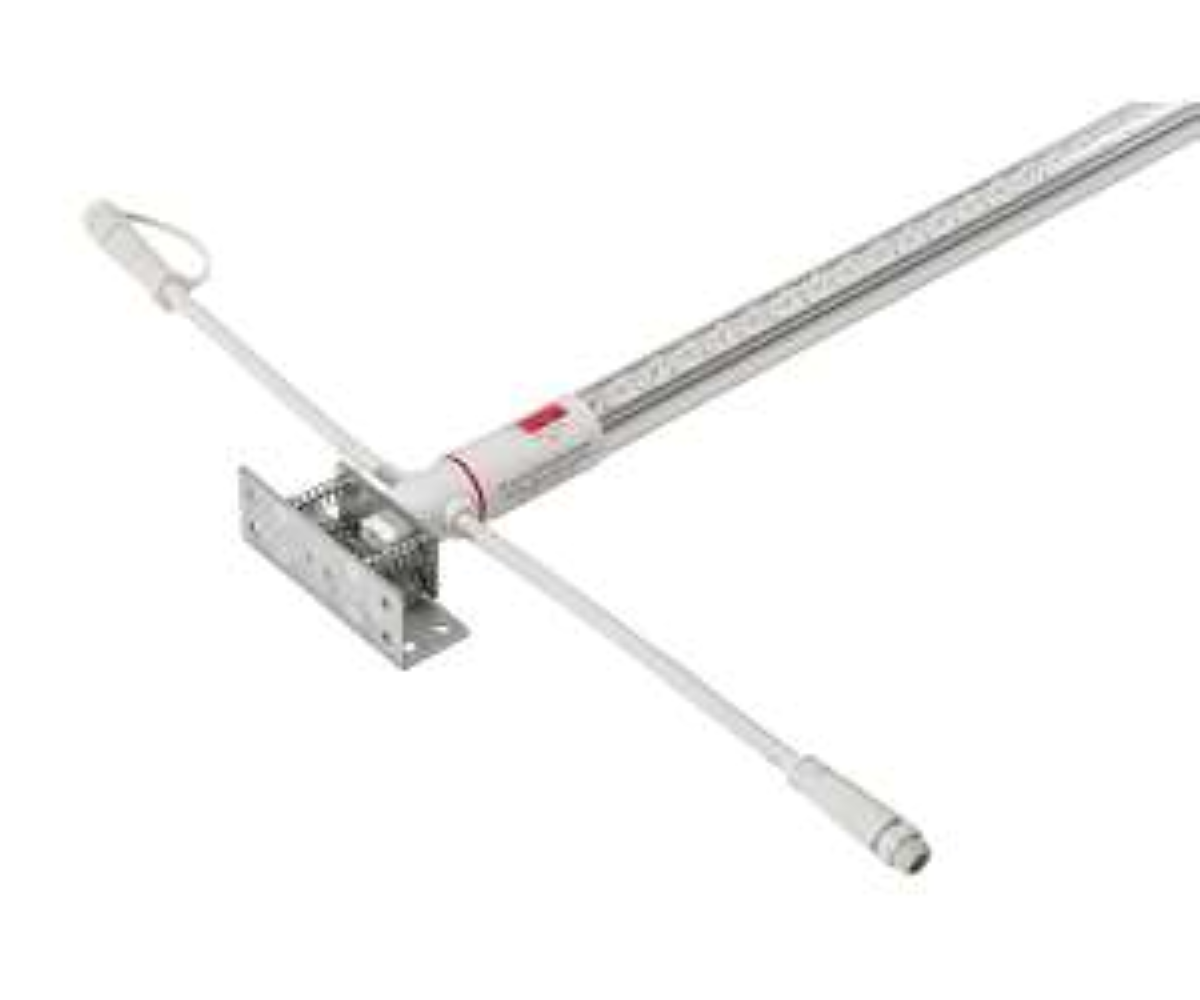

Keystone Sign Hero Direct Wire LED Sign Lamps

Upgrade new or existing illuminated sign cabinets with Keystone Sign Hero Direct Wire LED Sign Lamps, featuring Power Select wattage technology and Keystone Color Select Technology with selectable 4000K, 5000K, and 6500K color temperatures.

Designed specifically for internally illuminated commercial signage, Sign Hero Direct Wire lamps provide 360° LED light distribution for even illumination across double-sided sign faces. The direct-wire design operates on 120–277V input power and eliminates the need for a traditional fluorescent ballast.

These lamps are an excellent solution for sign shops, sign installers, service companies, and businesses converting fluorescent sign cabinets to energy-efficient LED lighting.

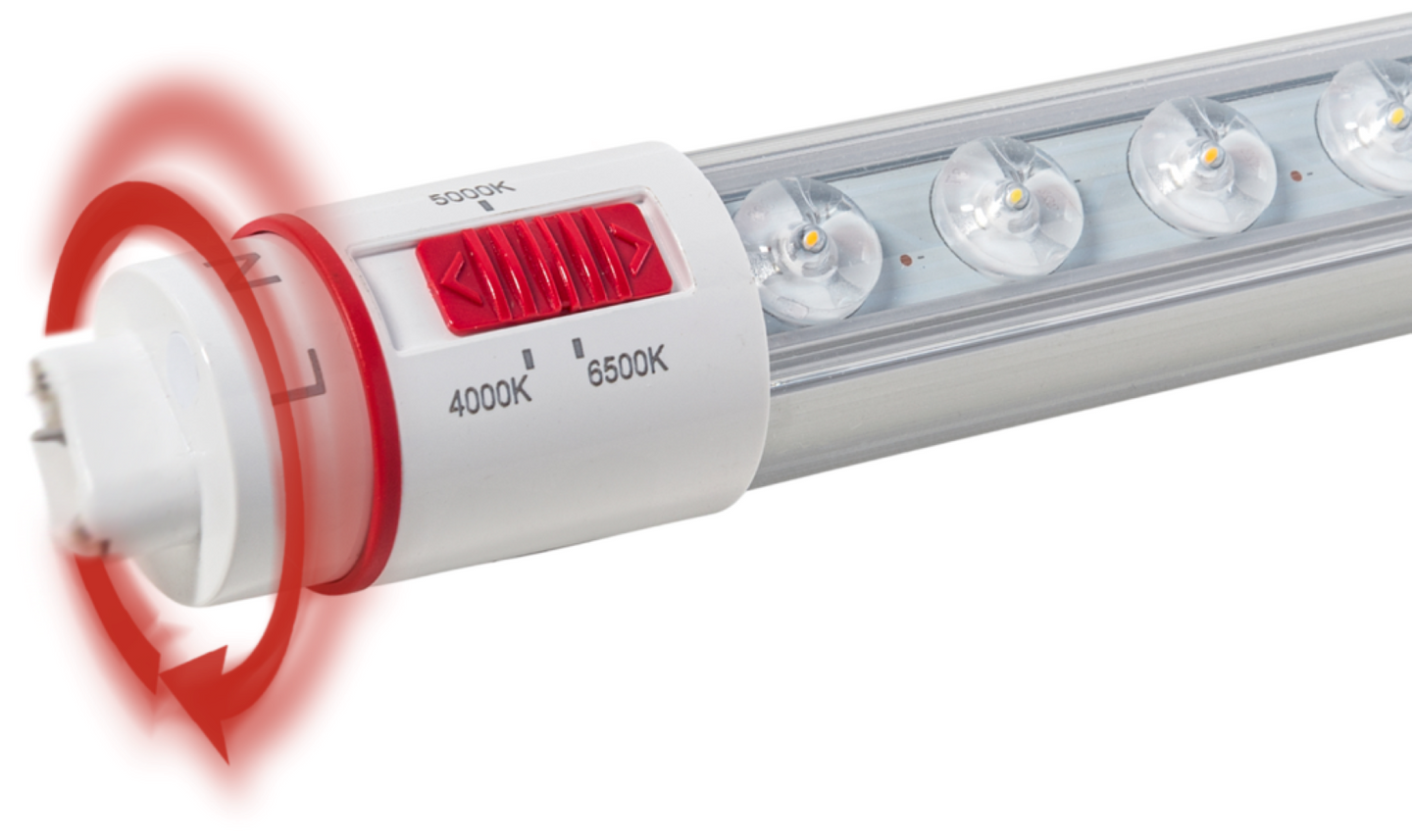

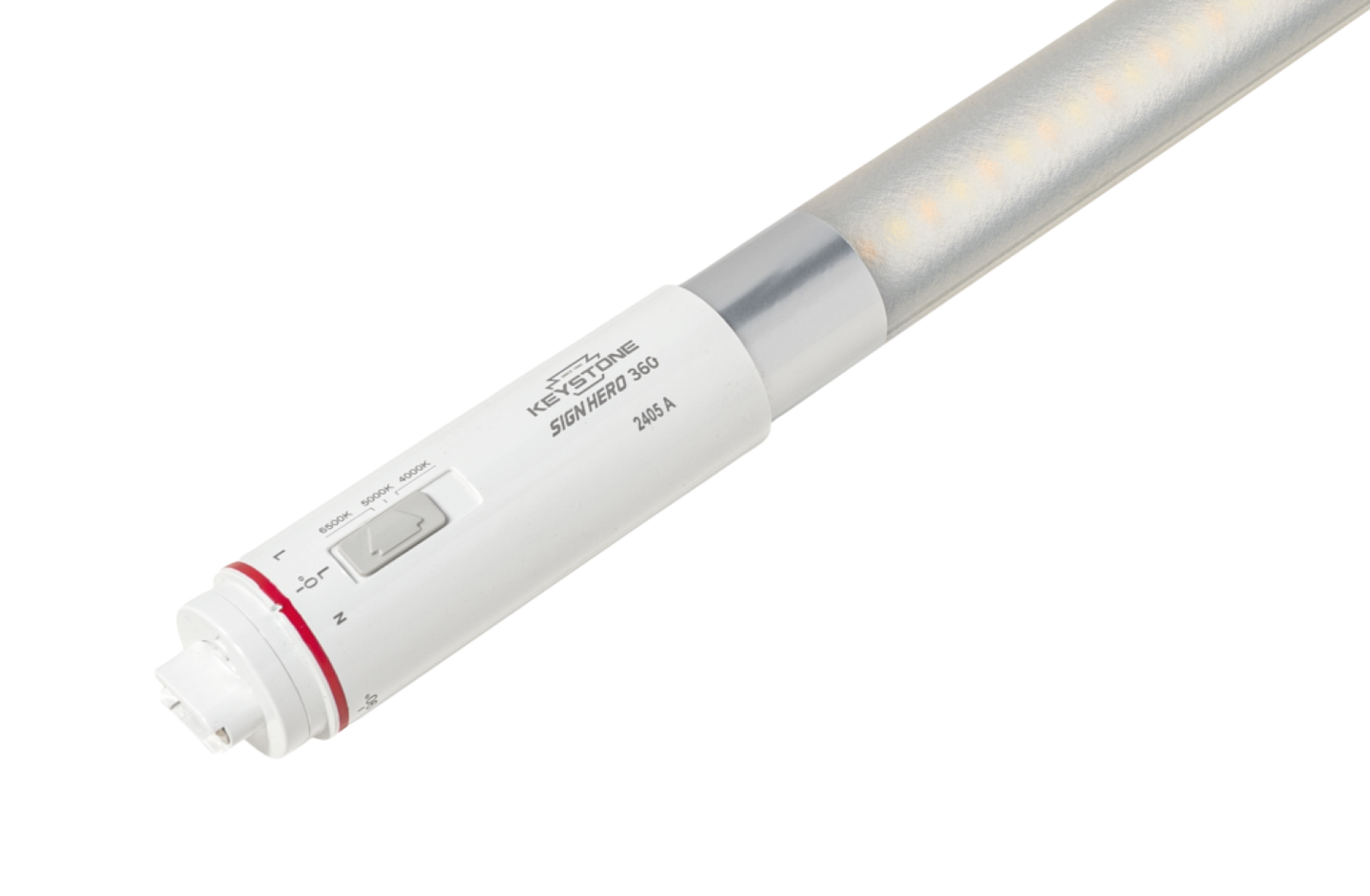

Selectable Color Temperature – 4000K / 5000K / 6500K

Every Sign Hero lamp offered on this page features Keystone Color Select Technology, allowing the installer to select the desired color temperature directly on the lamp.

Choose between:

  • 4000K – Neutral / Cool White

  • 5000K – Bright Daylight White

  • 6500K – Cool Daylight

This field-selectable design gives installers more flexibility without requiring separate lamps for each color temperature.

Selectable Wattage

Keystone's Power Select Technology allows each lamp to operate at multiple wattage levels, making it easier to adjust brightness and power consumption based on the depth, size, and illumination requirements of the sign cabinet.

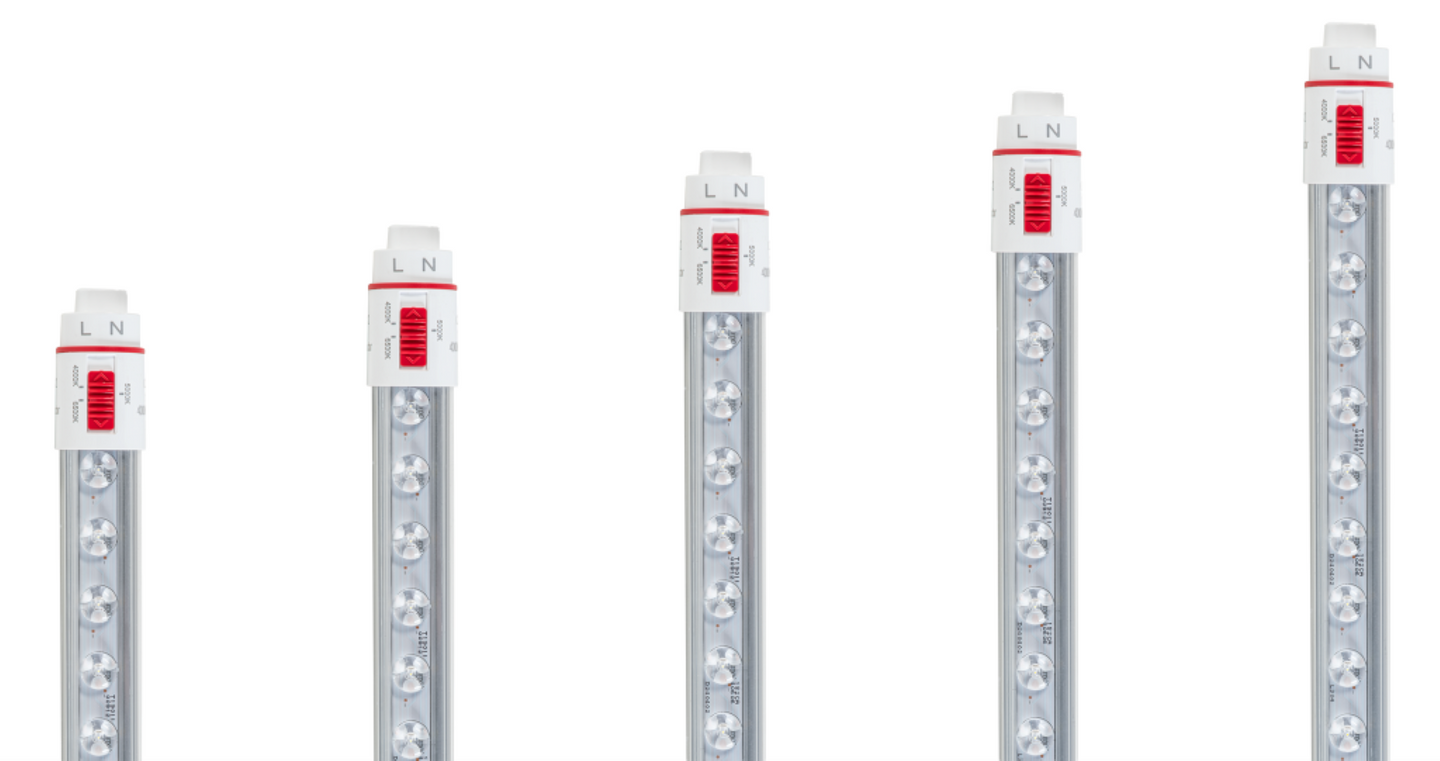

Available Lamp Sizes

CrafterNV currently offers the following Sign Hero Direct Wire lamp sizes:

Length Keystone Part Number Selectable Wattage Lumens
48" KT-LED23PST8-48P2SO-8CSK-DW 12W / 21W / 23W 1,690 lm
60" KT-LED29PST8-60P2SO-8CSK-DW 14W / 26W / 29W 2,060 lm
64" KT-LED32PST8-64P2SO-8CSK-DW 16W / 28W / 32W 2,230 lm
72" KT-LED37PST8-72P2SO-8CSK-DW 17W / 31W / 37W 2,480 lm
84" KT-LED41PST8-84P2SO-8CSK-DW 21W / 37W / 41W 3,030 lm

All lamp sizes feature 4000K / 5000K / 6500K selectable CCT.

Need a Sign Hero lamp longer than 84"? Additional Sign Hero Direct Wire lamp sizes are available. For lengths over 84", please visit Montroy.com.

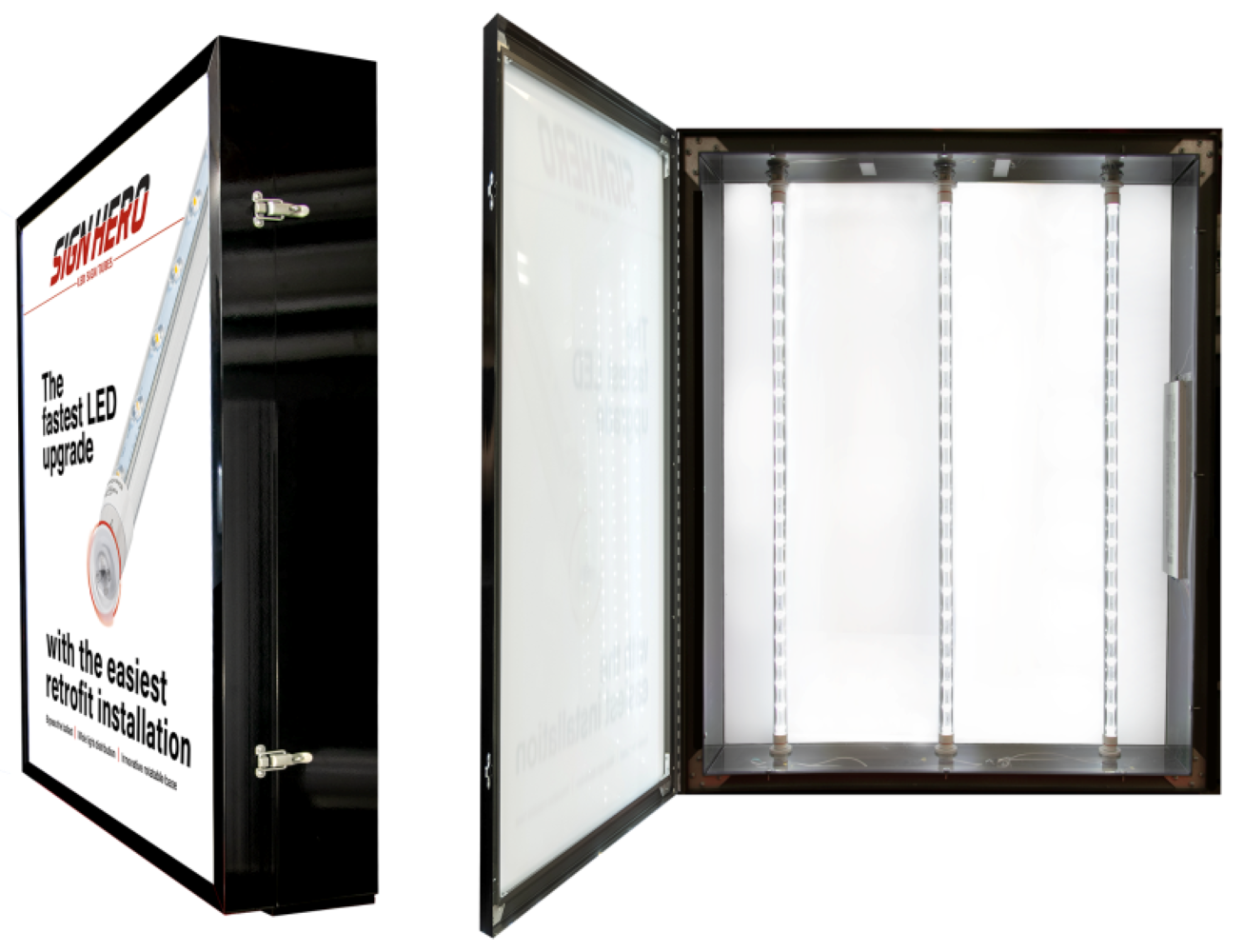

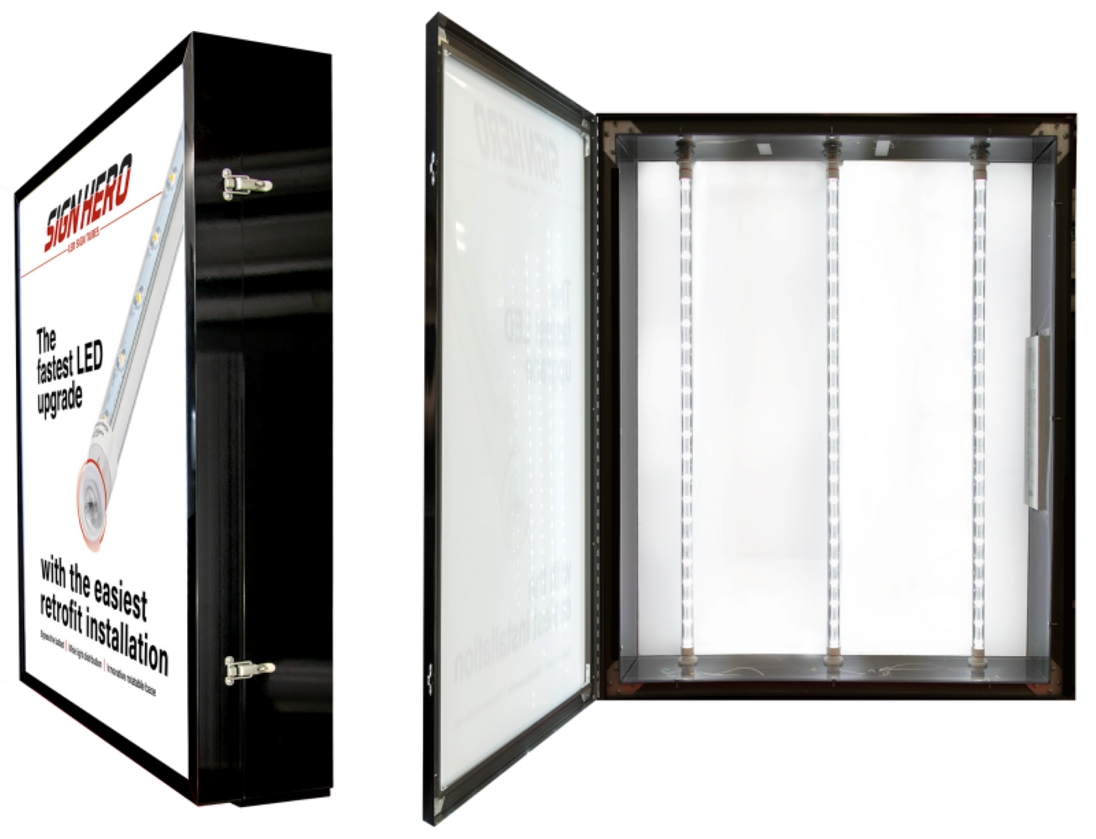

360° LED Sign Cabinet Illumination

Sign Hero lamps are specifically engineered for internally illuminated signs.

The clear optical lens and 360-degree light distribution help spread illumination throughout the sign cabinet for more uniform light across the sign face while reducing visible hot spots.

They are well suited for:

  • Double-sided sign cabinets

  • Pylon signs

  • Pole signs

  • Monument signs

  • Storefront cabinet signs

  • Commercial illuminated signs

  • Fluorescent sign retrofits

  • New sign construction

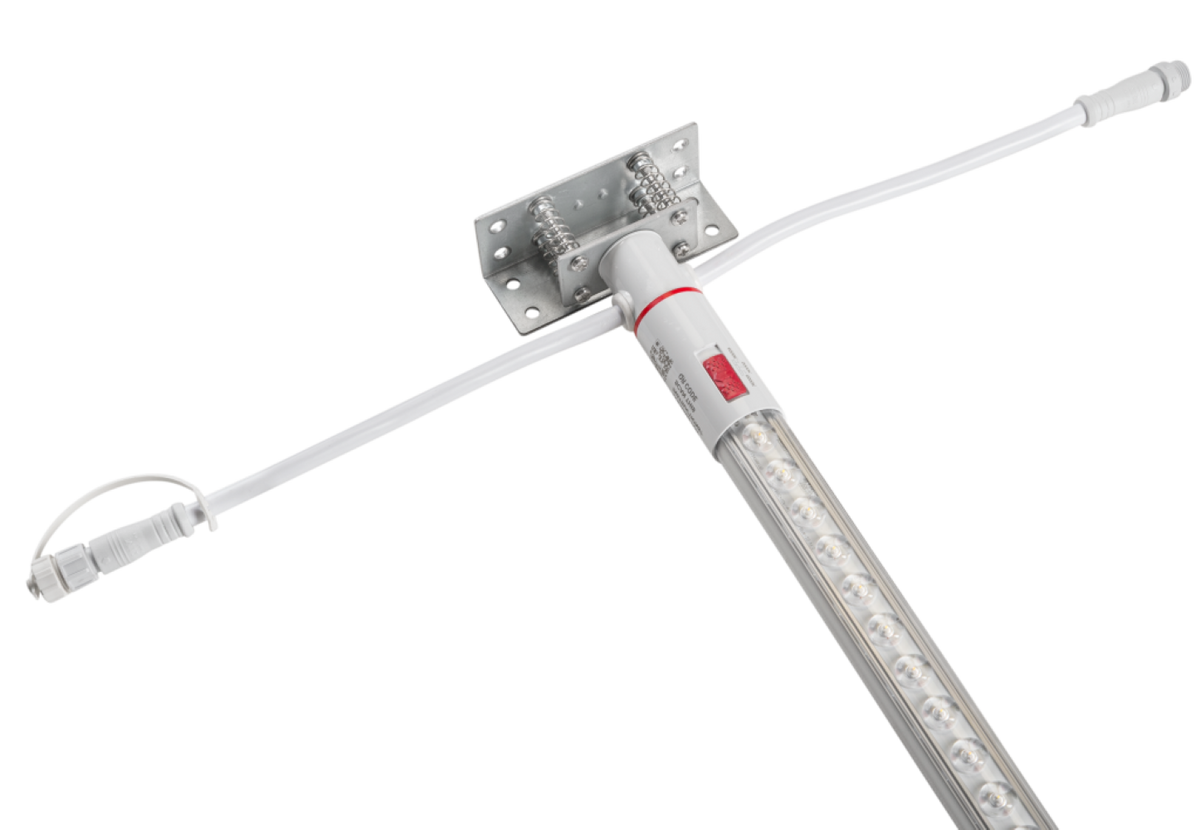

Direct Wire 120–277V Design

Sign Hero Direct Wire lamps operate on 120–277V line voltage and feature an integrated power supply.

The system eliminates the need for a conventional fluorescent ballast and uses Keystone's Sign Hero direct-wire connection system for professional sign installations.

Key Features

  • Keystone Sign Hero Direct Wire LED technology

  • Selectable 4000K / 5000K / 6500K CCT

  • Selectable wattage / Power Select Technology

  • 360° LED illumination

  • Designed for double-sided illuminated sign cabinets

  • Clear optical lens

  • 120–277V direct-wire input

  • Integrated LED driver

  • Single-ended design

  • Multiple lamp lengths

  • Designed for new sign construction and retrofit applications

  • Helps replace traditional fluorescent sign lighting

  • Professional commercial sign-lighting solution

  • Available in 48", 60", 64", 72", and 84" lengths on CrafterNV

Accessories Sold Separately

Mounting brackets, lead cables, extension cables, surge protection, and other installation accessories are sold separately and are not included with the LED lamps.

Select accessories are available as options on this product page.

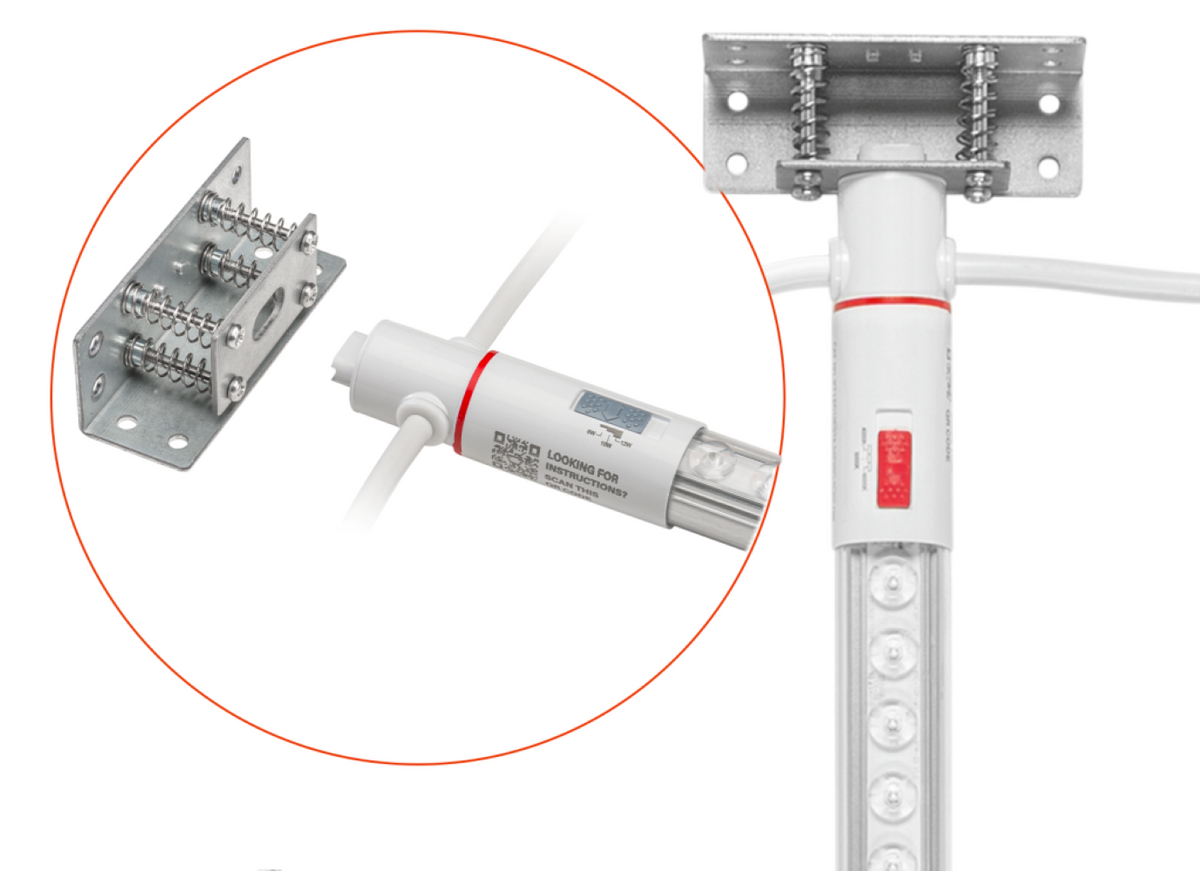

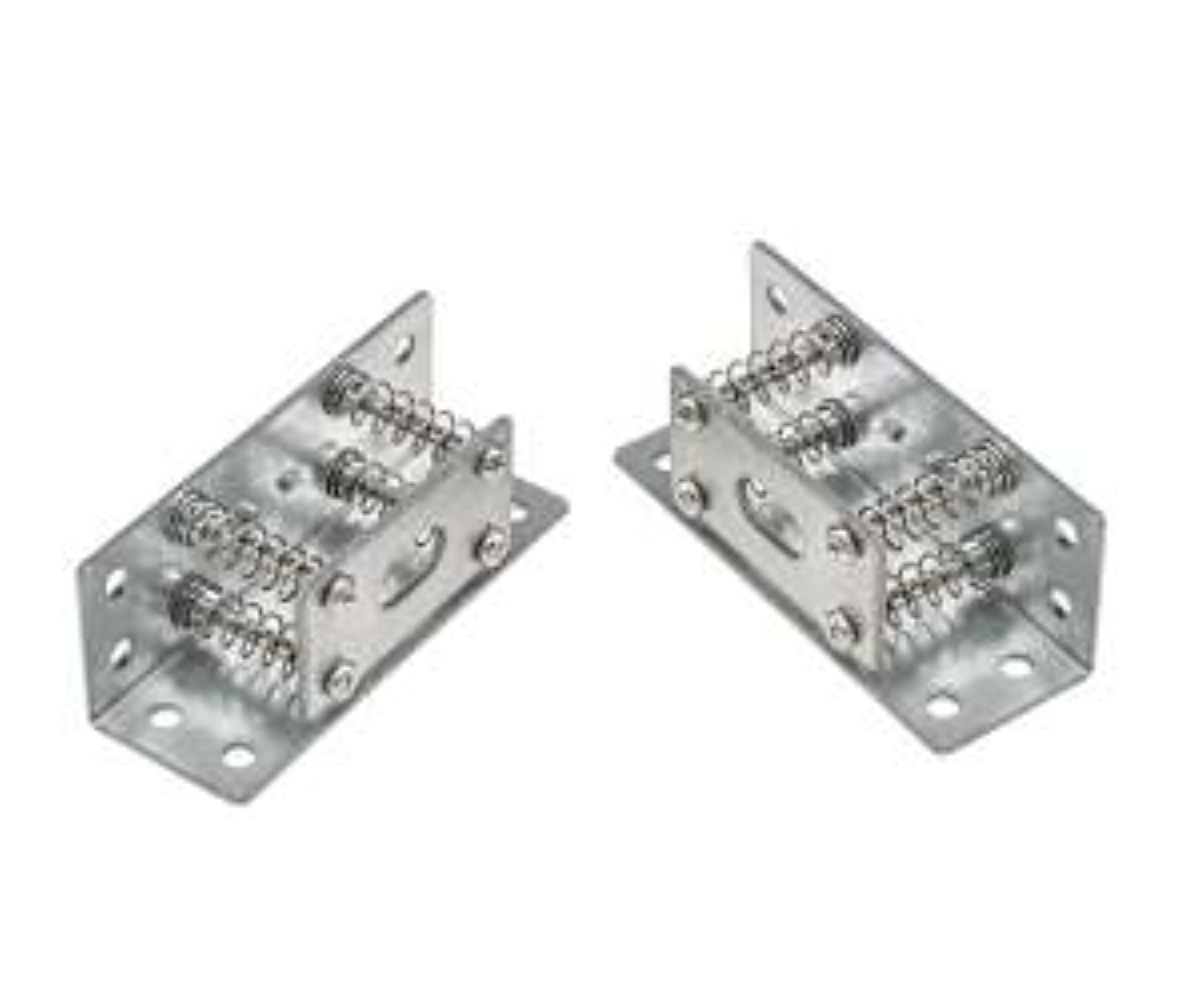

KTDWMB – 90° Mounting Brackets – 2 Pack
Keystone 90-degree aluminum mounting brackets with XL spring-loaded lamp holders.

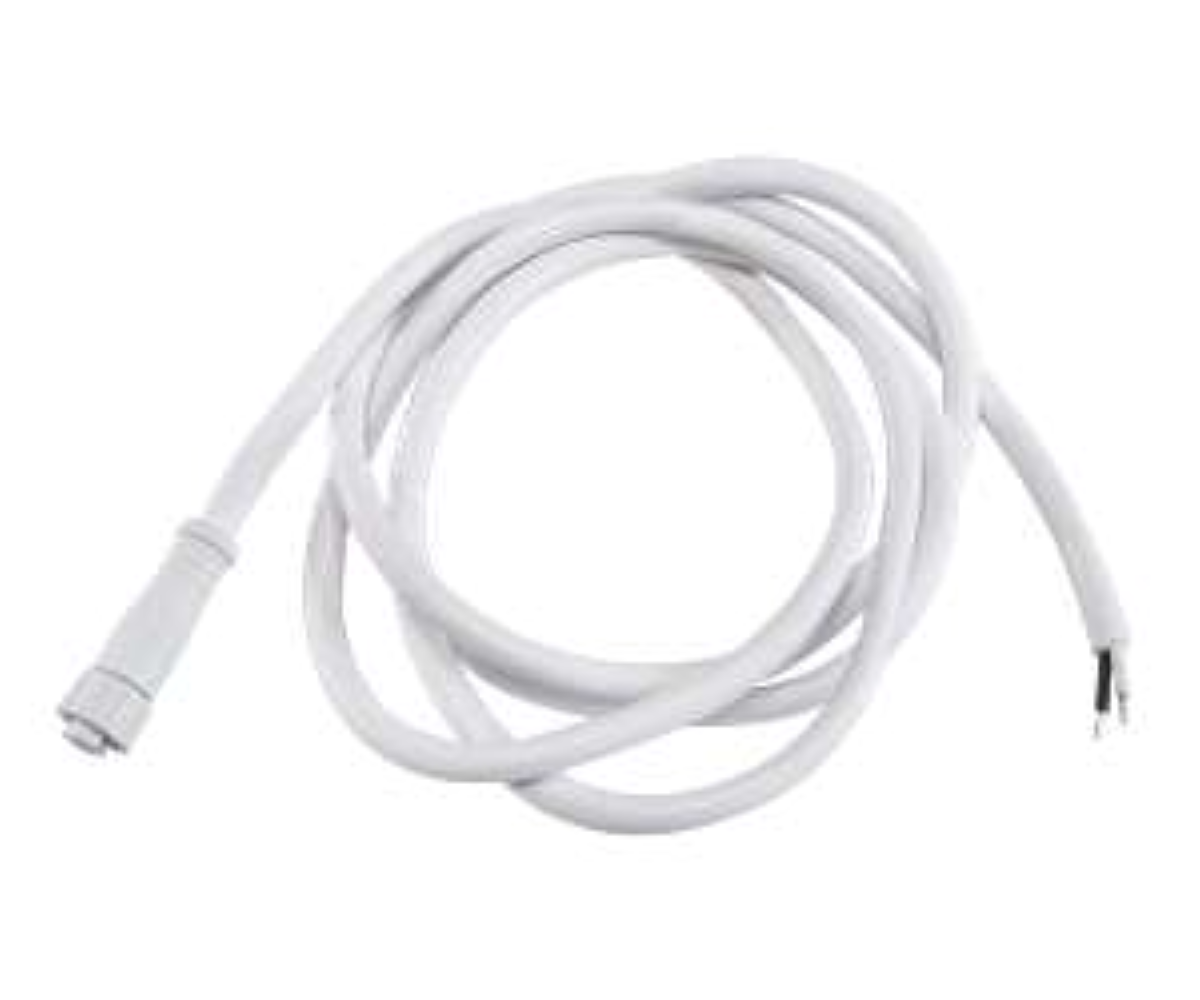

KTDW6LC – 6' Lead Cable
Six-foot incoming lead cable used to supply power to the Sign Hero Direct Wire system.

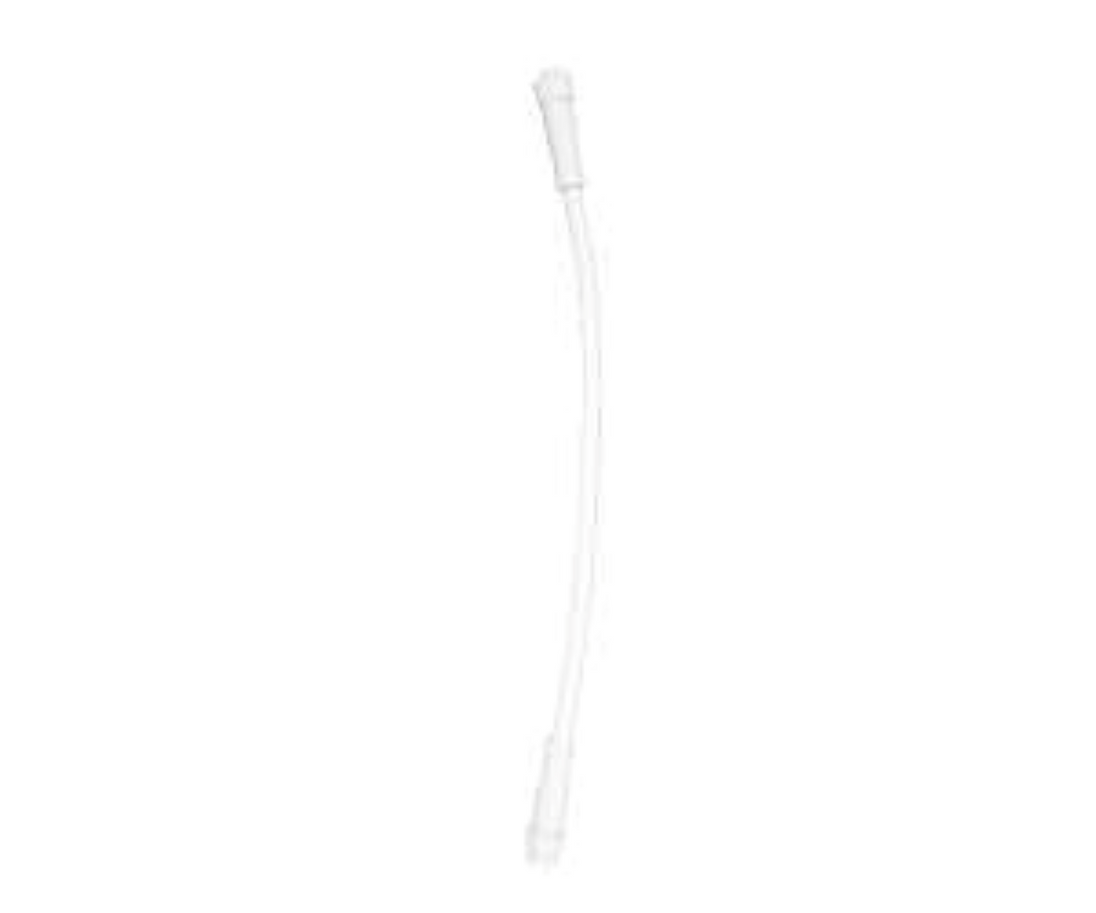

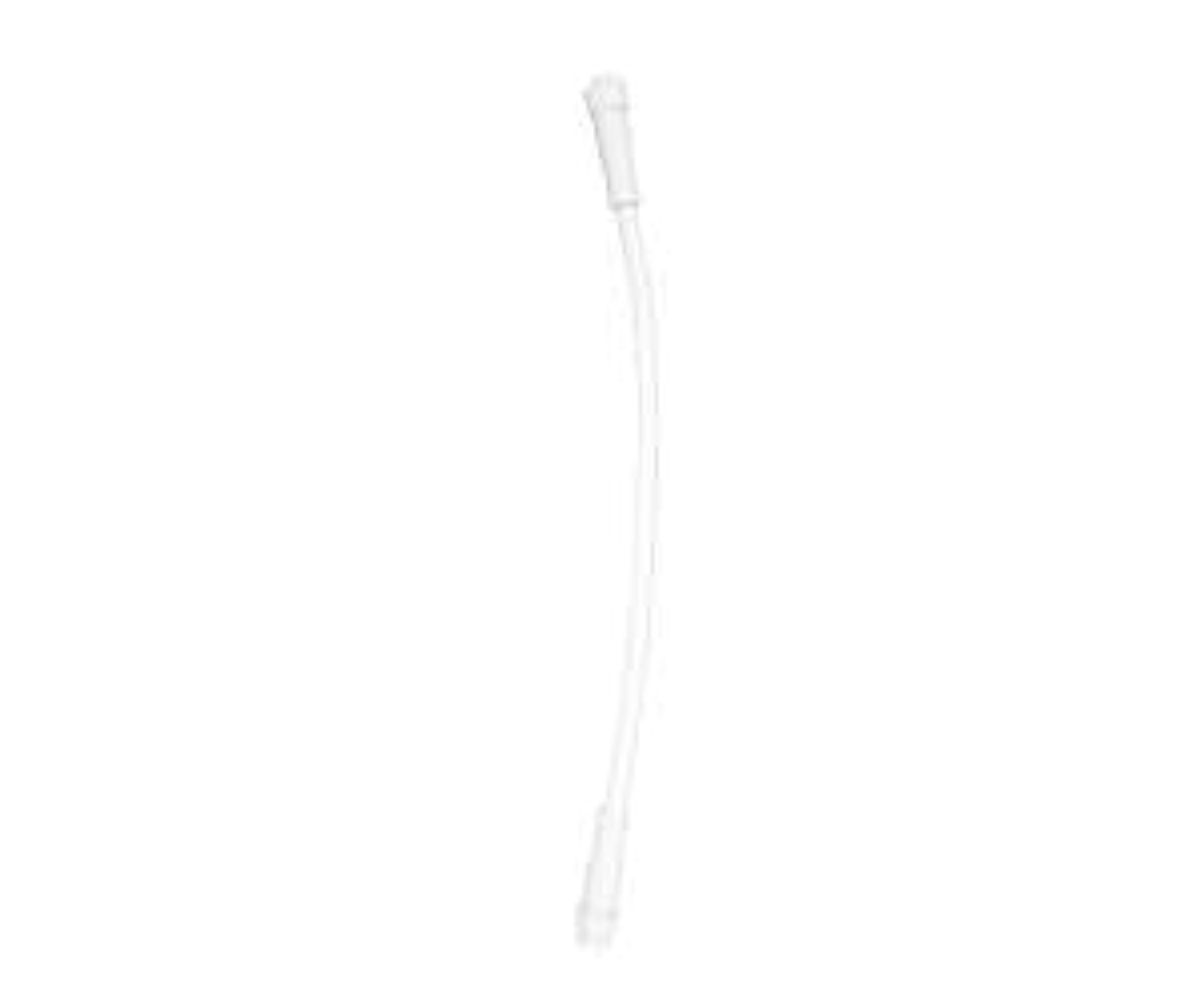

KTDW12EXT – 12" Extension Cable
12-inch extension cable with connectors for extending connections between Sign Hero system components.

KTDWSP – External Surge Protector
External surge protection accessory for Sign Hero Direct Wire installations.

Ideal for Fluorescent-to-LED Sign Conversions

Keystone Sign Hero Direct Wire lamps provide a modern LED alternative for many traditional fluorescent sign-lighting applications.

They are particularly useful for professional sign cabinet retrofits where installers want:

  • Reduced dependence on fluorescent ballasts

  • Selectable light output

  • Multiple selectable color temperatures

  • Consistent sign-face illumination

  • Fewer lamp configurations to stock

  • Direct-wire LED operation

  • Long-lasting commercial LED technology

Ordering Information

Choose the required lamp length or accessory from the options above.

Lamps and accessories are sold individually unless otherwise stated.

Because mounting brackets, lead cables, extension cables, and surge protection are sold separately, verify the components required for your installation before ordering.

For Sign Hero Direct Wire lamp sizes longer than 84 inches, please visit Montroy.com.
