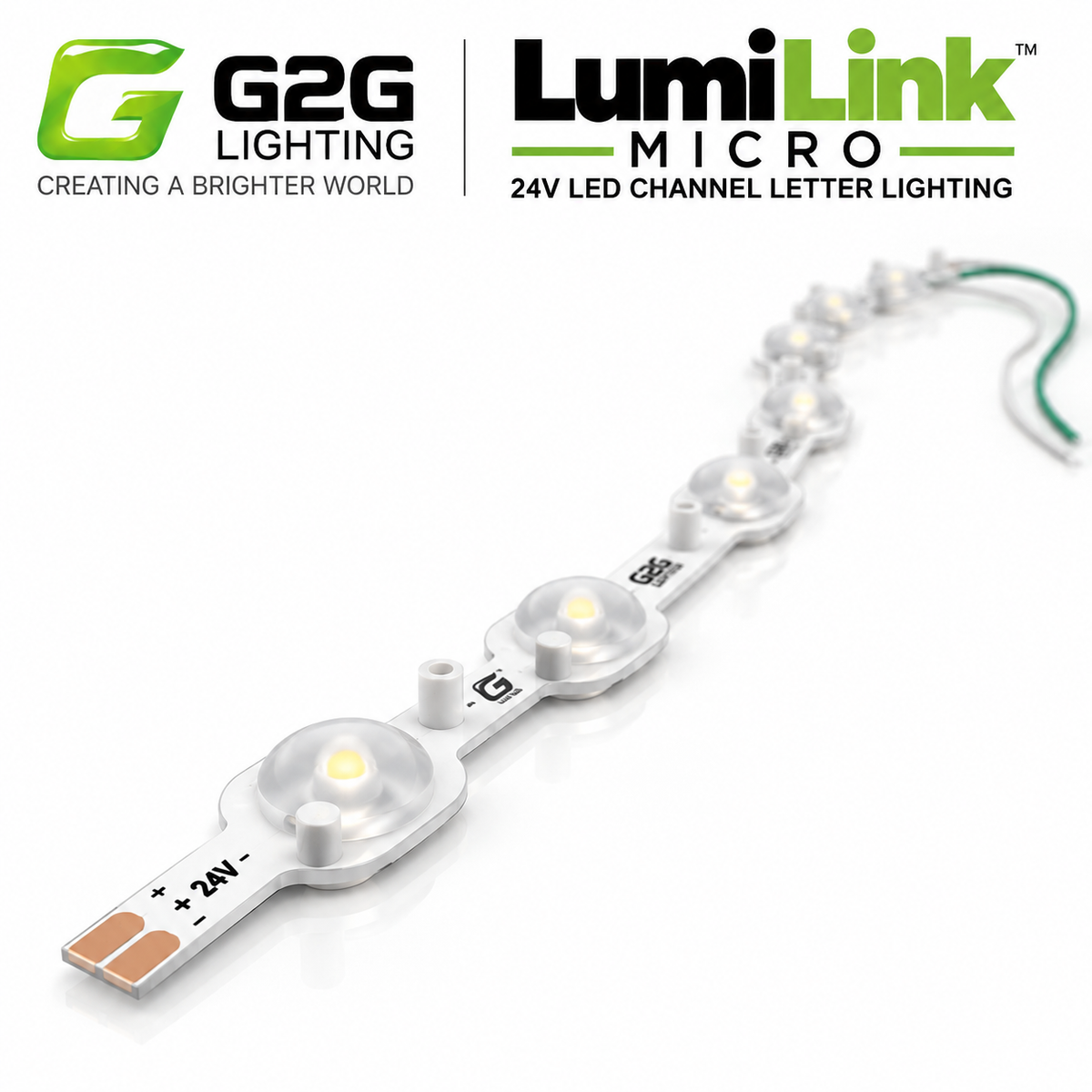

  • A 24V LED channel letter light strip by LumiLink Micro, featuring multiple illuminated dome LEDs on a white flexible carrier with green and white wire leads, shown on a white background with G2G Lighting branding at the top.
  • An illuminated LED channel letter light shaped like the letter R, shown on a dark promotional graphic with branding for CrafterNV and LumiLink, plus feature callouts and example applications including logos, signs, and architectural signage.
  • Promotional graphic for LumiLink Micro 24V LED channel letter lighting showing eight color options in a grid: warm white, white, cool white, sign white, red, green, blue, and yellow. The image includes the CrafterNV and LumiLink branding, feature icons, and a dark background.
  • Technical specification sheet for LumiLink Micro 24V LED channel letter lighting by CrafterNV, showing dimensions, power ratings, IP65 water resistance, and a sample strip of illuminated LEDs on a dark background.
LumiLink Micro G2.0 LED channel letter lighting strip shown on a dark reflective surface, with the CrafterNV branding at the top and color option thumbnails along the bottom.
A 24V LED channel letter light strip by LumiLink Micro, featuring multiple illuminated dome LEDs on a white flexible carrier with green and white wire leads, shown on a white background with G2G Lighting branding at the top.
An illuminated LED channel letter light shaped like the letter R, shown on a dark promotional graphic with branding for CrafterNV and LumiLink, plus feature callouts and example applications including logos, signs, and architectural signage.
Promotional graphic for LumiLink Micro 24V LED channel letter lighting showing eight color options in a grid: warm white, white, cool white, sign white, red, green, blue, and yellow. The image includes the CrafterNV and LumiLink branding, feature icons, and a dark background.
Technical specification sheet for LumiLink Micro 24V LED channel letter lighting by CrafterNV, showing dimensions, power ratings, IP65 water resistance, and a sample strip of illuminated LEDs on a dark background.

G2G LumiLink Micro 24V LED Channel Letter Lighting is an ultra-compact, flexible LED lighting system designed for extremely shallow channel letters, narrow strokes, tight curves, illuminated logos, and specialty sign applications where conventional LED modules may be too large.

Part of the G2G LumiLink Series, LumiLink Micro uses a flexible, single-sided design that allows the lighting to follow curves, corners, and complex shapes while maintaining consistent LED spacing.

With 12 LEDs per foot, 2-inch cut intervals, and 160° wide optics, LumiLink Micro gives professional sign fabricators excellent control when illuminating small, shallow, and complex sign designs.

Key Features & Benefits

  • 24VDC operation
  • 2 watts per foot
  • 12 LEDs per foot
  • 160° wide optics
  • 2-inch cut intervals
  • Ultra-compact, single-sided design
  • Flexible construction follows tight curves and corners
  • Designed for extremely shallow channel letters
  • Excellent for narrow strokes and complex shapes
  • IP65 water resistant
  • UV-resistant construction
  • 3M adhesive mounting
  • Eight available color options
  • 5-year manufacturer warranty
  • Professional sign-grade LED lighting

Ideal Applications

LumiLink Micro is an excellent choice for:

  • Ultra-shallow channel letters
  • Small channel letters
  • Narrow letter strokes
  • Tight curves and corners
  • Illuminated logos
  • Sign cabinets
  • Complex illuminated shapes
  • Specialty fabricated signs
  • Architectural signage
  • LED sign retrofits

Its compact construction and high LED density make LumiLink Micro particularly useful when space inside the letter or sign is limited.

Available Colors & Our Part Numbers

Color / Color Temperature Our Part # Package
7100K Sign White LM3001 40FT/Bag
6300K Cool White LM3002 40FT/Bag
2700K Warm White LM3003 40FT/Bag
Red LM3004 40FT/Bag
Green LM3005 40FT/Bag
Blue LM3006 40FT/Bag
Yellow LM3007 40FT/Bag
5000K White LM3008 40FT/Bag

Technical Specifications

Specification LumiLink Micro
Input Voltage 24VDC
Power Consumption 2W/ft
LED Density 12 LEDs/ft
Optical Angle 160°
Cut Interval 2"
Protection Rating IP65
Mounting 3M Adhesive Tape
Material Per Roll 20 ft
Rolls Per Bag 2
Total Material 40 ft/bag
LEDs / Modules Per Bag 480
Warranty 5 Years

Designed for Ultra-Shallow Channel Letters

LumiLink Micro is designed for applications where installation space is extremely limited. Its compact, flat, single-sided construction allows it to fit into shallow letters and narrow strokes where larger conventional LED modules may be difficult to install.

The 12 LEDs per foot provide closely spaced illumination, while the 160° wide optics help distribute light across the sign face for smooth, consistent illumination.

Flexible Design for Tight Curves

The flexible LumiLink Micro construction makes it easy to follow curves, corners, and irregular shapes.

Its 2-inch cut intervals give fabricators greater control over section length, making Micro especially useful for smaller letters and intricate illuminated designs.

Packaging

Each bag contains:

  • 40 total feet
  • 2 × 20 ft rolls
  • 480 LEDs/modules per bag
  • 12 LEDs per foot

Compatible LumiLink Micro Accessories

LMA1005 – LumiLink Micro Power Pin (18")
Provides the power connection between LumiLink Micro and a compatible 24V power supply.

Package: 10 sets per bag
Sold by: Bag

LMA2001 – LumiLink Micro Jumper Pin (4")
Provides a flexible 4-inch connection between separate LumiLink Micro sections. Ideal for bridging gaps, corners, transitions, and areas where continuous LED material isn't required.

Package: 10 sets per bag
Sold by: Bag

Accessories are sold separately.

Power Supply Requirements

LumiLink Micro operates on 24VDC and requires a compatible 24V constant-voltage LED power supply, sold separately.

At 2 watts per foot, a complete 40-foot bag represents approximately 80 watts of connected LED load when all material is used. Power supplies should be appropriately sized for the installed footage and according to manufacturer loading requirements.
