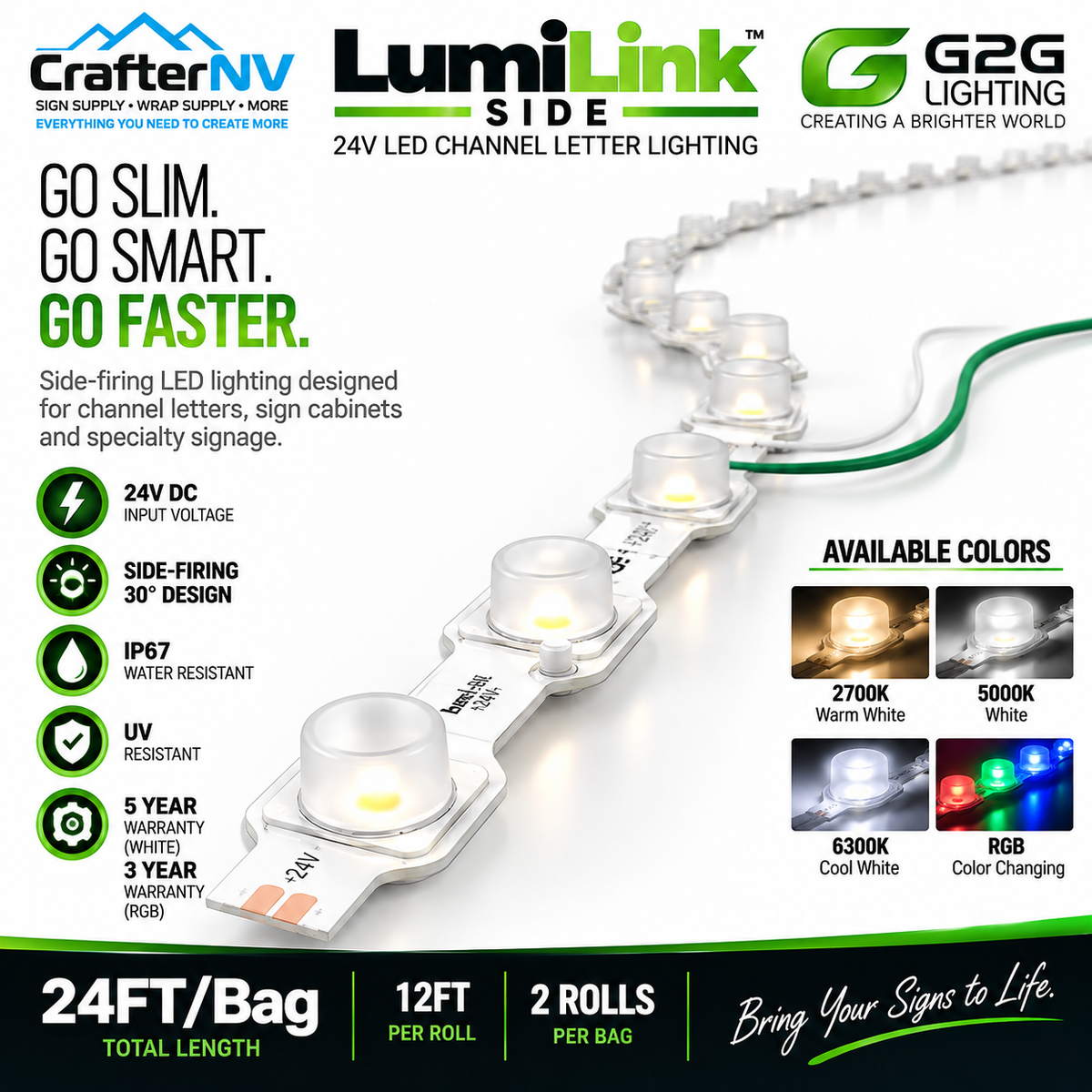

G2G LumiLink Side 24V LED Channel Letter Lighting is a flexible, side-firing LED lighting system designed for channel letters, sign cabinets, narrow returns, and specialty illuminated signage where light needs to be directed from the side rather than straight toward the sign face.

Part of the G2G LumiLink Series, LumiLink Side combines a slim flexible construction with a 30° optical design, allowing sign fabricators to create bright, efficient illumination in applications where conventional face-firing LED modules may not be the ideal solution.

Available in 6300K, 5000K, 2700K, and RGB, LumiLink Side provides professional sign shops with both white and color-changing options from the same flexible product family.

Key Features & Benefits

  • 24VDC operation
  • Side-firing LED design
  • 30° viewing angle
  • Flexible linked construction
  • Designed for channel letters and sign cabinets
  • Excellent for slim and specialty sign construction
  • 8 LEDs per foot on white versions
  • 6 LEDs per foot on RGB
  • 3" cut intervals on white versions
  • 4" cut intervals on RGB
  • IP67 protection rating
  • UV resistant
  • 3M adhesive mounting
  • 50,000-hour L80 rating
  • 5-year warranty on white versions
  • 3-year warranty on RGB
  • 24 ft per bag

G2G's current specification sheet confirms the 24V input, 30° design, IP67 protection, 3M tape, UV resistance and the different white/RGB power, LED-density and cut-interval specifications.

Ideal Applications

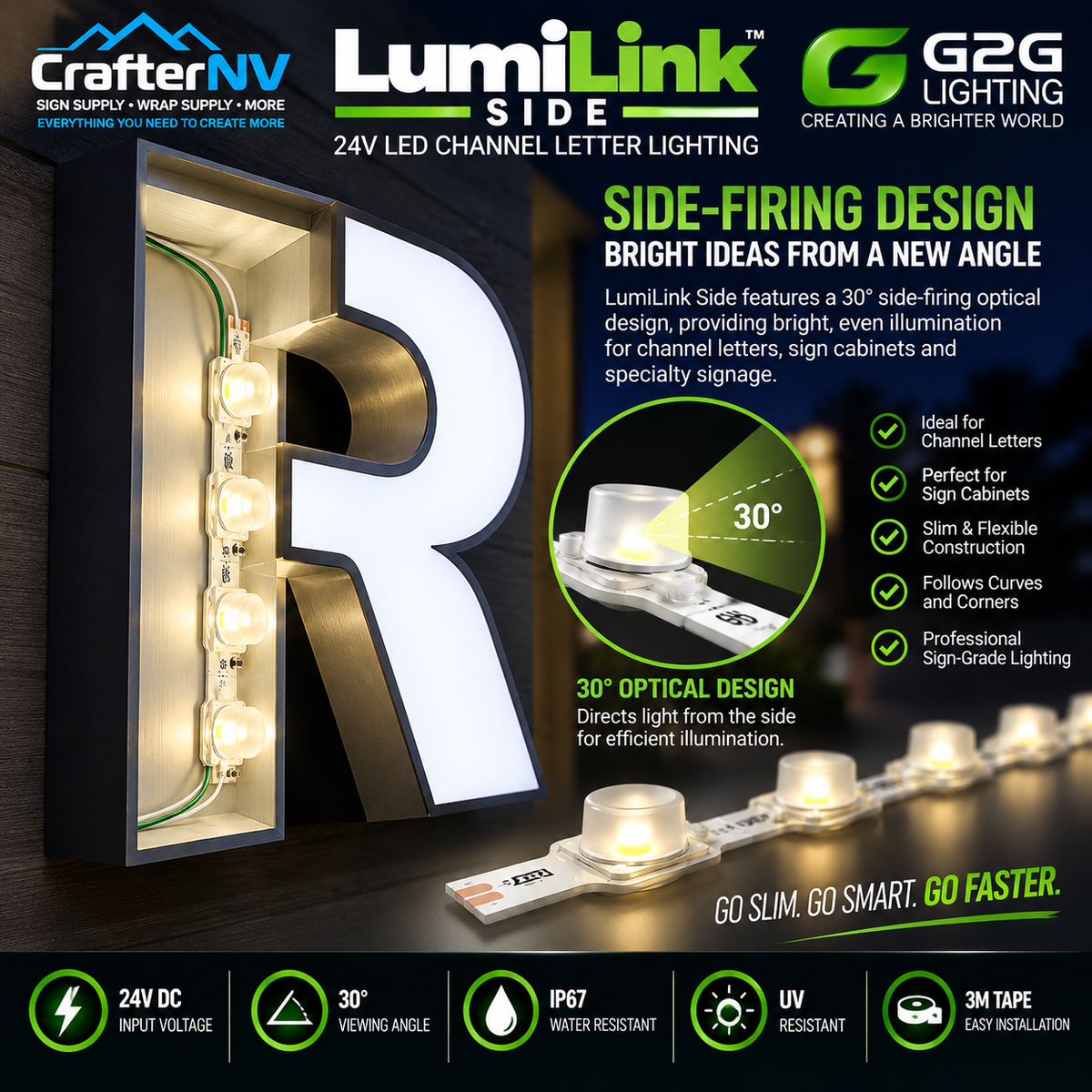

LumiLink Side is designed for professional illuminated-sign applications including:

  • Channel letters
  • Shallow and slim channel letters
  • Narrow letter strokes
  • Sign cabinets
  • Illuminated logos
  • Specialty fabricated signs
  • Architectural signage
  • LED sign retrofits
  • Applications requiring side-directed illumination

Its flexible construction allows the strip to follow curves and complex shapes while the side-firing optical design provides another lighting option for sign configurations where conventional upward-facing modules are difficult to use.

Available Options & Our Part Numbers

Color / Color Temperature Our Part # Package
6300K Cool White LM5001 24FT/Bag
5000K White LM5002 24FT/Bag
2700K Warm White LM5003 24FT/Bag
RGB LM6001 24FT/Bag

Your pricing sheet also contains 10° versions — LM7001, LM7002 and LM7003. I would not combine those into this product yet. The G2G sheet you supplied identifies the standard LumiLink Side as a 30° design, while your price sheet specifically labels LM7001–LM7003 as 10°. Those appear to be a distinct optical configuration and are better treated separately unless G2G documentation confirms they belong on this same product page.

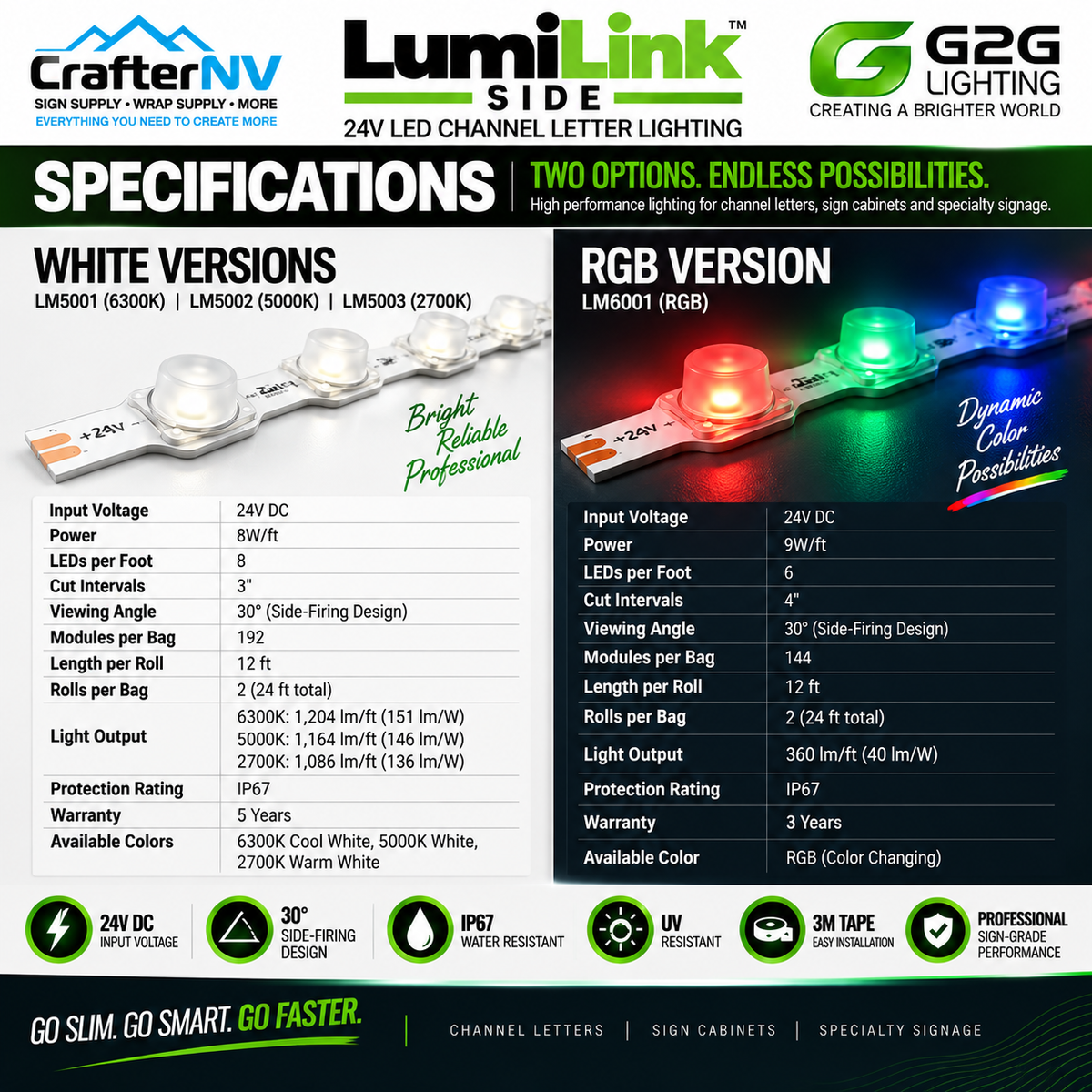

White LumiLink Side Specifications

Specification White Versions
Our Part #s LM5001 / LM5002 / LM5003
Input Voltage 24VDC
Power 8W/ft
LED Density 8 LEDs/ft
Viewing Angle 30°
Cut Interval 3"
Protection Rating IP67
Length Per Roll 12 ft
Rolls Per Bag 2
Total Length 24 ft
Modules Per Bag 192
Mounting 3M Tape
L80 Rating 50,000 Hours
Warranty 5 Years
Operating Temperature -40°C to +50°C

White Light Output

Color Temperature Light Output Efficacy
6300K – LM5001 1,204 lm/ft 151 lm/W
5000K – LM5002 1,164 lm/ft 146 lm/W
2700K – LM5003 1,086 lm/ft 136 lm/W

Those output figures are particularly good information to include because they give commercial sign shops something concrete to compare instead of simply saying the LEDs are "bright."

RGB LumiLink Side Specifications

Specification RGB
Our Part # LM6001
Input Voltage 24VDC
Power 9W/ft
LED Density 6 LEDs/ft
Viewing Angle 30°
Cut Interval 4"
Protection Rating IP67
Length Per Roll 12 ft
Rolls Per Bag 2
Total Length 24 ft
Modules Per Bag 144
Light Output 360 lm/ft
Efficacy 40 lm/W
Mounting 3M Tape
L80 Rating 50,000 Hours
Warranty 3 Years

The manufacturer's sheet shows the RGB version at 9W/ft, six LEDs per foot, 4-inch cutting intervals, 144 modules per 24-ft bag and 360 lm/ft.

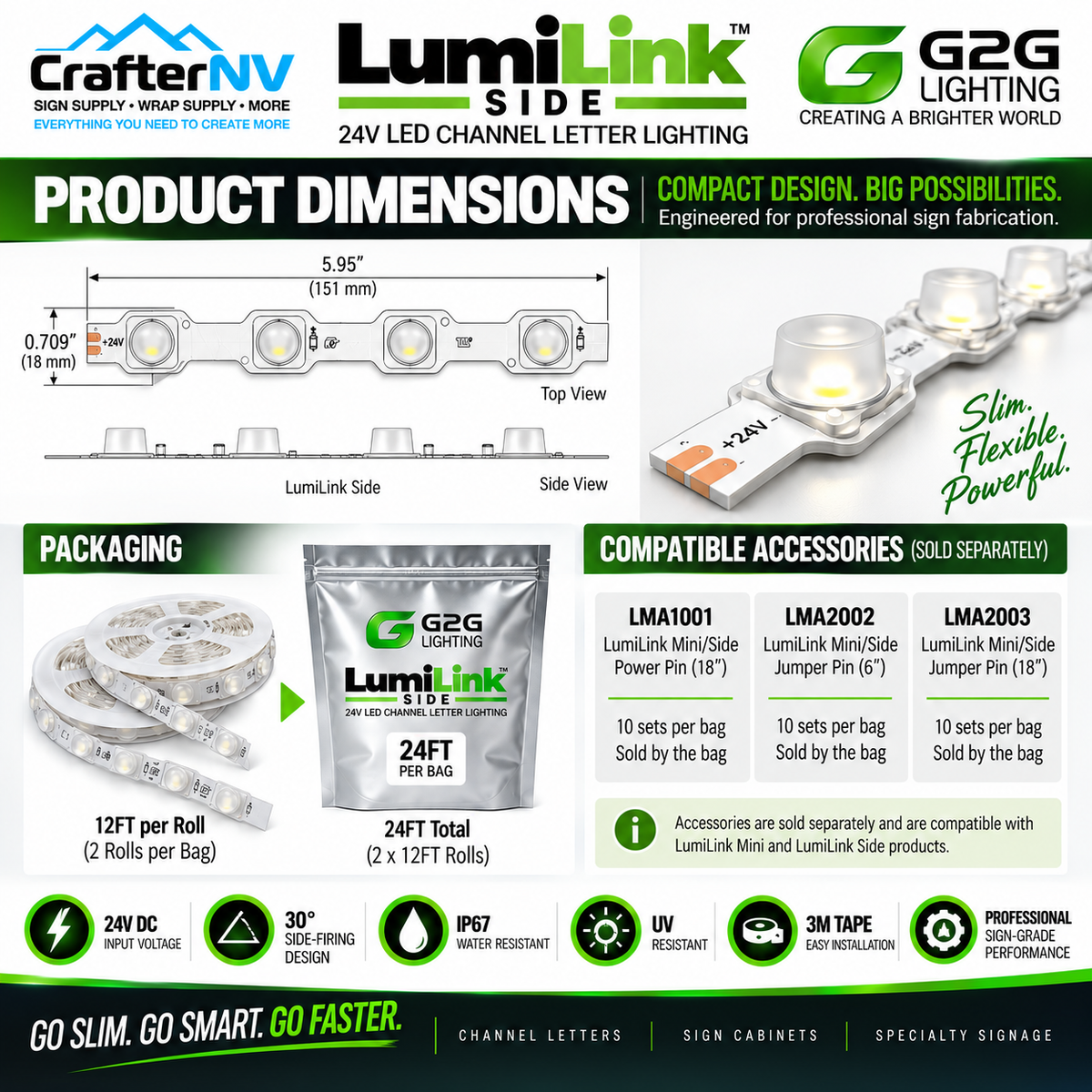

Dimensions

The G2G drawing shows a section measuring approximately:

5.95" long × 0.709" wide

The drawing represents four white LED positions across the 5.95-inch section.

Compatible LumiLink Side Accessories

Only these three highlighted Mini/Side accessories should go on this listing:

LMA1001 – LumiLink Mini/Side Power Pin (18")
Provides the power connection for compatible LumiLink Mini/Side installations.

Package: 10 sets per bag
Sold by: Bag

LMA2002 – LumiLink Mini/Side Jumper Pin (6")
Provides a 6-inch flexible connection between separate compatible LumiLink sections.

Package: 10 sets per bag
Sold by: Bag

LMA2003 – LumiLink Mini/Side Jumper Pin (18")
Provides an 18-inch flexible connection for larger gaps or transitions between compatible LumiLink sections.

Package: 10 sets per bag
Sold by: Bag

Accessories are sold separately.

I would not include LMA1003/LMA2004/LMA2005 (Tunable White) or LMA1005/LMA2001 (Micro).

Power Supply Requirements

LumiLink Side operates on 24VDC and requires an appropriately sized compatible 24V LED power supply.

Power requirements depend on the selected version:

White: 8W per foot
RGB: 9W per foot

A full 24-ft bag therefore represents up to approximately 192W for White or 216W for RGB if the entire bag is installed. Power supplies should be sized according to the actual installed footage and G2G's loading requirements.
