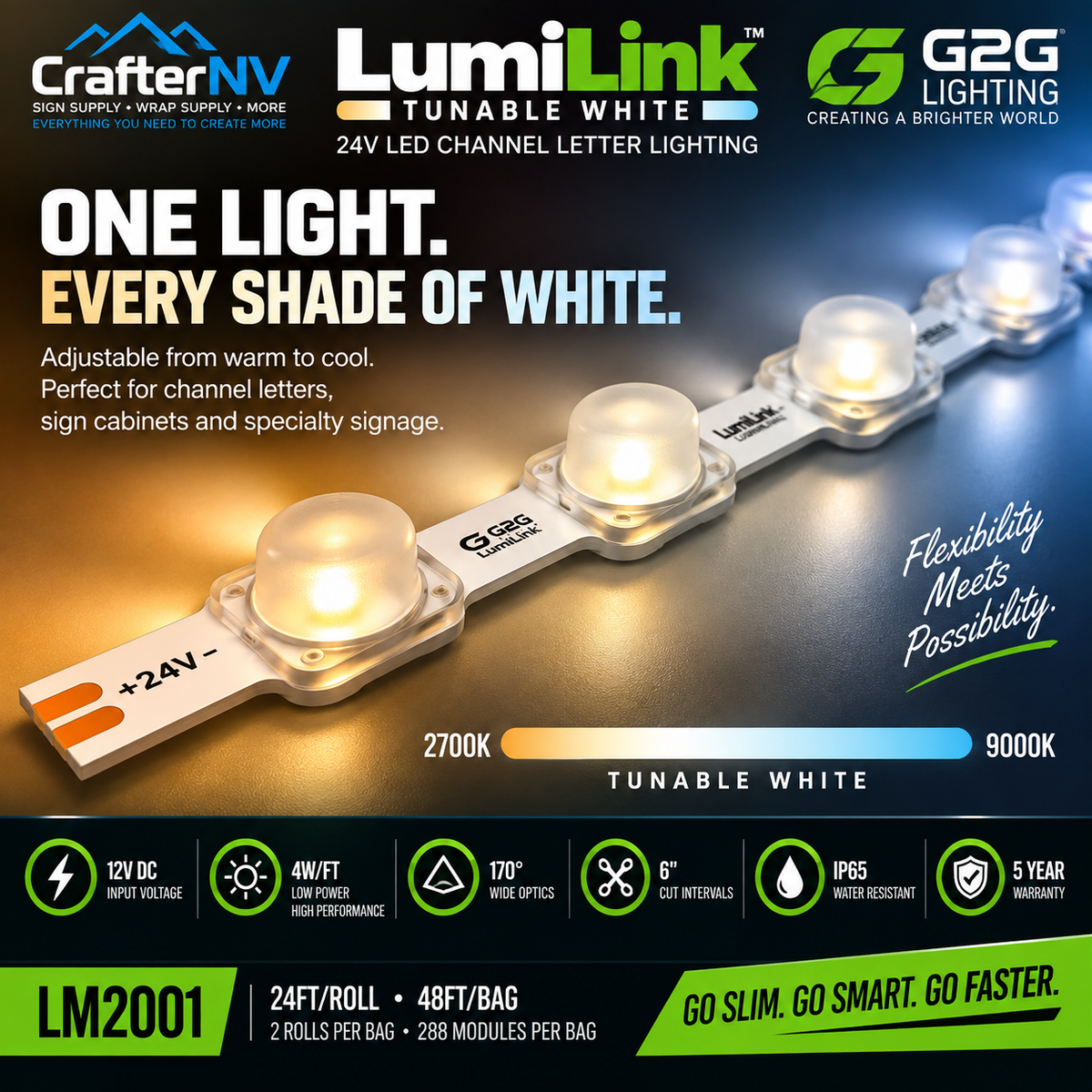

G2G LumiLink Tunable White LED Channel Letter Lighting gives sign fabricators the ability to adjust the color temperature of their illumination from a warm 2700K all the way to an ultra-cool 9000K using a compatible tunable-white control system.

Instead of selecting one fixed white color temperature, LumiLink Tunable White allows the finished sign's white appearance to be adjusted to complement the sign face, surrounding lighting, architectural environment, or customer's preferred appearance.

Designed for channel letters, sign cabinets, illuminated logos, and specialty signage, the flexible LumiLink construction makes installation easier around curves and complex shapes while delivering professional sign-grade illumination.

Key Features & Benefits

• Tunable White: 2700K–9000K
• Adjust from warm white to ultra-cool white
• 12VDC operation
• 4 watts per foot
• 6 LEDs per foot
• 170° wide optical design
• 6-inch cut intervals
• Flexible linked construction
• IP65 protection rating
• UV resistant
• 3M adhesive mounting
• 50,000-hour L80 rating
• 5-year manufacturer warranty
• Designed for professional channel letters and sign cabinets

Adjustable White — 2700K to 9000K

The standout feature of LumiLink Tunable White is its ability to produce a broad range of white color temperatures from a single lighting system.

2700K produces a warm, inviting white appearance similar to traditional warm architectural lighting.

Moving toward the middle of the range produces increasingly neutral white illumination.

At the upper end, 9000K produces a very cool, crisp white appearance.

This gives sign shops significantly more control over the finished appearance than a conventional fixed-color-temperature LED system.

Ideal Applications

LumiLink Tunable White is an excellent choice for:

• Channel letters
• Sign cabinets
• Illuminated logos
• Architectural signage
• Retail signage
• Specialty fabricated signs
• Shallow illuminated signs
• Complex letters and shapes
• Sign retrofits
• Applications where adjustable white color temperature is desired

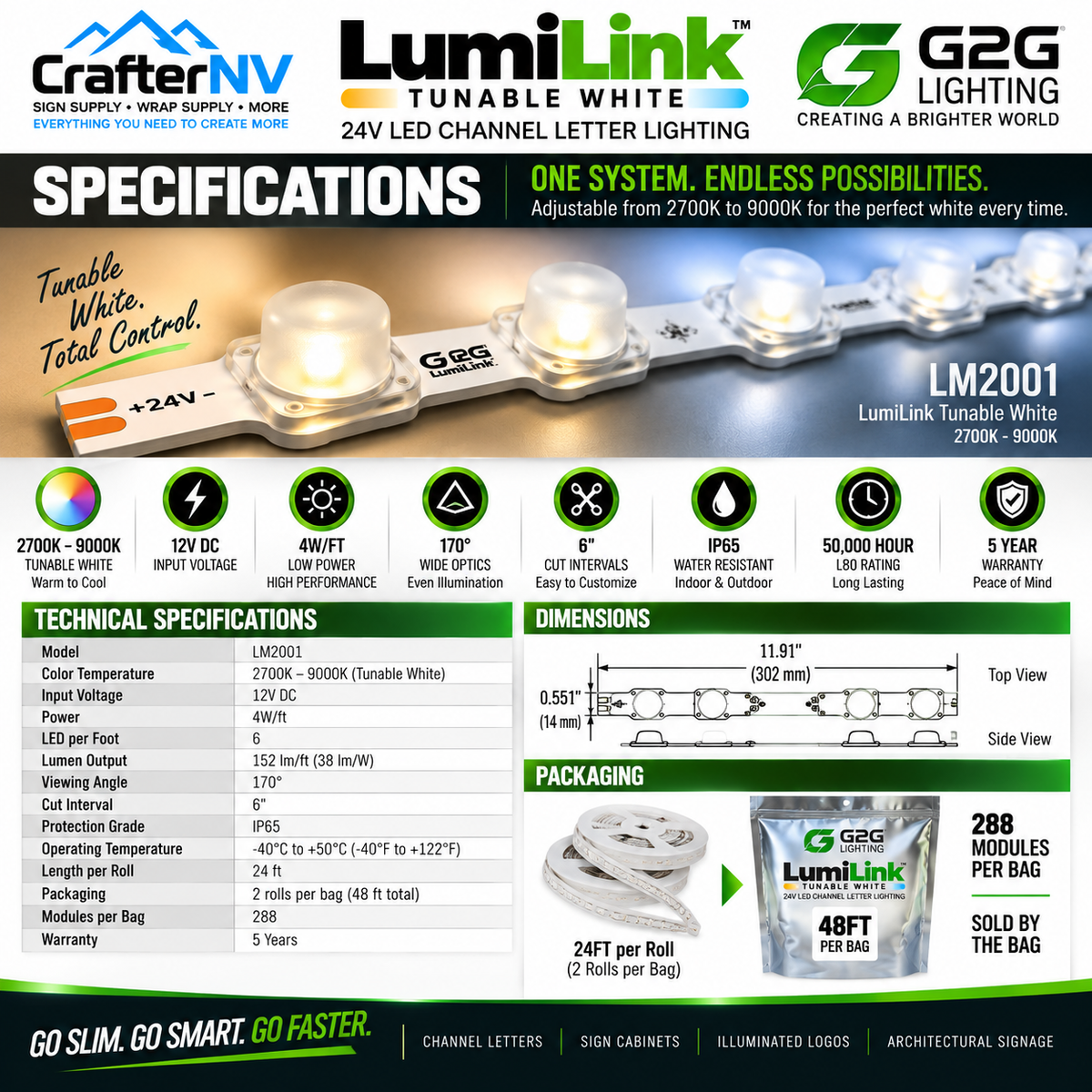

Technical Specifications

These specifications are confirmed on G2G's current LumiLink Series sheet.

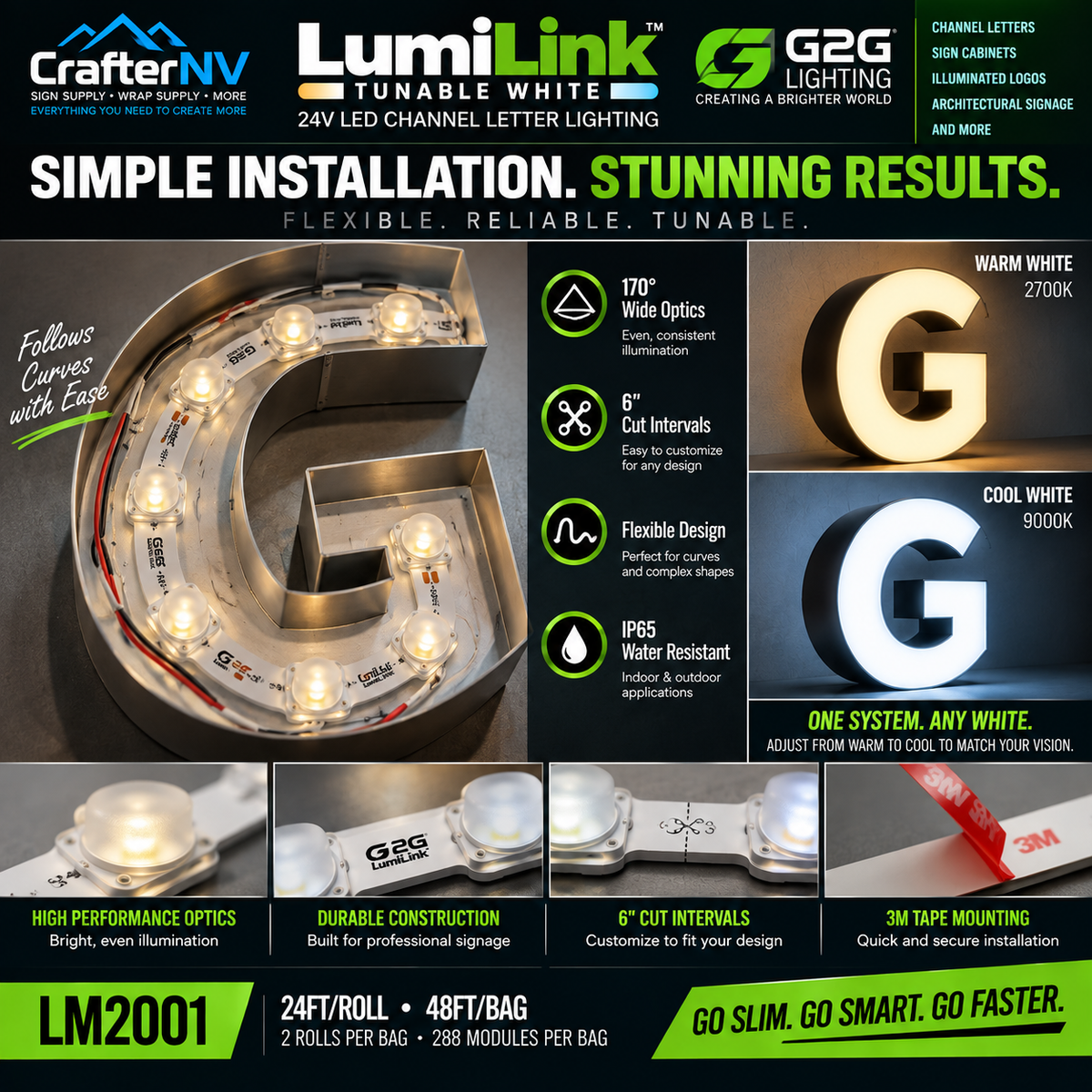

Compact Flexible Design

LumiLink Tunable White combines high-density illumination with a slim, flexible construction that can follow curves, corners, and complex letter shapes.

The manufacturer's dimensional drawing shows approximately:

11.91" × 0.551" for the illustrated six-module section.

Packaging

Each bag contains:

48 total feet
2 × 24 ft rolls
288 modules per bag
6 LEDs/modules per foot

Compatible LumiLink Tunable White Accessories

These are the three highlighted Tunable White accessories from your price sheet, so these are the only accessories I would put on this product:

LMA1003 – LumiLink Tunable White Power Pin (18")
Provides the power connection for the LumiLink Tunable White lighting system.

Package: 10 sets per bag
Sold by: Bag

LMA2004 – LumiLink Tunable White Jumper Pin (6")
Provides a 6-inch flexible connection between separate LumiLink Tunable White sections.

Package: 10 sets per bag
Sold by: Bag

LMA2005 – LumiLink Tunable White Jumper Pin (18")
Provides an 18-inch flexible connection for larger gaps and transitions between LumiLink Tunable White sections.

Package: 10 sets per bag
Sold by: Bag

Accessories sold separately.

Power & Control Requirements

LumiLink Tunable White operates on 12VDC and requires a compatible 12V power system.

Because the product uses adjustable white color temperature, the installation also requires an appropriate tunable-white control method to adjust the output between 2700K and 9000K.

At 4 watts per foot, a complete 48-ft bag represents approximately 192 watts of connected LED load if all material is installed. Power supplies should be sized according to the actual installed footage and G2G's loading requirements.
