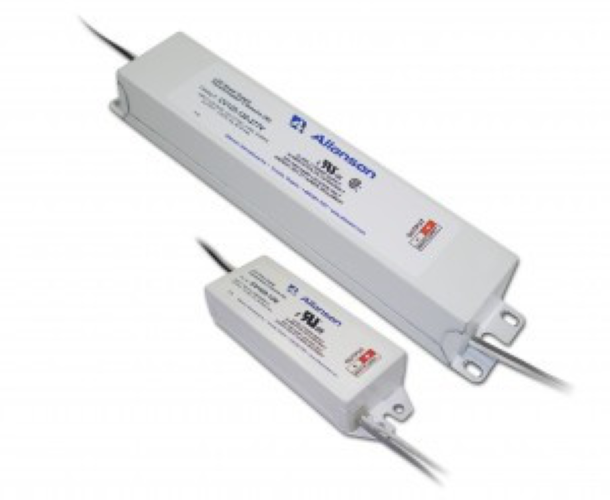

Two white Allanson electronic power modules with attached cables, shown on a plain white background.

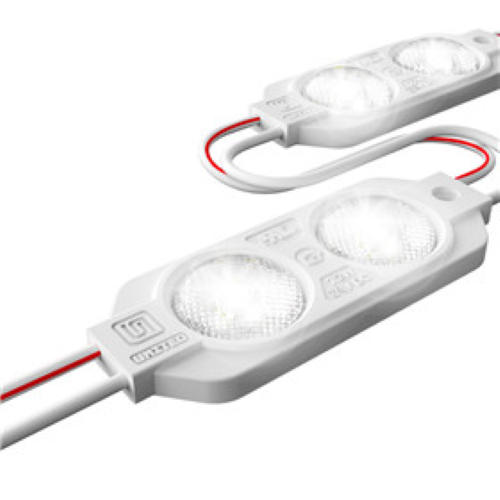

Two white LED light strips with two circular lenses each, connected by a curved cable with red and white wires, shown on a plain white background.

G2G United II 12V LED Module Kit combines a full bag of G2G United II white LED modules with an Allanson 60W 12V LED power supply, providing a convenient lighting package for professional channel letters and illuminated sign applications.

The kit includes 70 G2G United II UN1001 LED modules operating at 12VDC and 0.8 watts per module. The bright 7100K Sign White output provides clean, crisp illumination for channel letters, cabinet signs, and other internally illuminated signage.

United II modules feature wide-angle light distribution designed to provide smooth, uniform coverage across the sign face while helping reduce visible hot spots.

The included Allanson 60W LED power supply provides 12VDC constant-voltage output with a universal 120–277VAC input, giving sign shops a matched module and power supply package in one convenient kit.

Kit Includes

G2G United II UN1001 LED Modules

  • 70 modules per bag
  • 7100K Sign White
  • 12VDC
  • 0.8W per module
  • Designed for channel letters and illuminated signage
  • Wide-angle light distribution
  • Professional sign-grade LED system

Allanson 60W LED Power Supply

  • Model: ACVN125-120-277V / ALPS1260
  • 60W maximum output
  • 12VDC output
  • 5.0A output
  • 120–277VAC input
  • 50/60Hz
  • Constant-voltage output
  • UL Class 2
  • Class P
  • Suitable for dry and damp locations
  • Short-circuit protection
  • Over-current protection
  • Over-voltage protection
  • Over-temperature protection

Key Features & Benefits

  • Complete LED module and power supply kit
  • 70 G2G United II LED modules included
  • Allanson 60W 12V power supply included
  • Bright 7100K Sign White illumination
  • Energy-efficient 0.8W LED modules
  • 12VDC LED system
  • Wide light distribution for uniform illumination
  • Helps minimize visible hot spots
  • Ideal for professional sign shops and installers
  • Suitable for new signs and LED retrofit projects

Common Applications

  • Channel letters
  • Illuminated sign cabinets
  • Box signs
  • Retail signage
  • Commercial illuminated signs
  • LED sign retrofits
  • New sign construction

Power Information

The 70 included United II modules have a combined nominal load of 56 watts based on 0.8 watts per module.

The kit includes a 60W Allanson 12VDC constant-voltage power supply.

Always follow manufacturer installation and loading requirements when designing and installing the LED system.
