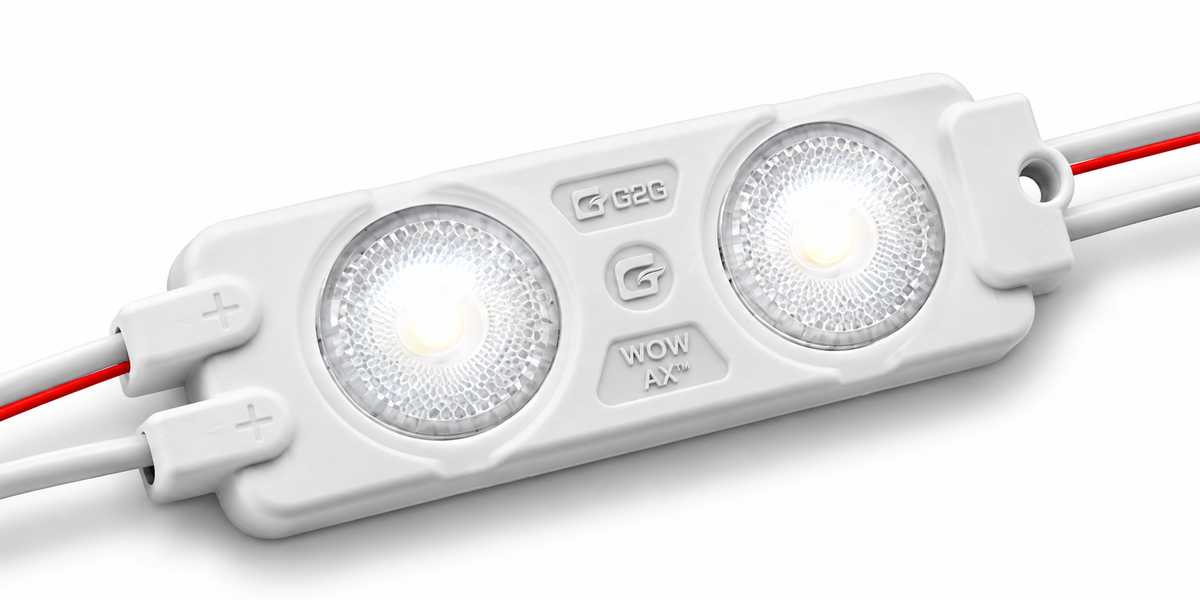

A white rectangular LED light bar with two illuminated circular LED lenses, red and white wires extending from the sides, and printed markings including 'G26' and 'WOW'.
A large illuminated marquee letter A made from white LED channel letters, shown on a dark studio background with promotional text and icons. The image includes the CrafterNV branding and G2G Lighting branding, along with feature callouts such as 3-inch shallow channel letter depth and 115 LEDs per module.
CrafterNV WOW AX LED Modules package display showing a white LED light bar product, a silver pouch of 40 modules, a brown shipping box, and blue informational callouts on a reflective studio background.
CrafTERRy WOW AX G2.2G LED modules M1701, 7100K Sign White, 12V DC, featuring technical specifications, dimensions, light distribution, and installation details.

G2G WOW AX M1701 LED Modules are high-output, constant-current LED modules engineered specifically for shallow channel letters and tight sign cabinets. With a compact profile and wide 170° optics, WOW AX delivers bright, uniform illumination in applications where traditional LED modules can struggle with limited depth.

Designed to perform in channel letters as shallow as 3 inches deep, WOW AX can provide excellent sign-face coverage using only 2 modules per foot in many shallow-letter applications.

The M1701 produces bright 7100K Sign White illumination with approximately 115 lumens per module and 230 lumens per foot. Each module operates on 12VDC and consumes approximately 0.72 watts, providing strong light output while maintaining excellent energy efficiency.

Constant-current technology helps maintain stable, consistent module performance, while the wide 170° optical design distributes light across the sign face to help reduce hot spots and shadows.

Designed for Shallow Channel Letters

WOW AX is specifically engineered for small channel letters and installations where clearance between the LEDs and sign face is limited.

G2G's module population guidance recommends:

Channel Letter Depth Modules Per Foot Multiple Row Spacing Clearance
3" 2 4" 2"
4" 1.5 6" 3"
5"–6" 1.5 10" 5"
7"–10" 1.5 12" 5"

This makes WOW AX particularly attractive for 3-inch shallow channel letters, where efficient light distribution in a confined space is critical.

Key Features & Benefits

  • Designed for shallow-depth channel letters
  • Excellent solution for 3" deep letters
  • 7100K Sign White
  • 12VDC operation
  • Constant-current LED technology
  • Approximately 115 lumens per module
  • Approximately 230 lumens per foot
  • 0.72W nominal power per module
  • 1.44W per foot at 2 modules/ft
  • Wide 170° optics
  • Only 2 modules per foot recommended for 3" letters
  • IP67 water-resistant construction
  • UV and IR protected
  • L80 50,000-hour rating
  • 3M double-sided mounting tape
  • Mechanical mounting option
  • Compact module design for tight spaces
  • 80 modules per bag
  • Designed for professional sign fabrication and installation

Technical Specifications

Specification M1701
Manufacturer G2G Lighting
Series WOW AX
Product Type LED Channel Letter Module
Color White
Color Temperature 7100K
Input Voltage 12VDC
Nominal Wattage 0.72W/module
Power at 2 Modules/Ft 1.44W/ft
Lumens 115 lm/module
Lumens Per Foot 230 lm/ft
Viewing Angle 170°
Modules Per Foot 2 for 3" letters
Protection Rating IP67
Rated Life L80 50,000 hours
Operating Temperature -40°F to +140°F
Module Length Approx. 1.9"
Module Width Approx. 0.62"
Modules Per Chain 40
Modules Per Bag 80
Mounting 3M tape or mechanical
Warranty 7-Year Product / 5-Year Labor

The dimensions, temperature range, packaging and warranty above are taken directly from the G2G specification sheet.

Common Applications

  • 3" shallow channel letters
  • Small channel letters
  • Tight-depth channel letters
  • Face-lit channel letters
  • Illuminated sign cabinets
  • Retail storefront signage
  • Commercial illuminated signs
  • LED sign retrofits
  • New channel-letter construction
  • Applications requiring high output in limited space

Power Supply Requirements

WOW AX M1701 modules operate on 12VDC and require a compatible 12V constant-voltage LED power supply, sold separately.

Always size the power supply according to the number of modules installed and follow G2G's recommended electrical loading and installation requirements.

Package Quantity

Option values:

  • 1 Bag – 80 Modules
  • 10 Bags – 800 Modules (Full Case)

Each bag contains:

80 WOW AX LED modules
2 chains of 40 modules

At the 2 modules-per-foot population used for 3" shallow letters, one 80-module bag provides enough modules for approximately 40 linear feet of installation.
