Heyco Snap In Bushing #2053 3/8"

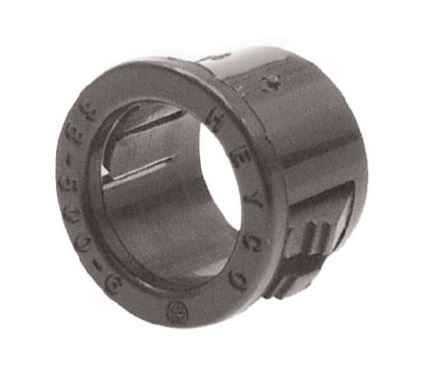

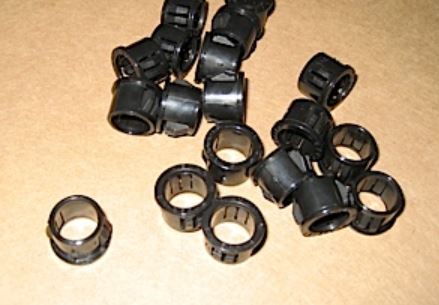

Heyco Snap-In Bushing 3/8" I.D. – HSB2053 (Heyco #2053 / SB500-6)
Item Number: HSB2053
Manufacturer Item Number: 2053 / SB5006
Manufacturer: HW ECKHARDT (Heyco)
Protect your cables and tubing with the trusted performance of the Heyco Snap-In Bushing HSB2053. Designed for a 0.5" mounting hole diameter, this 3/8" inside diameter bushing effectively converts sharp, raw-edged holes into smooth, insulated openings—ideal for safeguarding electrical wiring, telecommunications lines, tubing, hose, rope, and utility cables.
Key Features:
-
Protective Functionality: Insulates and mechanically protects conductors from abrasion, vibration, and edge damage.
-
Simple Installation: Locking fingers snap into place with fingertip pressure—no tools required.
-
Versatile Fit: Accommodates fractional panel thickness increments up to the max rating.
-
Reliable Strength: Withstands up to 35 lbs of push back force, ensuring a secure fit.
-
Durable Material: Made from Nylon 6/6 for strength and chemical resistance.
-
Certified Quality: UL Recognized (File E15331) and CSA Certified (File 8919).
-
Flame Retardant: Rated UL 94V-2 for flammability resistance.
-
Operating Temperature: Performs in extreme conditions from -0.4°F to 221°F (-18°C to 105°C).

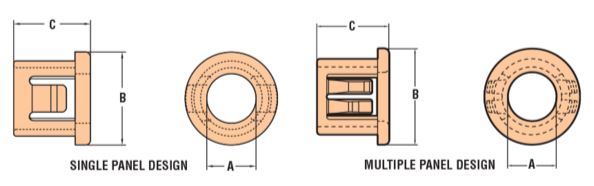

Technical Specifications:
-
Mounting Hole Diameter: 0.5" (12.7 mm)
-
Inside Diameter: 0.39" (9.9 mm)
-
Overall Height: 0.57" (14.5 mm)
-
Overall Length: 0.41" (10.3 mm)
Common Applications:
Perfect for panel building, electrical enclosures, telecommunications cabinets, and general cable routing where safety and durability are paramount.
Ensure clean, secure, and professional cable installations with the Heyco Snap-In Bushing HSB2053.
