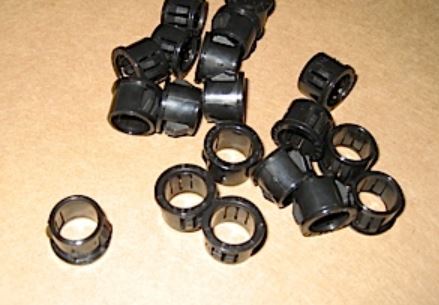

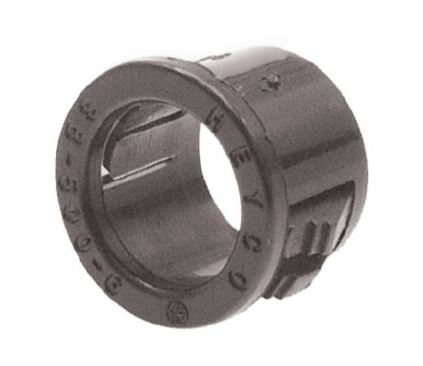

Heyco Snap In Bushing #2123 5/8"
Heyco Snap-In Bushing 5/8" I.D. – HSB2123 (Heyco #2123 / SB 875-10)
Item Number: HSB2123
Manufacturer Item Number: 2123 (10,000/bx)
Manufacturer: HW ECKHARDT (Heyco)
The Heyco Snap-In Bushing HSB2123 is engineered to convert sharp, unfinished panel holes into smooth, insulated openings that protect sensitive cables and tubing from abrasion and strain. With a 5/8" inside diameter and designed for a 0.875" mounting hole, this high-performance bushing is ideal for insulating and mechanically protecting electrical wires, telecom lines, tubing, hose, rope, and other utility lines in panels or enclosures.
Key Features:
-
Smooth & Safe Cable Routing: Converts raw-edged holes into neat, insulated entries to reduce wear and tear.
-
Quick Snap-In Design: Flexible locking fingers allow for easy, tool-free installation with fingertip pressure.
-
Strong Retention: Designed to resist push back forces up to 35 lbs for a secure fit.
-
Wide Panel Compatibility: Locking fingers adjust in fractional increments up to the maximum panel thickness.
-
Durable Construction: Made from Nylon 6/6, providing excellent chemical resistance and toughness.
-
Industry Certifications: UL Recognized (File E15331) and CSA Certified (File 8919).
-
Flame Retardant & Heat Resistant: UL 94V-2 flammability rating and operational from -0.4°F to 221°F (-18°C to 105°C).

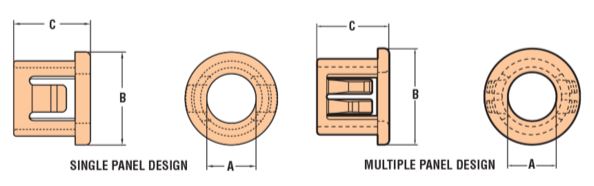

Technical Specifications:
-
Mounting Hole Diameter: 0.875" (22.2 mm)
-
Inside Diameter: 0.63" (15.9 mm)
-
Overall Height: 0.95" (24.2 mm)
-
Overall Length: 0.45" (11.5 mm)
Common Applications:
Perfect for use in electrical panels, telecommunications equipment, control boxes, industrial enclosures, and anywhere safe cable pass-through is required.
Enhance protection and simplify cable management with the Heyco Snap-In Bushing HSB2123—the reliable solution for professional-grade cable insulation and strain relief.
