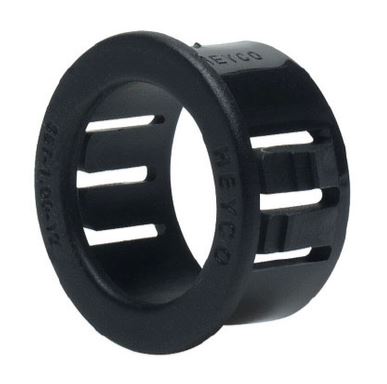

Heyco Nylon Thick Panel Bushing SBT875-11 Black 7/8" – HSB3104 (Heyco #3104)
Item Number: HSB3104
Manufacturer Item Number: 3104
Manufacturer: HW ECKHARDT (Heyco)

The Heyco SBT875-11 Thick Panel Bushing is a robust solution for routing and protecting cables through panels up to 1/4" thick. Designed for a 7/8" (0.875") mounting hole, this durable black nylon bushing is ideal for converting raw-edged holes into smooth, insulated openings—offering superior protection for electrical wires, telecom cables, tubing, hose, and utility lines.

Key Features:

• Thick Panel Compatible: Specifically engineered for panels up to 0.25" thick.

• Clean, Insulated Pass-Through: Smooths out sharp-edged holes to prevent abrasion and damage.

• Quick Snap-In Installation: Locking fingers securely snap into place with fingertip pressure.

• Superior Retention: Holds firm under push back forces exceeding 35 lbs, even in thicker panels.

• Versatile Fit: Locking fingers adjust incrementally to fit a range of panel thicknesses.

• Durable Material: Constructed from high-strength Nylon 6/6, known for its toughness and resistance to wear.

• Certified for Safety: UL Recognized (File E15331) and CSA Certified (File 8919).

• Flame & Heat Resistant: Rated UL 94V-2 and performs in temperatures from -0.4°F to 221°F (-18°C to 105°C).

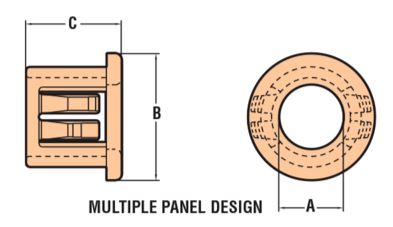

Technical Specifications:

• Mounting Hole Diameter: 0.875" (22.2 mm)

• Inside Diameter: 0.69" (17.5 mm)

• Head Diameter: 0.95" (24.2 mm)

• Overall Height: 0.56" (14.3 mm)

Common Applications:
Ideal for use in industrial control panels, electrical enclosures, telecommunication cabinets, and heavy-duty equipment requiring secure cable pass-through in thicker metal or plastic panels.

Trust the Heyco Nylon Thick Panel Bushing HSB3104 for rugged, reliable cable protection and panel insulation in demanding environments.
