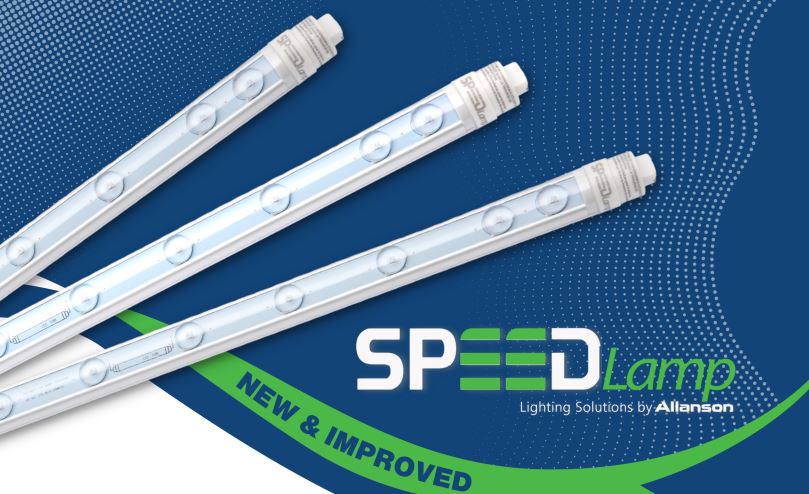

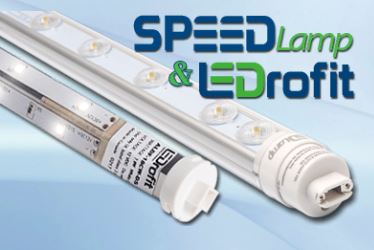

Allanson Speed Lamps 60"
Allanson SpeedLamp LED Retrofit 60" DS ASPL-60CW-DSMV – The Industry’s Most Trusted LED Retrofit Solution
Leading sign shops know that SpeedLamp by Allanson is the only trusted LED retrofit solution for sign cabinet illumination. Designed for quick and effortless installation, the Allanson SpeedLamp LED Retrofit 60" DS ASPL-60CW-DSMV offers exceptional brightness, energy efficiency, and long-lasting durability, making it the ideal replacement for T12 HO fluorescent lamps.
With an IP65 rating and 120V direct connection, this high-performance LED retrofit delivers 50% energy savings, significantly cutting down operational costs while providing bright, uniform illumination. Its sealed rotatable end caps and 50,000-hour lifetime rating minimize maintenance needs, saving you time and money.
Key Features & Benefits:
- Sealed Rotatable Ends – Designed for easy installation and long-lasting durability.
- IP65 Rating – Weatherproof for both indoor and outdoor applications.
- Highest Lumen Output – Ensures bright, even illumination.

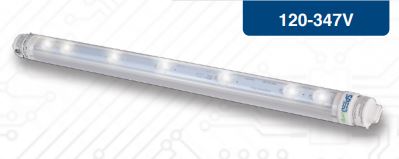

- Built-In Drivers – Supports 120V–347V input, eliminating external driver requirements.
- 360° Beam Angle – Provides optimal light distribution for superior visibility.
- 50% Energy Savings vs. HO Lamps – Cuts energy consumption significantly.
- Optically Clear Lens – Enhances brightness and light clarity.
- 50,000-Hour Lifetime Rating – Extends service life and minimizes maintenance needs.
- 6500K Color Temperature – Produces crisp, daylight-quality white light.
- UL Certified – Meets the highest safety and performance standards.
- Single Molded Polycarbonate Housing – Built for impact resistance and longevity.
- Enclosed Heat Sink – Optimized for superior thermal efficiency and performance.
- Single Molded R17d Ends – Ensures secure and simple retrofit installation.
- Individually Packaged – Provides extra protection during transit and storage.
- Operating Temperature: -30°C to 55°C – Performs reliably in extreme climates.
- Industry-Leading Warranty – Confidence in long-term quality and performance.
Installation Guidelines & Spacing Recommendations
For T12 HO fluorescent retrofit applications, SpeedLamp is designed for one-for-one replacement, utilizing existing T12 sockets for a seamless transition.
In new sign cabinet builds:
- Position the first and last SpeedLamp no more than 6” from the inside side wall.
- Maintain 12” spacing between lamps for optimal brightness and uniform lighting.
- Keep a minimum 6” distance from the SpeedLamp to the sign face to prevent hotspots.
* IMPORTANT INSTALLATION WARNING
There should be NO power to the lampholders at any time during installation! Always ensure power is completely disconnected before beginning installation.
Upgrade to the Allanson SpeedLamp LED Retrofit 60” DS ASPL-60CW-DSMV Today!
Experience superior illumination, reduced energy costs, and long-lasting performance with the Allanson SpeedLamp LED Retrofit – the preferred choice for sign cabinet retrofits.
