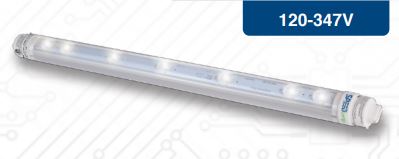

Allanson Speed Lamps 64"
Allanson SpeedLamp LED Retrofit 64" DS ASPL-64CW-DSMV – The Most Trusted LED Retrofit Solution
Leading sign shops know that SpeedLamp by Allanson is the only trusted LED retrofit solution for sign cabinet illumination. Engineered for quick and effortless installation, the Allanson SpeedLamp LED Retrofit 64" DS ASPL-64CW-DSMV provides exceptional brightness, superior energy efficiency, and long-lasting durability, making it the ideal replacement for T12 HO fluorescent lamps.
With an IP65 rating and 120V direct connection, this high-performance LED retrofit delivers 50% energy savings, significantly reducing operational costs while maintaining bright, uniform illumination. Sealed rotatable end caps and a 50,000-hour lifetime rating minimize maintenance needs, saving you time and money on service calls.
Key Features & Benefits:
- Sealed Rotatable Ends – Ensures easy installation and superior durability.
- IP65 Rating – Weatherproof design for both indoor and outdoor applications.
- Highest Lumen Output – Provides bright, uniform lighting.
- Built-In Drivers – Supports 120V–347V input, eliminating external driver requirements.
- 360° Beam Angle – Maximizes light distribution for superior visibility.
- 50% Energy Savings vs. HO Lamps – Significantly reduces energy consumption.
- Optically Clear Lens – Enhances brightness and clarity.
- 50,000-Hour Lifetime Rating – Extends service life and minimizes maintenance.
- 6500K Color Temperature – Produces crisp, daylight-quality white light.
- UL Certified – Meets the highest safety and performance standards.
- Single Molded Polycarbonate Housing – Built for impact resistance and longevity.
- Enclosed Heat Sink – Optimized for thermal efficiency and long-lasting performance.
- Single Molded R17d Ends – Ensures secure and simple retrofit installation.
- Individually Packaged – Provides extra protection during shipping and storage.
- Operating Temperature: -30°C to 55°C – Reliable performance in extreme climates.
- Industry-Leading Warranty – Confidence in quality and long-term durability.
Installation Guidelines & Spacing Recommendations
For T12 HO fluorescent retrofit applications, SpeedLamp is designed for one-for-one replacement, utilizing existing T12 sockets for a seamless transition.
In new sign cabinet builds:
- Position the first and last SpeedLamp no more than 6” from the inside side wall.
- Maintain 12” spacing between lamps for optimal brightness and coverage.
- Keep a minimum 6” distance from the SpeedLamp to the sign face to prevent hotspots.
* IMPORTANT INSTALLATION WARNING
There should be NO power to the lampholders at any time during installation! Always ensure power is completely disconnected before beginning installation.
Upgrade to the Allanson SpeedLamp LED Retrofit 64” DS ASPL-64CW-DSMV Today!
Experience bright, energy-efficient lighting, reduced maintenance costs, and long-lasting performance with the Allanson SpeedLamp LED Retrofit – the top choice for sign cabinet retrofits.
